Pile Echo Tester

Name: Pile Echo Tester
Brand: SUBITEK
Price: 150000.0 INR
Availability: InStock

Price 150000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Pile Echo Tester Specification

Max Height
80m (pile length)

Equipment Type
Non-Destructive Testing Analyzer

Humidity
<85% RH

Hardness
N/A (Not applicable for echo testing)

Measuring Range
0 80m

Specimen Size
Diameter: 150mm 2000mm

Gas Pressure
Ambient

Display Type
High-contrast LCD

Temperature
-10C ~ +50C

Application
Pile Integrity Testing, Foundation Quality Assessment

Resolution
24-bit ADC

Number of Specimens
Multiple (Batch Analysis Supported)

Response Time
<1 second

Interface Type
USB, Optional Wi-Fi

Test Range
Up to 80m pile length

Features
Integrated analysis software, Data storage, Portable design

Mounting Type
Handheld

Port Size
Standard USB

Operating Voltage
12VDC

Automation Grade
Semi-Automatic

Accuracy
1% (standard)

Power Supply
Rechargeable Lithium Battery, AC 220V

Frequency
Sampling Frequency: 48kHz

Usage
Pile dynamic response and echo test

Capacity
Single/Multiple piles

Machine Weight
1.8 kg

Test Speed
Real-time measurement

Test Width
40-1200mm

Test Stroke
Up to 450mm

Control Mode
Automatic / Manual

Data Storage
Built-in memory up to 8GB

Calibration Method
Automatic/Manual

Operating Time
Up to 8 hours continuous

Peak Force
Up to 1kN (Impact)

Sensor Type
Piezoelectric Transducer

Dimensions
260 x 120 x 60 mm

Protection Grade
IP54

Software Compatibility
Windows-based analysis

Battery Type
Rechargeable Lithium-ion

Signal Output
Digital/Analog output

Pile Echo Tester Trade Information

Minimum Order Quantity
1 Piece

FOB Port
COIMBATORE

Payment Terms
Cash Advance (CA), Cash in Advance (CID)

Supply Ability
1 Piece Per Day

Delivery Time
1 Days

Sample Available
No

Packaging Details
COTTON BOX

Main Export Market(s)
Asia, Africa

Main Domestic Market
South India, Central India, West India, North India, East India, Kerala, Himachal Pradesh, Nagaland, All India, Gujarat, Karnataka, Manipur, Andhra Pradesh, Bihar, Chandigarh, Goa, Jammu and Kashmir, Madhya Pradesh, Tamil Nadu, Rajasthan, Sikkim, Telangana, Pondicherry, Uttar Pradesh, Uttarakhand, West Bengal, Lakshadweep, Mizoram, Meghalaya, Daman and Diu, Jharkhand, Odisha, Punjab, Assam, Delhi, Dadra and Nagar Haveli, Andaman and Nicobar Islands, Arunachal Pradesh, Chhattisgarh, Haryana, Maharashtra, Tripura

About Pile Echo Tester

Specification:

The PET (Pile Echo Tester) uses the Pulse-Echo method (PEM) for quick pile integrity test (quality control) of a large number of piles.

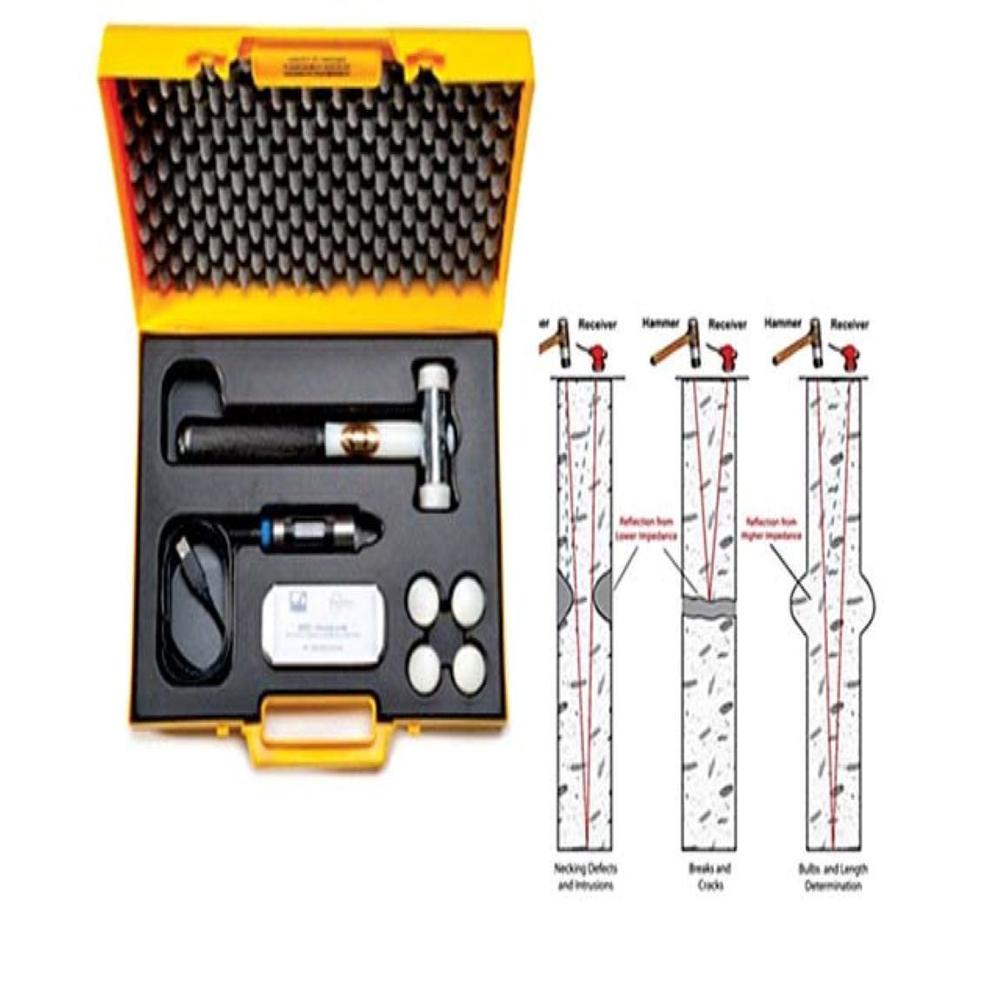

The pile top is struck with a lightweight handheld hammer. The reflected wave is captured and analyzed by the PET's digital accelerometer to provide information regarding the length and shape of the pile. [ Overview of this test method ]
The PET is fully compliant to ASTM D5882-16: Standard Test Method for Low Strain Impact Integrity Testing of Deep Foundations for pile integrity testing as well as additional standards
PET hardware connects to any portable PCs. The Bluetooth version also connects to any Android device (phone, tablet)
The PET package includes all software versions: for PC and for Android. All versions are included and operate in full compatibility.

Advanced Non-Destructive Testing Technology

The Pile Echo Tester utilizes sophisticated piezoelectric transducer technology to deliver precise and reliable assessments of pile integrity. It supports both manual and automatic calibration, facilitating ease of use in diverse field conditions. Real-time measurements, high-resolution data capture, and compatibility with Windows-based analysis software ensure comprehensive reporting and quality control.

Portable and User-Friendly Design

Engineered for convenience, the tester features a compact, handheld build for easy on-site operation. Its high-contrast LCD display, intuitive controls, and rechargeable lithium-ion battery (up to 8 hours) make it ideal for extended fieldwork. Optional Wi-Fi and USB interface streamline data transfer and integration into your workflow.

FAQ's of Pile Echo Tester:

Q: How does the Pile Echo Tester perform pile integrity and foundation quality assessments?

A: The tester uses a piezoelectric transducer to send and receive signals through the pile. By analyzing the echo patterns, the device assesses pile integrity, length, and detects potential flaws or discontinuities, providing reliable data for foundation assessment.

Q: What is the recommended process for setting up and calibrating the Pile Echo Tester?

A: Setup involves connecting the sensor, powering the device using a 12VDC supply or its rechargeable battery, and initiating either the automatic or manual calibration process. The intuitive interface and guidance within the integrated software ensure accurate calibration prior to testing.

Q: When should I use the batch analysis feature of this tester?

A: Batch analysis is ideal for projects involving multiple piles, enabling you to test, record, and analyze data for several specimens in a single session. This feature saves time and ensures consistency across larger foundation inspections.

Q: Where can the Pile Echo Tester be effectively deployed?

A: The tester is designed for a variety of field environments, thanks to its IP54 protection grade. It operates efficiently in temperatures from -10C to +50C and humidity levels below 85% RH, making it suitable for most construction sites in India.

Q: What are the main benefits of using the built-in data storage and integrated software?

A: With up to 8GB of built-in memory and advanced software compatible with Windows, the tester allows extensive data collection, real-time analysis, and easy export to your office PC. This supports detailed reporting and informed decision-making for pile integrity projects.

Q: How long can the device operate continuously, and what are the power supply options?

A: The Pile Echo Tester runs up to 8 hours on a single rechargeable lithium-ion battery cycle. Alternatively, it can be powered via AC 220V for uninterrupted testing during longer sessions.

Q: What usage precautions should be considered for optimal accuracy and safety?

A: To ensure accurate and safe operation, always conduct calibration before testing, keep the device dry and clean (IP54 protected), use only certified accessories, and charge the lithium-ion battery as recommended. Avoid operating outside the specified temperature and humidity range.
