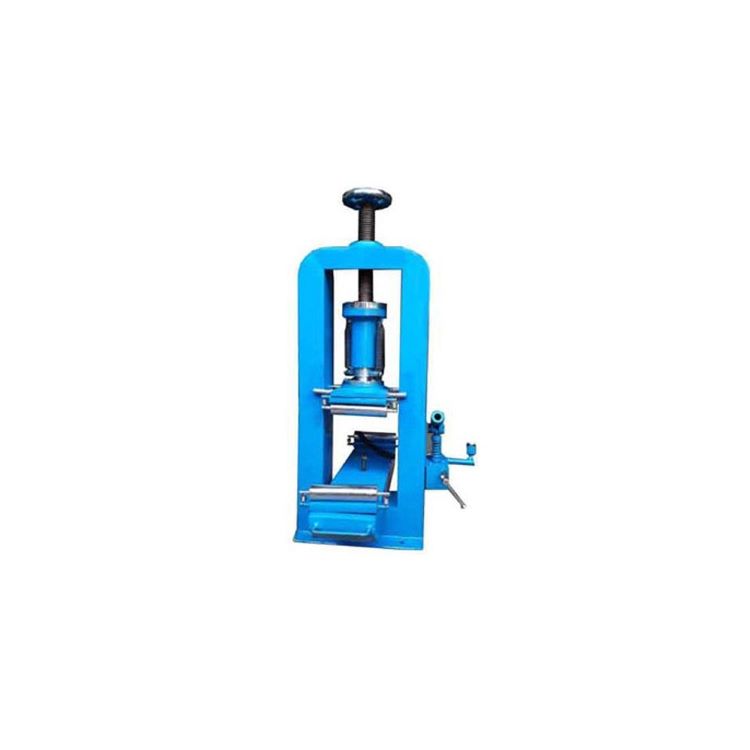

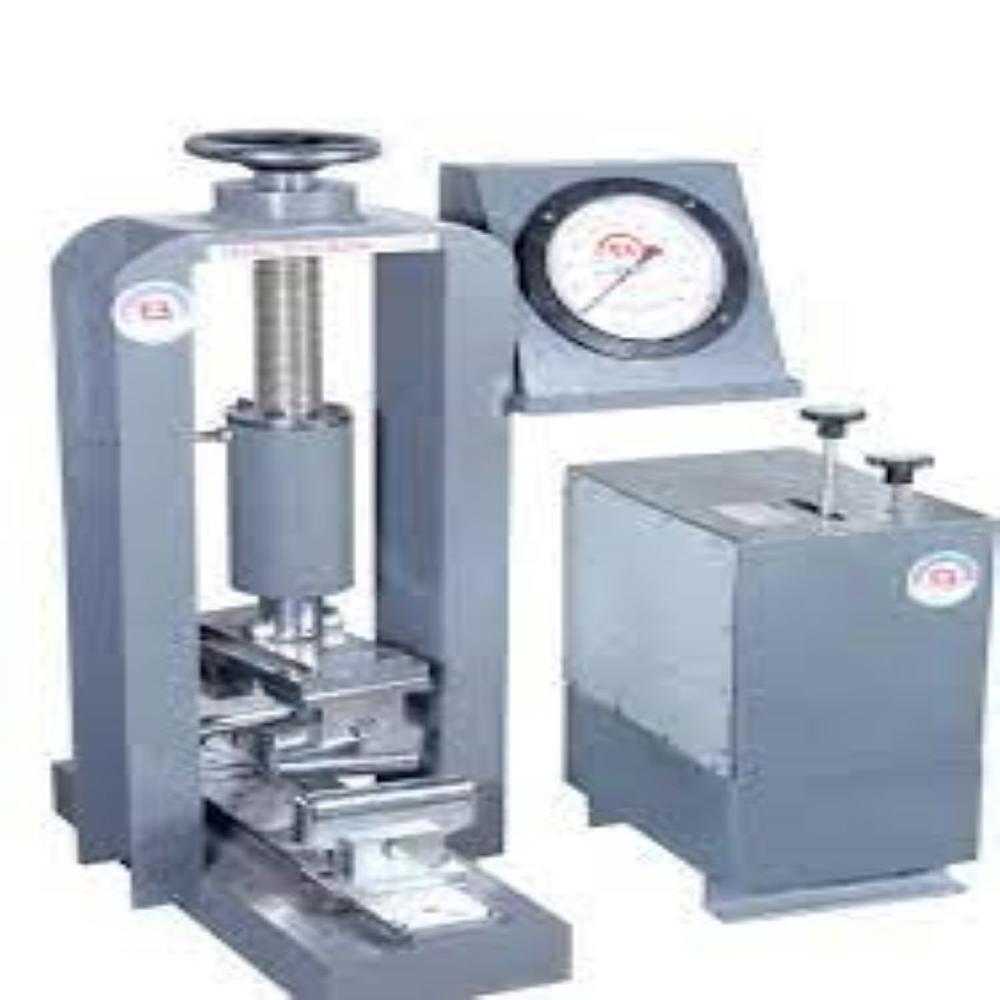

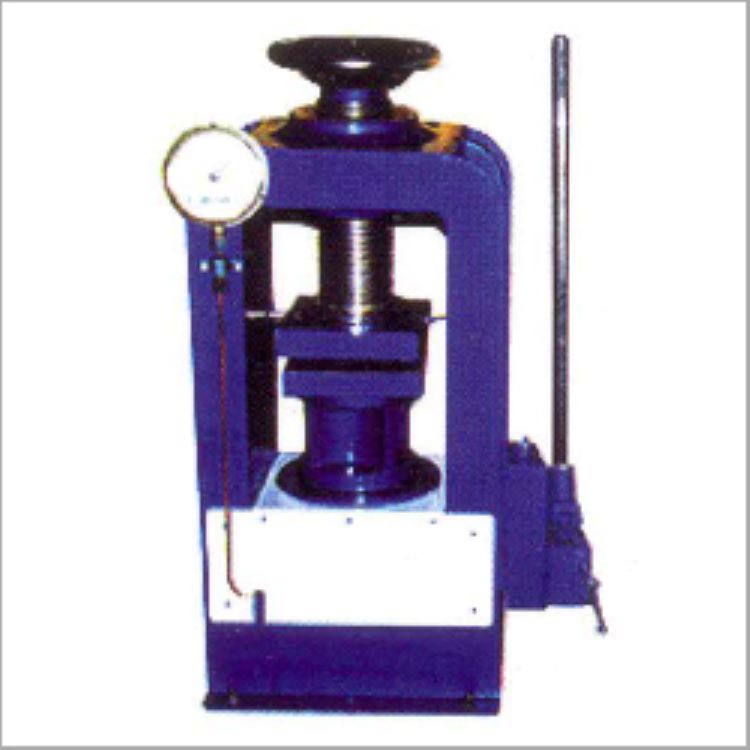

Flexure Testing Machine - Hand Operated

About Flexure Testing Machine - Hand Operated

Specification:

Capacity: 100 and 250 kN

Flexure Testing Machines have been designed to meet the need for reliable and consistent testing of flexural test on standard concrete beams, transverse test on kerbs and flagstones, indirect tensile tests on concrete and interlocking pavers. It consists of a two pillar load frame with lock nut. The lower platen has two rollers, the distance between which is adjustable. For 150 mm x 150 mm x 700 mm beam, the center distance between the rollers is 600 mm, while it is 400 mm for beams of size 100 mm x 100 mm x 500 mm. The upper platen has also a pair of rollers whose distance is adjustable. It is 200 mm center to center, for 150 mm x 150 mm x 700 mm size beam and 133 mm for 100 mm x 100 mm x 500 mm size beam. Total capacity of the machine is 100 kn. A 200mm dia pressure gauge of 0-100 kn x 0.5 kn least count to indicate load is fixed on the load frame. A hand operated pumping unit attached to the load frame is supplied. Rate of loading is maintained manually while pumping the hydraulic pump with the handle.

The versatile load frame is designed for minimum deflection at maximum load resulting in very high accuracy. The load frame on 2 pillar lock nut type fabrication carrying the ram fitted to the lower base. It has a single acting down stroking ram with over travel switch protection to shut the machine down should maximum ram travel be reached. The return of the ram is done by dead weight to get maximum accuracy on the load measurement. All flexural frames have been designed to accept all the accessories for flexural and transverse tests

Note: Compression platen for compression test should be ordered separately.

Specifications:

Ram Diameter	mm	82
Ram Travel	mm	50
Pressure Gauge Diameter	mm	200
Pressure Gauge	kN	100
Least Count	kN	0.5
Maximum Pressure	Kg./cm	200
Platen Diameter	mm	Nil
Horizontal Clearance	mm	210
Vertical Day Light	mm	160 (adj)
Height of Load Frame	mm	850
Weight of Load Frame	Kg.	150
Lead Screw		Yes
Specimen Size (Can Also Be Tested)
Cube	mm	50, 70.6
Cylinderical	mm	50 x 100
Flexural Test	mm	100 x 100 x 500 150 x 150 x 700

Effortless Manual Operation

Engineered with a simple hand wheel and screw mechanism, this Flexure Testing Machine allows for instant response and fine control during tests. Its manual dial interface makes operation intuitive, while the compact design remains portable enough for on-site or laboratory settings.


Robust Construction and Safety

The body, constructed from high-grade mild steel with critical components in stainless steel, is finished with industrial blue/gray epoxy powder coating for maximum corrosion resistance. Mechanical overload protection ensures safe handling and operation in demanding environments.


Precision Testing and Accessories

Achieve accurate, repeatable results with a test range up to 100 kN and a resolution of 0.1 kN. Key accessories like the base plate, loading rollers, and dial gauge, alongside an official calibration certificate, guarantee ready-to-use reliability for flexural strength assessments of various specimens.
