Longitudinal Compressometer

Name: Longitudinal Compressometer
Brand: SUBITEK
Price: 5000.0 INR
Availability: InStock

Price 5000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Longitudinal Compressometer Specification

Number of Specimens
One at a time

Specimen Size
150 mm diameter x 300 mm height (standard cylinder)

Temperature
0C to 50C (operating environment)

Measuring Range
00.01 mm/m strain

Automation Grade
Manual

Humidity
0-90% RH (operating environment)

Hardness
hardened steel contact points

Accuracy
0.001 mm

Interface Type
Mechanical coupling

Features
Lightweight, portable, easy to assemble, rugged construction

Resolution
0.001 mm

Max Height
Accommodates specimens up to 300 mm

Display Type
Mechanical dial gauge

Application
Determining deformation and strain in cement concrete cylinders

Equipment Type
Longitudinal Compressometer

Response Time
Instantaneous mechanical response

Mounting Type
Clamped on specimen with springs

Test Range
Up to 0.01 mm/m strain

Usage
Measurement of longitudinal strain during compression tests

Capacity
Accommodates 150 mm dia. cylinder

Machine Weight
Approx. 8 kg

Test Speed
Manual operation

Test Width
Suitable for cylinder samples 150 mm diameter

Test Stroke
Up to 5 mm

Control Mode
Mechanical screw arrangement

Finish
Powder-coated/painted for durability

Materials of Construction
Aluminum alloy/stainless steel for corrosion resistance

Dial Gauge Type
0.002 mm least count mechanical dial

Compliance
IS: 516, ASTM C469

Spacer Bars
Provided for gauge length accuracy

Adjustability
Adjustable calibration mechanism

Grip System
Spring loaded clamping mechanism

Packing
Supplied in sturdy carrying case for easy transport

Reading Support
Compatible with digital dial gauge (optional)

Supporting Points
Four fixed points for secure clamping

Gauge Length
200 mm (standard)

Longitudinal Compressometer Trade Information

Minimum Order Quantity
1 Piece

FOB Port
coimbatore

Payment Terms
Cash Advance (CA), Cash in Advance (CID)

Supply Ability
1 Piece Per Day

Delivery Time
1 Days

Sample Available
No

Packaging Details
cotton box

Main Export Market(s)
Asia, Africa

Main Domestic Market
Chandigarh, Daman and Diu, Goa, Jharkhand, Odisha, Punjab, Assam, Delhi, Dadra and Nagar Haveli, All India, Tamil Nadu, Telangana, Tripura, Pondicherry, Uttar Pradesh, South India, Central India, West India, North India, East India, Gujarat, Karnataka, Kerala, Lakshadweep, Mizoram, Meghalaya, Manipur, Andhra Pradesh, Bihar, Andaman and Nicobar Islands, Arunachal Pradesh, Chhattisgarh, Haryana, Himachal Pradesh, Jammu and Kashmir, Madhya Pradesh, Maharashtra, Nagaland, Rajasthan, Sikkim, Uttarakhand, West Bengal

About Longitudinal Compressometer

Specification:

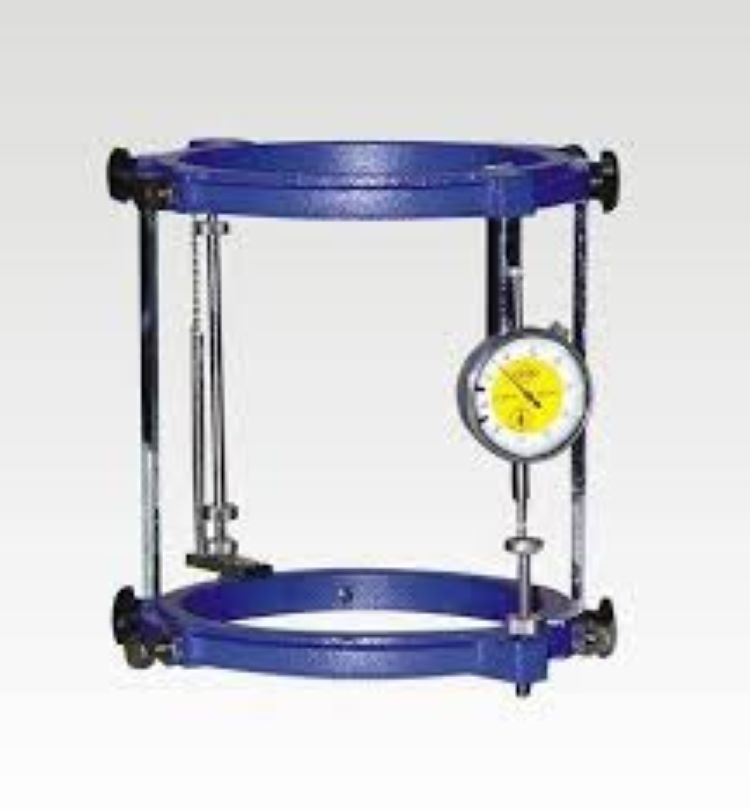

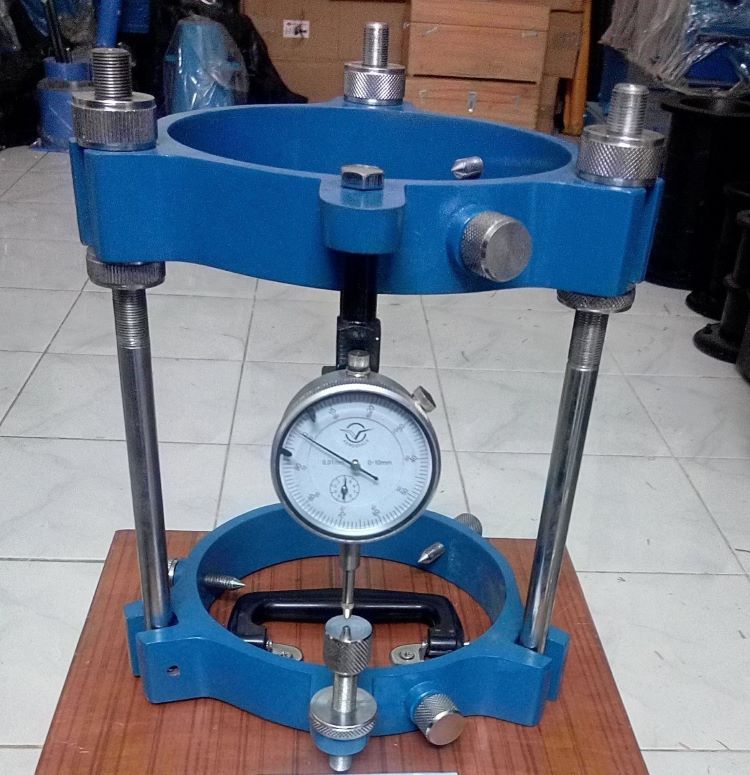

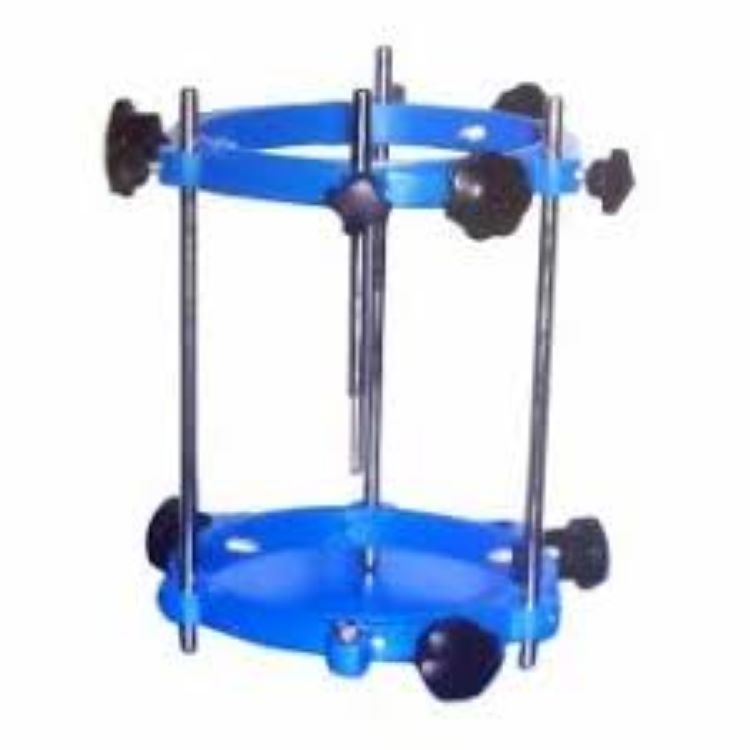

Consists of a frame with a bottom ring and a top ring with tightening screws to firmly clamp the compressometer over the cylinder. A dial gauge .002 mm x 5 mm is mounted on the upper ring and the tie of the dial gauge rests on an anvil. The zero on the dial gauge can be set by adjusting the anvil screw. Supplied in a wooden carrying case.

High-Precision Strain Measurement for Concrete Testing

Engineered for accuracy and reliability, the Longitudinal Compressometer is a trusted tool for assessing longitudinal deformation in concrete compression tests. Its refined mechanical dial gauge ensures instant, precise readings, while durable materials withstand heavy use. Compliance with IS: 516 and ASTM C469 standards makes it suitable for research labs, construction quality control, and educational purposes. The adjustable mechanism and spring-loaded clamping system facilitate fast, secure setup and measurement.

Durable, Portable, and User-Friendly

The instrument's corrosion-resistant construction-aluminum alloy or stainless steel with a powder-coated finish-guarantees longevity. Weighing just 8 kg and accompanied by a rigid carrying case, it's designed for convenient transport between job sites or laboratories. Simple mechanical screw controls, robust spacers for accurate gauge length, and straightforward manual operation make the compressometer accessible for operators with varying experience levels. Its rugged build ensures reliability under various environmental conditions (0-90% RH, 0-50C).

FAQ's of Longitudinal Compressometer:

Q: How is the Longitudinal Compressometer used during a compression test on concrete cylinders?

A: The compressometer is clamped onto a standard concrete cylinder (150 mm diameter x 300 mm height) with its spring-loaded mechanism, using four fixed contact points for secure placement. During the compression test, it measures longitudinal strain as the cylinder is loaded, with precise readings displayed on the mechanical dial gauge.

Q: What gauge length and specimen sizes does the compressometer accommodate?

A: The instrument is configured for a standard gauge length of 200 mm, ensuring compliant strain measurement as per IS: 516 and ASTM C469. It securely mounts on cylinder specimens of 150 mm diameter and up to 300 mm height, accommodating routine concrete testing requirements.

Q: In what environments and conditions can this compressometer be operated?

A: Constructed from corrosion-resistant aluminum alloy or stainless steel, the compressometer operates effectively in environments with humidity ranging from 0-90% RH and temperatures between 0C to 50C, making it suitable for typical laboratory and field conditions in India.

Q: What process ensures accurate gauge length and calibration of the device?

A: Spacer bars are included to set the precise gauge length each time the device is mounted, while an adjustable calibration mechanism allows operators to fine-tune the instrument, ensuring ongoing measurement accuracy throughout repeated use.

Q: What are the main benefits of using this specific compressometer model?

A: This model boasts high accuracy (0.001 mm), fast response, durable construction, and portability. Its compatibility with both mechanical and optional digital dial gauges, easy assembly, and robust carrying case offer versatility and convenience for concrete strain measurement in diverse settings.

Q: Where is the Longitudinal Compressometer typically supplied from and who can source it in India?

A: It is available through a wide network-dealers, distributors, exporters, fabricators, manufacturers, producers, retailers, suppliers, traders, and wholesalers across India, supporting a range of testing and quality assurance needs.
