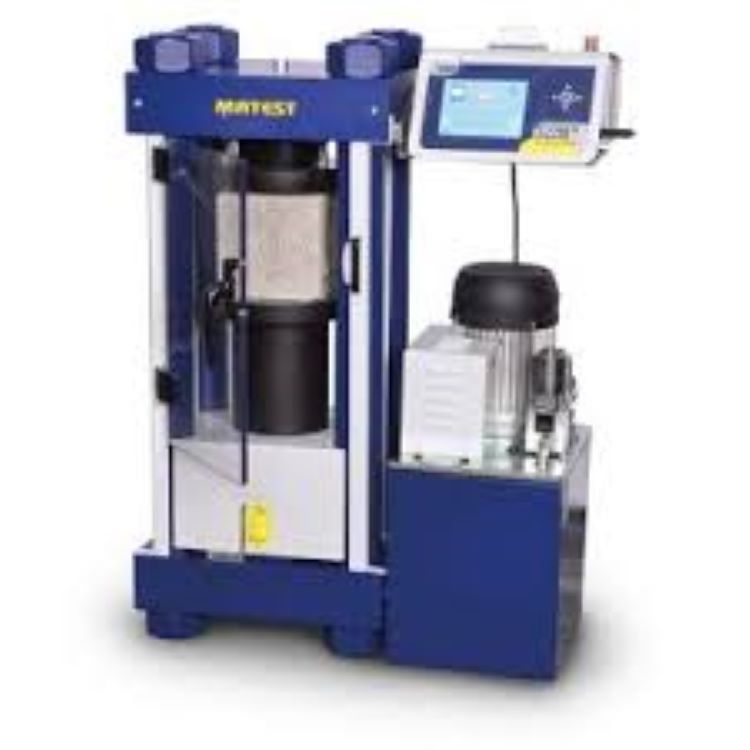

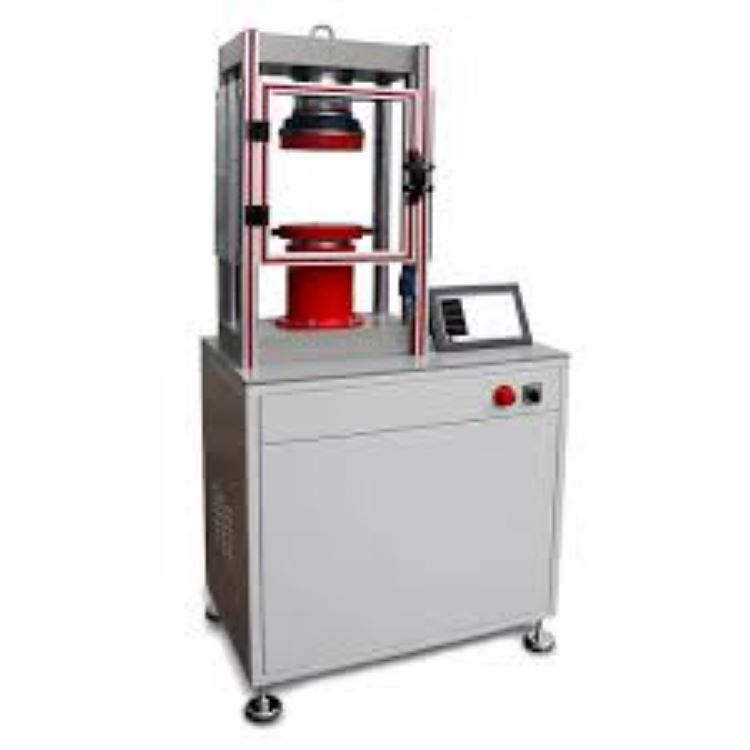

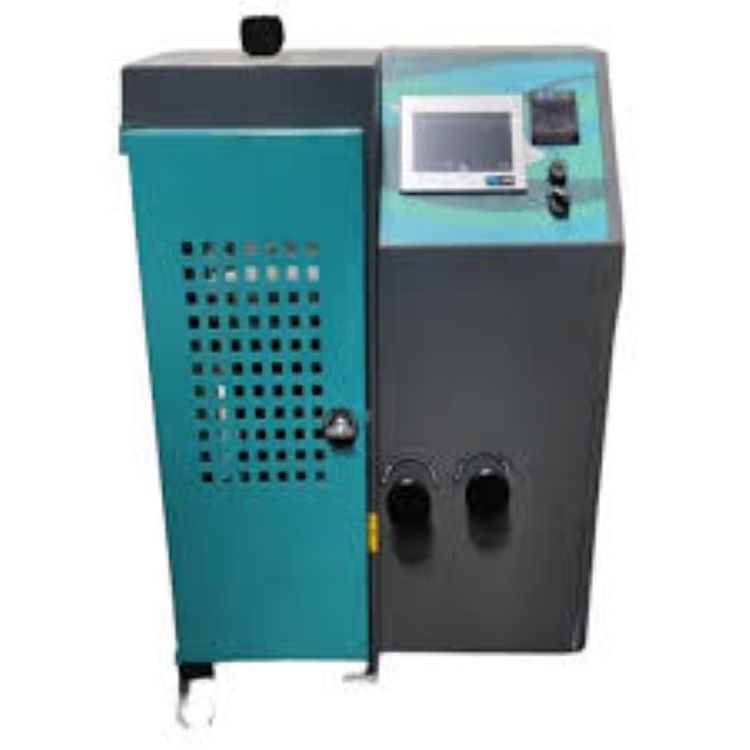

Eco Servo Smart Compression Testing Machine

Name: Eco Servo Smart Compression Testing Machine
Brand: SUBITEK
Price: 395000.0 INR
Availability: InStock

Price 395000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Eco Servo Smart Compression Testing Machine Specification

Resolution
0.01 kN

Interface Type
USB, RS232

Humidity
Up to 85% RH

Equipment Type
Smart Compression Testing Machine

Frequency
50 Hz

Mounting Type
Floor Mounted

Features
Data Storage, Auto Calibration, Real-Time Graph Display, Overload Protection

Power Supply
220V AC, 50 Hz

Temperature
10C to 40C

Port Size
Standard 1/4 inch

Number of Specimens
1 (Single Specimen Test)

Response Time
<2 seconds

Application
Compression strength testing of materials including paper, cardboard, and packaging

Measuring Range
0.1-100 kN

Test Range
0-100 kN

Hardness
High-Durability Framework

Specimen Size
Up to 500 x 500 mm

Max Height
800 mm

Accuracy
1% FS

Operating Voltage
220V AC

Gas Pressure
0-1 MPa

Display Type
7-inch Touchscreen LCD

Automation Grade
Automatic

Usage
Industrial Compression Testing

Capacity
100 kN

Machine Weight
Approx. 250 kg

Test Speed
10-300 mm/min (Adjustable)

Test Width
500 mm

Test Stroke
0-400 mm

Control Mode
Servo Control with Touchscreen Interface

Navigation
Multi-language Menu Support

Software Compatibility
PC Data Acquisition Software included

Noise Level
<65 dB

Data Output Format
CSV, PDF

Calibration
Auto and Manual Modes

Frame Material
Reinforced Mild Steel Structure

Protection Class
IP54

Dimensions
Approx. 900 x 800 x 1300 mm (L x W x H)

Motor Type
High Precision Servo Motor

Color
Blue & White (Standard Model)

Safety Features
Emergency Stop, Over-travel Protection

Eco Servo Smart Compression Testing Machine Trade Information

Minimum Order Quantity
1 Piece

FOB Port
COIMBATORE

Payment Terms
Cash Advance (CA), Cash in Advance (CID)

Supply Ability
1 Piece Per Day

Delivery Time
1 Days

Sample Available
No

Packaging Details
COTTON BOX

Main Export Market(s)
Asia, Africa

Main Domestic Market
Mizoram, Meghalaya, Arunachal Pradesh, Chhattisgarh, Madhya Pradesh, Maharashtra, Nagaland, Rajasthan, All India, South India, Central India, West India, North India, East India, Gujarat, Manipur, Andhra Pradesh, Bihar, Chandigarh, Daman and Diu, Goa, Jharkhand, Odisha, Punjab, Assam, Delhi, Dadra and Nagar Haveli, Andaman and Nicobar Islands, Tamil Nadu, Telangana, Tripura, Pondicherry, Uttar Pradesh, Uttarakhand, West Bengal, Haryana, Himachal Pradesh, Jammu and Kashmir, Karnataka, Kerala, Lakshadweep, Sikkim

About Eco Servo Smart Compression Testing Machine

Specification:

Smart Series

Capacity: 1000kN / 2000kN / 3000kN

An advanced servo compression testing machine developed by Zeal International is a robust compression tester manufactured as per International Standards. Equipped with touch screen display, this machine is easy to use and maintained.

The load frame is a sturdy welded plate type complete with hydraulic power pack attached to it. Solid machined spacers are supplied to test different sizes of concrete specimen. The piston is duly hard chromed for fast lift and return.

Features:

7 LCD touch screen
10 point calibration facility with auto/manual pace rate regulator
On board printing facility
Overload cut off facility
Piston over lift cut off facility
Compact & sturdy design load frame to be base mount
Pump clamped to frame
Matt finished PU paint in dark color
Safety lockable door
Platen hardness 55HRC grinded to the finish of 0.02 mm
Automatic pace rate control from 0.5kN/sec to 20kN/sec
Real time graph for Load vs Time
Emergency stop push button
Safety for over lift of jack with limit switch cut of facility
USB pen drive port for data saving
Solid CNC finish distance piece
SCADA Software available (at additional cost)

Technical Specifications	Unit	ZI-2054-ESS-1	ZI2054-ESS-2	ZI2054-ESS-3
Capacity	kN	1000	2000	3000
Electronic Display		EO-D	EO-D	EO-D
Ram Diameter	MM	180	250	300
Ram Travel	MM	50	50	50
Pressure Gauge Diameter	MM	Nil	Nil	Nil
Pressure Gauge	kN	Nil	Nil	Nil
Least Count	kN	0.01	0.01	0.01
Maximum Pressure	Kg/cm	410	410	410
Platen Diameter	MM	220	300	300
Horizontal Clearance	MM	260	320	380
Vertical Day Light	MM	310	310	310
Height of Load Frame	MM	770	890	890
Weight of Load Frame	Kg.	250	580	800
Specimen Size (can be tested)
Cube	MM	50, 70.6, 100, 150	100, 150, 200	100, 150, 200
Cylinderical	MM	100 x 200	100 x 200, 150 x 300	100 x 200, 150 x 300
Electrical Version
Motor	H.P.	230 V, 2 Ph, 50 Hz	230 V, 2 Ph, 50 Hz	230 V, 2 Ph, 50 Hz
R.P.M.		1440	1440	1440
Electronic Spped Drive		Yes	Yes	Yes
Height of Pumping Unit	MM	810	890	890
Weight of Pumping Unit	Kg.	90	90	90

Exceptional Accuracy and Versatility

Designed for high-precision compression testing, this machine accommodates specimen sizes up to 500 x 500 mm and a test range of 0.1-100 kN. The robust servo control, combined with a quick response time and automatic calibration options, empowers operators to carry out reliable tests with minimal effort, ensuring repeatability and compliance with industrial standards.

User-Friendly Interface and Advanced Data Management

Navigation is simplified through a multi-language touchscreen LCD, making operations accessible to a diverse user base. The included data acquisition software facilitates effortless recording and analysis, with outputs available in both CSV and PDF formats for enhanced compatibility with business and regulatory documentation.

FAQ's of Eco Servo Smart Compression Testing Machine:

Q: How does the Eco Servo Smart Compression Testing Machine enhance safety during operation?

A: The machine is equipped with emergency stop and over-travel protection features, reducing the risk of accidental damage or operator injury during compression tests. Its IP54-rated enclosure further safeguards internal components from dust and moisture.

Q: What materials and specimen sizes can be tested with this equipment?

A: It is suitable for compression testing materials such as paper, cardboard, and packaging, handling single specimens up to 500 x 500 mm in size with a maximum test capacity of 100 kN.

Q: When should auto versus manual calibration modes be used on the machine?

A: Automatic calibration is best for routine use and quick setup, while manual calibration is preferred for more rigorous quality checks or custom requirements, allowing users greater control over calibration parameters.

Q: Where can the Eco Servo Smart Compression Testing Machine be installed?

A: With its floor-mounted design and reinforced mild steel structure, the machine is ideal for industrial facilities, laboratories, and quality control centers, particularly those engaged in materials testing across India.

Q: What is the process for exporting test data from the machine?

A: Test data can be retrieved using the supplied PC data acquisition software and exported directly in CSV or PDF formats via USB or RS232 interfaces, facilitating easy analysis and record-keeping.

Q: How is the machine operated and controlled during tests?

A: Users interact with the machine through a 7-inch touchscreen LCD supporting multi-language menus and servo control, enabling adjustable test speeds, real-time graph display, and simple operation for automated compression testing.

Q: What are the key benefits of using this compression testing machine for industrial applications?

A: Key advantages include precise measurement accuracy (1% FS), robust safety mechanisms, automated calibration, efficient data management, and user-friendly controls, leading to improved productivity and reliable material strength evaluation in manufacturing and quality assurance processes.
