Devel Attrition Tester

Name: Devel Attrition Tester
Brand: SUBITEK
Price: 40000.0 INR
Availability: InStock

Price 40000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Devel Attrition Tester Specification

Max Height
400 mm

Automation Grade
Manual

Hardness
High-grade steel drum

Resolution
1 cycle

Equipment Type
Devel Attrition Tester

Accuracy
±1 cycle

Specimen Size
50 mm x 25 mm

Response Time
Instant

Humidity
60%-80% RH

Operating Voltage
230V

Display Type
Digital Counter

Number of Specimens
4

Port Size
25 mm

Power Supply
230V AC, 50 Hz

Test Range
0 - 99 tests

Frequency
50 Hz

Features
Heavy duty construction, easy loading mechanism

Interface Type
Analog/Digital

Mounting Type
Floor Mount

Application
Aggregate Abrasion and Attrition Testing

Measuring Range
0 to 100 cycles

Temperature
Ambient 20°C to 40°C

Gas Pressure
6-8 bar

Usage
Laboratory Testing

Capacity
4 Specimens

Machine Weight
53 kg

Test Speed
100 rpm

Test Width
180 mm

Test Stroke
Standard rotation

Control Mode
Manual

Motor Power
1 HP

Material
Mild Steel / Stainless Steel

Compliance
IS:2386 (Part IV) standards

Finish
Powder coated

Timer
Digital preset timer

Noise Level
<70 dB

Safety Features
Overload protection

Drum Diameter
180 mm

Sample Loading Capacity
500-1000 g

Drum Length
700 mm

Devel Attrition Tester Trade Information

Minimum Order Quantity
1 Piece

FOB Port
coimbatore

Payment Terms
Cash Advance (CA), Cash in Advance (CID)

Supply Ability
1 Piece Per Day

Delivery Time
1 Days

Sample Available
No

Packaging Details
cotton box

Main Export Market(s)
Asia, Africa

Main Domestic Market
South India, Central India, Kerala, Lakshadweep, Mizoram, Meghalaya, All India, West India, North India, East India, Gujarat, Karnataka, Manipur, Andhra Pradesh, Bihar, Chandigarh, Daman and Diu, Goa, Jharkhand, Odisha, Punjab, Assam, Delhi, Dadra and Nagar Haveli, Andaman and Nicobar Islands, Arunachal Pradesh, Chhattisgarh, Haryana, Himachal Pradesh, Nagaland, Rajasthan, Jammu and Kashmir, Madhya Pradesh, Maharashtra, Sikkim, Tamil Nadu, Telangana, Tripura, Pondicherry, Uttar Pradesh, Uttarakhand, West Bengal

About Devel Attrition Tester

Specification:

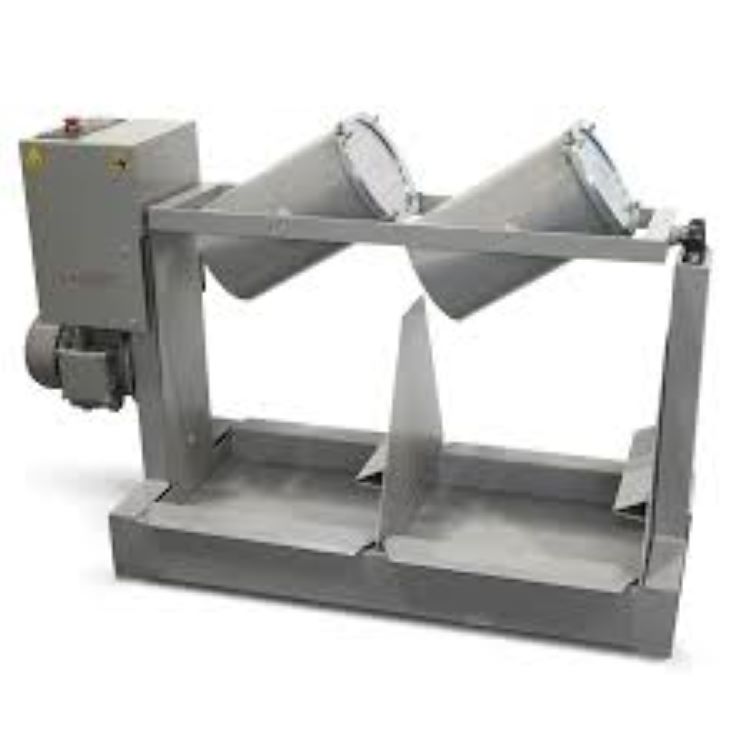

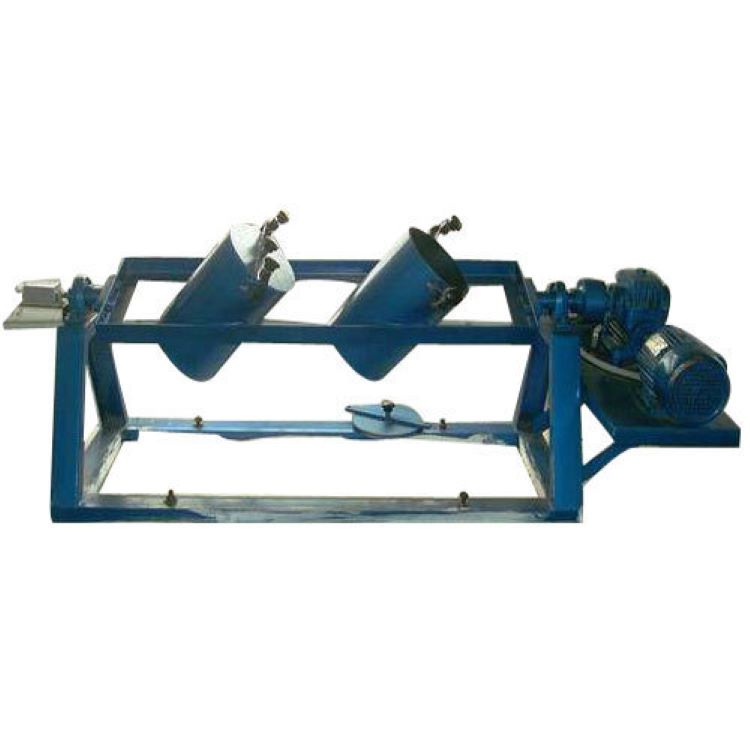

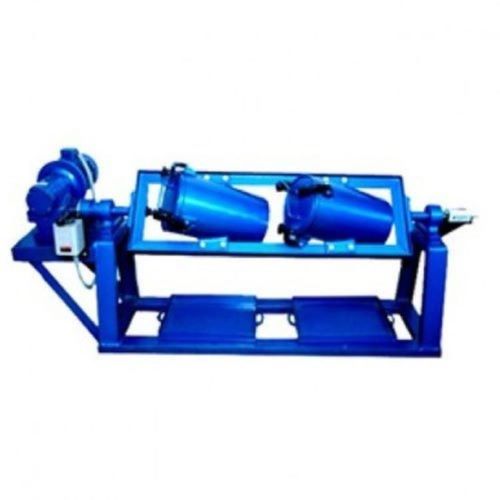

It consists of two hollow cylinders closed at one end and provided with Fitting covers at the either end. These cylinders are mounted an a shaft at angle of 300 with the axis of rotation of the shaft. The shaft rotates at 30-33 RPM. Through a reduction gear operated by a motor and is provided with a revolution counter. Complete with Abrasive Charge consisting of 12 Nos. Hardened steel Balls of48mm dia. Suitable for operation on 440 Volts, Three Phase, 50 Cycles, A.C. supply.
Note : Option of Digital Preset Counter can be provided at an Extra Cost.

Precision Testing for Aggregate Durability

Ensure the quality of construction materials with the Devel Attrition Tester, engineered to measure abrasion and attrition resistance in aggregates. Featuring a high-grade steel drum and accurate digital counter, this device delivers consistent, reliable results in compliance with IS:2386 (Part IV) standards. The easy-loading mechanism and preset digital timer streamline laboratory operations, making it indispensable for those seeking accuracy and efficiency.

Robust Construction and Safety Features

Built from heavy-duty mild or stainless steel, the tester is both durable and safe. The powder-coated finish withstands rigorous lab use, while overload protection safeguards both operator and equipment. Low noise levels and floor-mount design enhance laboratory comfort and usability, while manual controls allow hands-on operation and test customization.

FAQ's of Devel Attrition Tester:

Q: How do I operate the Devel Attrition Tester for aggregate testing?

A: Place up to four specimens, each measuring 50 mm x 25 mm, and a sample load of 500-1000 grams into the drum. Set the required cycles on the digital timer and close the lid. Start the machine, and it will rotate at 100 rpm for the preset duration. Results are displayed instantly on the digital counter upon completion.

Q: What is the main benefit of using this attrition tester in the laboratory?

A: This tester provides highly accurate and repeatable measurements of aggregate abrasion and attrition, helping determine material suitability for construction projects. Its compliance with IS:2386 (Part IV) standards ensures recognized and comparable results.

Q: When is it necessary to perform aggregate attrition testing?

A: Aggregate attrition testing is recommended during quality control of construction materials, before commencing large-scale building projects, or when verifying that supplied aggregates meet required durability standards.

Q: Where can the Devel Attrition Tester be installed in a laboratory?

A: Thanks to its floor-mount design and compact build (max height 400 mm), the tester can be placed on any stable laboratory floor, provided there is access to a 230V AC, 50 Hz power supply and appropriate ventilation.

Q: What steps are involved in the aggregate abrasion and attrition testing process?

A: First, prepare aggregate specimens and load them as directed. Set test parameters such as number of cycles (up to 100) on the digital timer. Begin testing; the machine will rotate the drum. Results are displayed on the digital counter for immediate analysis.

Q: What safety features are included in this equipment?

A: The tester is equipped with overload protection, ensuring safety for operators and stable functioning during extended testing periods. Its heavy-duty construction and low noise level further enhance operational safety and comfort.

Q: How does the digital counter improve testing accuracy?

A: The digital counter records every cycle with 1 cycle accuracy and 1 cycle resolution, providing clear, instant, and reliable results. This eliminates guesswork and manual counting, ensuring precise data recording for quality assessments.
