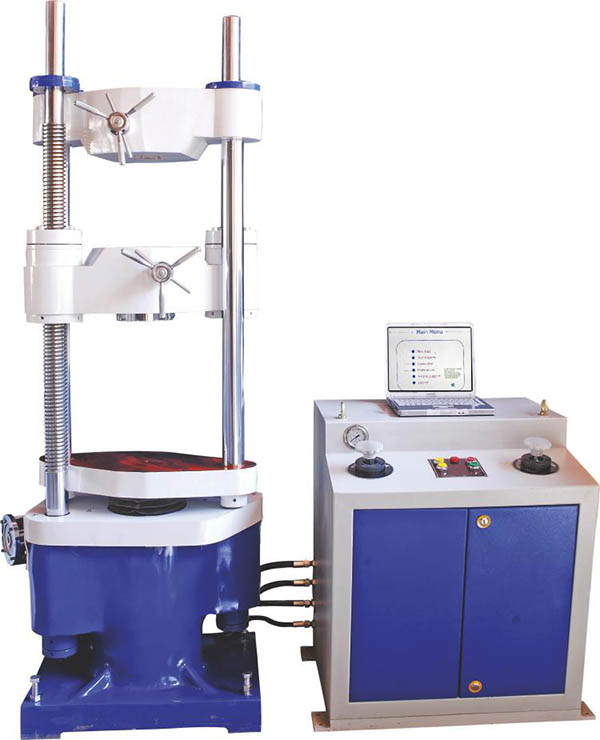

Hydraulic Computerized UTM

Name: Hydraulic Computerized UTM
Brand: SUBITEK
Price: 100000.0 INR
Availability: InStock

Price 100000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Piece

Hydraulic Computerized UTM Specification

Accuracy
Class 1 / 1% as per IS:1828/BS:1610/ISO:7500-1

Resolution
0.01 kN

Max Height
Approx. 2200 mm

Equipment Type
Hydraulic Universal Testing Machine

Features
Real-time Graph Plotting, Data Storage, Overload Protection

Measuring Range
2% to 100% of capacity

Number of Specimens
Single Specimen Testing

Operating Voltage
220380 V AC

Application
Tensile, Compression, Bend, Shear testing of metals and allied materials

Mounting Type
Stand Floor Mounted

Power Supply
220 V / 380 V, 50 Hz (3 phase)

Port Size
Standard Hydraulic Ports

Automation Grade
Computerized Automatic

Display Type
Digital Load & Displacement Display via Computer

Temperature
10C to 40C

Test Range
Up to 2000 kN

Frequency
50 Hz

Interface Type
USB/RS232

Specimen Size
Round: 10-60 mm; Flat: width up to 90 mm

Response Time
Instantaneous (Real-time)

Humidity
Up to 90% RH (non-condensing)

Usage
Material Strength Evaluation

Capacity
600 kN / 1000 kN / 2000 kN (as per model)

Machine Weight
Approx. 2000 kg

Test Speed
0.5 500 mm/min (variable)

Test Width
Standard Grips up to 50 mm

Test Stroke
200 800 mm

Control Mode
Computerized/Servo Control

Displacement Transducer Type
LVDT

Grip Type
Wedge/Self-tightening grips for flat and round specimens

Frame Construction
Heavy Duty Steel Welded Frame

Load Cell Type
Strain Gauge Type

Color
Industrial Blue/Grey

Calibration
IS/ISO/ASTM Certified

Safety Features
Hydraulic Overload Protection, Emergency Stop

Test Standard Compliance
IS, ISO, ASTM, BS standards

Data Analysis Software
Included with reporting & analysis

Hydraulic Oil Tank Capacity
60 L

Crosshead Adjustment
Motorized

Language Support
Multi-language Software Support

Hydraulic Computerized UTM Trade Information

Minimum Order Quantity
1 Piece

FOB Port
coimbatore

Payment Terms
Cash Advance (CA), Cash in Advance (CID)

Supply Ability
1 Piece Per Day

Delivery Time
1 Days

Sample Available
No

Packaging Details
cottonbox

Main Export Market(s)
Asia, Africa

Main Domestic Market
Lakshadweep, Mizoram, Andhra Pradesh, Bihar, Chandigarh, Daman and Diu, Meghalaya, Manipur, All India, South India, Central India, West India, North India, East India, Gujarat, Karnataka, Kerala, Goa, Jharkhand, Odisha, Telangana, Punjab, Assam, Delhi, Dadra and Nagar Haveli, Andaman and Nicobar Islands, Arunachal Pradesh, Chhattisgarh, Haryana, Himachal Pradesh, Jammu and Kashmir, Madhya Pradesh, Maharashtra, Nagaland, Rajasthan, Sikkim, Tamil Nadu, Tripura, Pondicherry, Uttar Pradesh, Uttarakhand, West Bengal

About Hydraulic Computerized UTM

Specification:

Application System:

Peak load along with on line load
Maximum elongation with online elongation
Ultimate Tensile Strength
Graphical Display of Load vs. Time
Graphical Display of Elongation vs. Time
Graphic Display of Load vs. Elongation
Graphic Display of Stress vs. Strain
Complete Statistical Analysis
Data Report Management Safety Features:
Machine stops after specimen failure
Safety against Over travel of piston
Safeguard against
High temperature
Surge Protector
Auto Machine Diagnosis
Safety against overload

PC Configuration:

Processor: Quad Core processor from Intel / AMD
Processing Speed: 2.0 GHz or higher
Hard Disk Drive: 250 GB or higher
RAM: 4 GB
DVD Writer
Colour Monitor: 17" LED TFT
Key Board: 104 Key
Printer : Inkjet
Printer : Laser ( Optional at extra cost )
Mouse Optical
UPS of at least 600 VA capacity

Software:

Pre-loaded with window 7 based software
The software provided on CD ROM also
Automatic saving and providing database for carrying out statistical calculation of multiple test results
Software application shall be capable of providing functions like Auto Return to Zero

Note:
Computer Desktop / Laptop is not included in the price of machine

Hydraulic Grips also available

Engineered for Superior Performance

Designed to meet stringent IS, ISO, ASTM, and BS standards, this Hydraulic Computerized UTM guarantees high accuracy and reliability. Its precision load cell, LVDT-based displacement transducer, and heavy-duty welded frame provide stable and repeatable results across a broad test range, with capacities up to 2000 kN and a variable test speed between 0.5-500 mm/min. The machine's robust structure supports intensive routine and research-based applications.

User-Friendly Automation and Control

Featuring computerized, servo control and real-time display of load and displacement, this UTM makes operation seamless for testing professionals. Motorized crosshead adjustment, intuitive data analysis software, and USB/RS232 interface enable efficient workflow, instant graph plotting, and reliable report generation. Multi-language support in the software caters to diverse users, ensuring effortless adoption across research labs and industries.

Comprehensive Safety and Data Management

Equipped with hydraulic overload protection, emergency stop features, and digital monitoring, the machine emphasizes operator safety throughout the testing process. Real-time data storage, high-resolution measurement (0.01 kN), and certified calibration ensure traceable and verifiable results, crucial for quality control, certification, and R&D environments.

FAQ's of Hydraulic Computerized UTM:

Q: How does the computerized UTM ensure accurate material strength testing?

A: The machine utilizes a high-precision strain gauge load cell and LVDT displacement transducer, meeting IS, ISO, ASTM, and BS standards. Its Class 1 accuracy and 1% error margin, combined with real-time digital monitoring and certified calibration, ensure reliable and repeatable results for tensile, compression, bend, and shear tests.

Q: What types of specimens and tests can the Hydraulic Computerized UTM handle?

A: The UTM is designed for single specimen testing of round samples (10-60 mm) and flat specimens (up to 90 mm width). It supports tensile, compression, bend, and shear tests on metals and allied materials, adapting to multiple research and quality control applications.

Q: When should hydraulic overload protection and emergency stop features be used?

A: These features act automatically or can be manually engaged if irregular load changes or unsafe conditions occur during testing. They safeguard the operator and the equipment, particularly during unexpected test events or system malfunctions.

Q: Where can this UTM be installed and operated?

A: Thanks to its stand floor-mounted design and robust construction, the UTM is suitable for industrial laboratories, manufacturing units, and research facilities across India. It operates effectively in environments with up to 90% relative humidity (non-condensing) and temperatures between 10C to 40C.

Q: What is the process for data analysis and report generation using this machine?

A: The included software provides real-time graph plotting, data storage, and advanced analysis features. Test results are collected instantly, with customizable reporting and multi-language support, enabling users to analyze, document, and export test data efficiently via USB or RS232 interfaces.

Q: How does the motorized crosshead adjustment and servo control benefit users?

A: These automation features allow precise and effortless specimen loading, variable test speeds, and accurate crosshead positioning. This minimizes user intervention, enhances repeatability, and increases safety during high-capacity test cycles.
