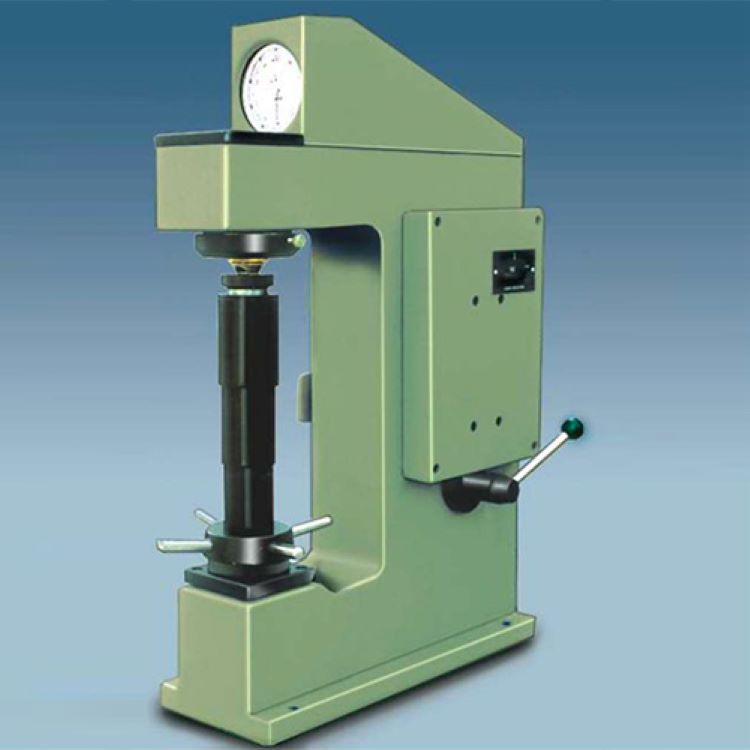

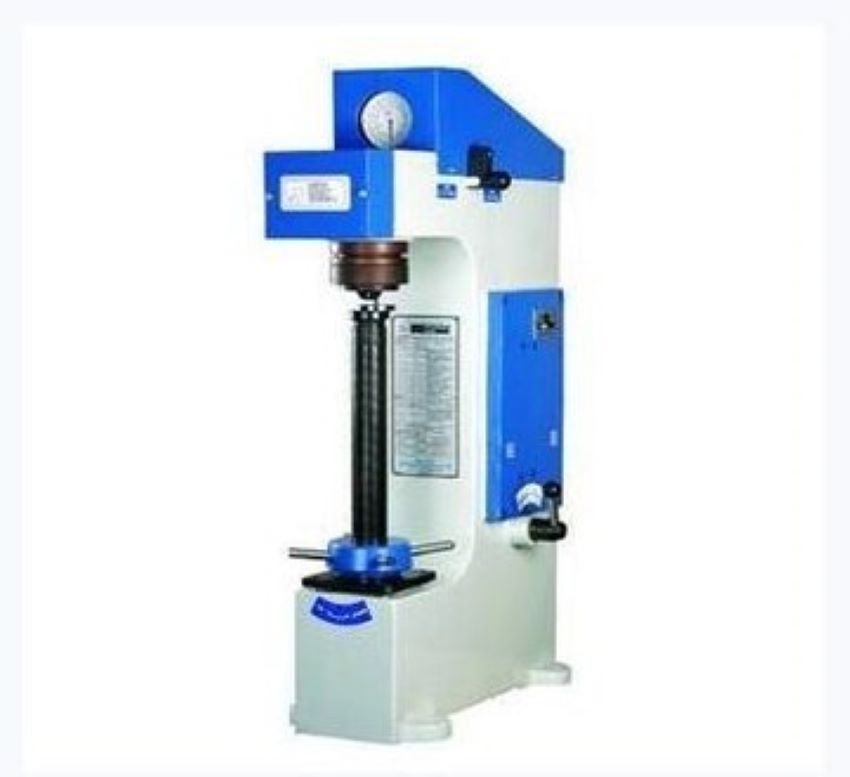

Rockwell Hardness Tester

Name: Rockwell Hardness Tester
Brand: SUBITEK
Price: 100000.0 INR
Availability: InStock

Price 100000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Rockwell Hardness Tester Specification

Response Time
Immediate (manual operation)

Frequency
50 Hz

Display Type
Analog dial

Number of Specimens
Single specimen at a time

Application
Metallurgical, engineering, quality control

Interface Type
None (manual device)

Features
High accuracy, robust body, rapid testing

Test Range
20-100 HRB, 20-70 HRC

Temperature
10°C to 40°C (Operating)

Humidity
Up to 85% RH (non-condensing)

Specimen Size
Max. height 230 mm, depth 135 mm

Hardness
Rockwell A, B, C scales

Measuring Range
Rockwell A, B, C Scales

Automation Grade
Manual

Port Size
Standard specimen port

Resolution
0.5 HR (Rockwell Hardness)

Accuracy
Conforms to IS:1586, ASTM E18 standards

Operating Voltage
230V AC

Equipment Type
Hardness Testing Machine

Mounting Type
Benchtop

Power Supply
230V, 50Hz, Single Phase AC

Max Height
230 mm (specimen)

Usage
Hardness testing of metals and alloys

Capacity
Max load 150 kgf

Machine Weight
Approx. 70 Kg

Test Speed
Variable, manual control

Test Width
Up to 150 mm

Test Stroke
~100 mm

Control Mode
Manual

Finish
Powder coated for corrosion resistance

Main Scale Graduation
HRB: 100-0, HRC: 0-100

Loading Sequence
Preliminary and major loads applied manually

Anvil Type
Flat and V-type anvils included

Indenter Type
Diamond Cone and Steel Ball

Safety Features
Overload protection

Compliance
Meets ISO 6508-2 standards

Physical Dimensions (LxWxH)
470 x 220 x 700 mm

Rockwell Hardness Tester Trade Information

Minimum Order Quantity
1 Piece

FOB Port
subitek

Payment Terms
Cash in Advance (CID), Cash Advance (CA)

Supply Ability
1 Piece Per Day

Delivery Time
1 Days

Sample Available
No

Packaging Details
cotton box

Main Export Market(s)
Asia, Africa

Main Domestic Market
All India, South India, Nagaland, Rajasthan, Telangana, Tripura, Pondicherry, Uttar Pradesh, Uttarakhand, West Bengal, Meghalaya, Manipur, Andhra Pradesh, Sikkim, Tamil Nadu, Central India, West India, North India, East India, Gujarat, Mizoram, Bihar, Chandigarh, Daman and Diu, Goa, Jharkhand, Odisha, Punjab, Assam, Delhi, Dadra and Nagar Haveli, Karnataka, Kerala, Lakshadweep, Andaman and Nicobar Islands, Arunachal Pradesh, Chhattisgarh, Haryana, Himachal Pradesh, Jammu and Kashmir, Madhya Pradesh, Maharashtra

Rockwell Hardness Tester About

Specification:

Standard Rockwell / Brinell Machine
The Hardness Testers have been designed and manufactured strictly conforming to IS. BS, ASTM, ISO and DIN Standards. Since 1966 for most exacting test requirements in the Laboratories and Workshops etc. These testers are designed and manufactured for measuring hardness of metals and alloys of all types, hard or soft, flat, round, tubular or irregular in shape. The testers are simple in design, easy to operate, yet very reliable and accurate.

Standard Rockwell Method-Manual Operation
ZI 7003A: With automatic zero setting dial guage and manual load selection.
ZI 7003B: With automatic zero setting dial guage and Automatic load selection Standard Rockwell/Brinell Method-Manual Operation
ZI 7003C: With automatic zero setting dial gauge device and automatic toad selection. Brinell Hardness Testing facility according to 30 F/D ratio, with 187.5 kgf load and 2.5 mm dia ball indenter.
ZI7003D: Similar to ZI 7003C, but with additional test Ioad of 250 kgf and 5 mm dia ball indenter for, testing Brinell hardness of non-ferrous metals according to 10F/D ratio.

	ZI 7003A	ZI 7003B	ZI 7003C/D
Calibrated weight set kgf.	60,100,150	60, 100, 150, 187.5	60, 100, 150, 187.5, 250
Suitable Dial gauge	1 pc.	1 pc.	1 pc.
Flat testing table 50 mm dia.	1 pc.	1 pc.	1 pc.
Testing table 40 mm dia.	1 pc.	1 pc.	1 pc.
Spot Anvil	nil	nil	nil
Sphero-conical diamond cone penetrator 120	1 pc.	1 pc.	1 pc.
1/16" dia. steel ball indentor	1 pc.	1 pc.	1 pc.
2.5 mm dia. steel ball indentor	nil	nil	nil
5 mm dia. steel ball indentor	nil	nil	nil
10 mm dia. steel ball indentor	nil	nil	nil
Test Block Rockwell C	1 pc.	1 pc.	1 pc.
Test Block Rockwell B	1 pc.	1 pc.	1 pc.
Test Block Rockwell Superficial 30 N	nil	nil	nil
Test Block Rockwell Superficial 30 T	nil	nil	nil
Test Block HB 2.5/187.5	nil	nil	nil
Test Block HB 5/250	nil	nil	nil
25X Brinell Microscope with chromatic objective & light	nil	nil	nil
Allen Spanner	2 pc.	2 pc.	2 pc.
Clamping device	1 pc.	1 pc.	1 pc.
Dashpot Oil	1 bottle	1 bottle	1 bottle
Instruction Manual	1 bottle	1 bottle	1 bottle
Collapsable cover for main screw protection	1 pc.	1 pc.	1 pc.
Storage case for accessories	1 pc.	1 pc.	1 pc.

Manual Loading Sequence for Precise Testing

This tester applies both preliminary and major loads manually, providing users with direct control over the testing process. Manual operation ensures immediate response and allows for adjustment of test speed according to sample requirements, making it suitable for a wide range of metals and alloys. The analog dial delivers accurate hardness readings with a resolution of 0.5 HR.

Versatile Indenter and Anvil Selection

The instrument comes with diamond cone and steel ball indenters, enabling measurements on Rockwell A, B, and C scales. Flat and V-type anvils are included to accommodate various specimen shapes and sizes, providing flexibility for different metallurgical or engineering samples. The tester handles single specimens up to 230 mm in height and 135 mm in depth.

Robust Construction and Safety Assurance

Powder-coated for enhanced corrosion resistance, this hardness tester offers durability in demanding laboratory and industrial environments. Overload protection safeguards both the machine and operator during testing. The benchtop design simplifies mounting and setup, while standard specimen ports and manual controls promote reliability in repeated use.

FAQ's of Rockwell Hardness Tester:

Q: How does the Rockwell Hardness Tester operate manually for load application?

A: The Rockwell Hardness Tester uses a manual control system where preliminary and major loads are applied by the user, ensuring immediate response and variable test speed tailored to the specific sample being tested.

Q: What types of specimens can be tested with this machine, and is there a size limit?

A: The tester is designed for metals and alloys, accommodating objects up to 230 mm in height and 135 mm in depth, with a maximum test width of 150 mm. Only one specimen can be tested at a time.

Q: When should I use the diamond cone or steel ball indenter types?

A: Use the diamond cone indenter for testing materials on the Rockwell C scale and harder metals (HRC). The steel ball indenter is suitable for softer metals and alloys tested on the Rockwell B scale (HRB). Selection depends on the hardness scale and material properties.

Q: Where can this hardness tester be effectively utilized?

A: It is ideal for laboratory, workshop, and quality control environments in metallurgy, engineering, and manufacturing sectors. Countries and regions requiring compliance with IS:1586, ASTM E18, or ISO 6508-2 standards, including India, are supported.

Q: What is the process for performing a hardness test with this device?

A: First, mount the specimen on the appropriate anvil. Select the required indenter and apply the preliminary load manually. After proper settling, increase to the major load, then read the hardness value directly from the analog dial once the load is released.

Q: What are the benefits of using this tester for hardness measurement?

A: Benefits include high accuracy, immediate results due to manual operation, robust construction with corrosion resistance, overload protection, and compliance with major international standards, making it a reliable choice for precision hardness testing.
