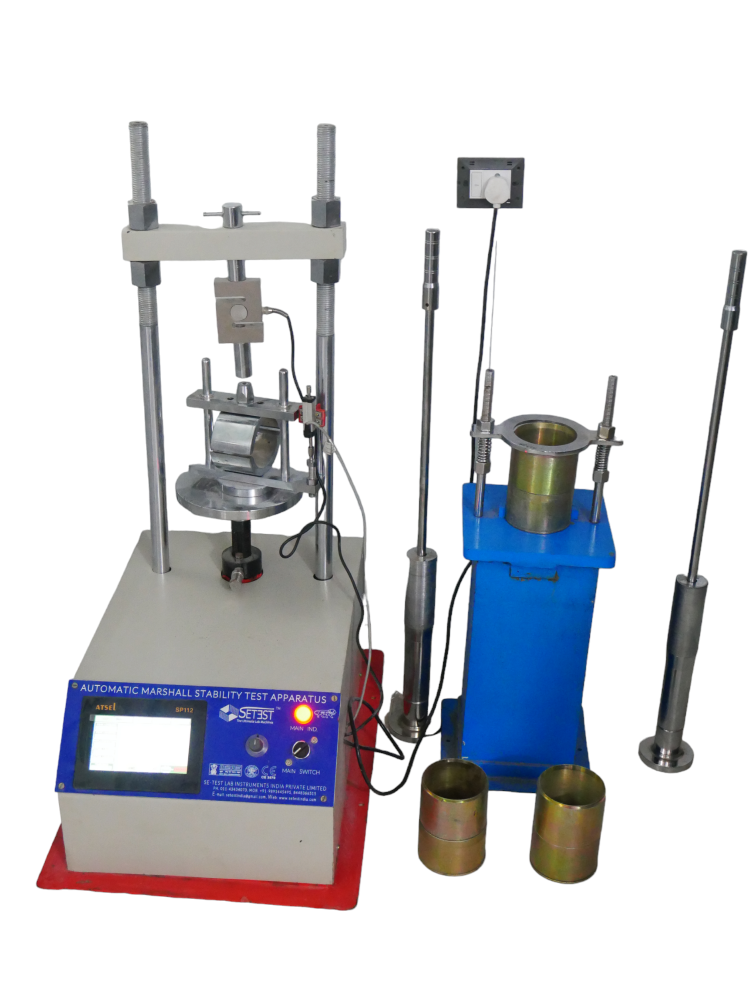

Automatic Marshall Stability Test Machine

Name: Automatic Marshall Stability Test Machine
Brand: SUBITEK
Price: 100000.0 INR
Availability: InStock

Get a Price/Quote

MOQ : 1 Piece

Automatic Marshall Stability Test Machine Specification

Equipment Type
Automatic Marshall Stability Test Machine

Response Time
Instantaneous (< 1 sec)

Hardness
Frame Constructed for High Rigidity

Operating Voltage
220 V AC 10%

Humidity
5% 90% RH (Non-Condensing)

Features
Automatic Data Acquisition, Peak Value Hold, Compact Design, Safety features, Microprocessor Controlled

Mounting Type
Bench Top

Max Height
Approx. 600 mm

Port Size
Standard Marshall Mould Compatibility

Resolution
0.01 kN

Frequency
50 Hz

Temperature
10C 40C (Ambient)

Power Supply
220 V AC, 50 Hz

Specimen Size
101.6 mm diameter x 63.5 mm height (Standard)

Interface Type
RS232 / USB

Test Range
0 50 kN

Measuring Range
0 50 kN

Accuracy
0.1 kN

Automation Grade
Automatic

Number of Specimens
Single Specimen at a Time

Application
Bituminous Mixture Testing; Pavement Evaluation

Display Type
Digital LCD with Peak Hold Feature

Usage
Laboratory/Research

Capacity
50 kN

Machine Weight
Approx. 90 kg

Test Speed
50 mm/min (1 mm/min)

Test Width
150 mm

Test Stroke
0 100 mm

Control Mode
Automatic Microprocessor Based Control

Specimen Extraction
Manual or Power Assisted (Optional Attachment)

Oil Reservoir Capacity
1.5 Litres (Hydraulic System)

Safety Features
Emergency Stop Switch, Overload Protection

Platen Material
Precision Ground Hardened Steel

Motor Type
Induction Motor with Gearbox

Compliance Standards
ASTM D6927, AASHTO T245, IS:12089

Data Output
USB/RS232

Stroke Limit Switch
Provided

Software Support
Compatible with PC Analysis Software

Operation Temperature
10C 40C

Automatic Marshall Stability Test Machine Trade Information

Minimum Order Quantity
1 Piece

FOB Port
coimbatore

Payment Terms
Cash Advance (CA), Cash in Advance (CID)

Supply Ability
1 Piece Per Day

Delivery Time
1 Days

Sample Available
No

Packaging Details
cotton box

Main Export Market(s)
Asia, Africa

Main Domestic Market
Karnataka, Kerala, Lakshadweep, Mizoram, Meghalaya, Central India, West India, North India, East India, Manipur, Andhra Pradesh, Bihar, Chandigarh, Daman and Diu, Goa, Jharkhand, Odisha, Punjab, Assam, Delhi, Dadra and Nagar Haveli, Gujarat, Andaman and Nicobar Islands, Arunachal Pradesh, Chhattisgarh, Haryana, Himachal Pradesh, Jammu and Kashmir, Madhya Pradesh, Maharashtra, Nagaland, Rajasthan, Sikkim, Tamil Nadu, Telangana, Tripura, Pondicherry, Uttar Pradesh, Uttarakhand, West Bengal, All India, South India

About Automatic Marshall Stability Test Machine

Specification:

Automatic Marshall Stability Test MachineorDigital Marshall Testing Machineis a fully automated PC controlled Marshall tester. The 50 kN capacity Automatic Marshall Stability Test Machine is used to determine the maximum load and flow values of bituminous mixtures. The machine comprises of a robust and compact two column frame with adjustable upper cross beam. The unit is a bench mounting compression frame with motor and worm gear housed within the base unit. The speed of the lower platen can be adjusted between 6 mm/min to 60 mm/min using the data acquisition and control unit. For safety, the up and down travel of the lower platen is limited the use of limit switches. Rapid adjustment of the platen is controlled using the up and down buttons on the front panel of the machine. The machine can be hand operated by a lateral hand wheel for calibration purposes.

The measuring system consists of a 50 kn capacity strain gauge load cell fitted to the upper cross beam to read stability values and the 25 x 0.001 mm linear potentiometric displacement transducer fitted to the breaking head. The Automatic Marshall Stability Machine is suitable for testing 6 dia. 4 dia. specimens conforming to ASTM D5581

The Automatic Marshall Stability Test Machine is supplied complete with:

Load cell, 50 kn
Llinear potentiometric displacement transducer with bracket, 25 x 0.001 mm
PC software
Connection cable
Hand wheel for manual control
Breaking head, 4

Automatic Marshall Testing Machine Features:

Automatically calculates flow and stability values
Can make test with displacement and limited load control
Real time display of test graph.
CPU card with 32-bit Arm RISC architecture
Permanent storage capacity up to 10000 test results.
4 analog channels, 2 channels are active for marshall test
Programmable digital gain adjustment for load-cell, pressure transducers, strain-gauge based sensors, potentiometric sensors, voltage and current transmitters
1/256000 points resolution per channel
10 data per second sample rate for each channel
Ethernet connecting for computer interface
800x480 resolution 65535 color TFT-LCD industrial touchscreen
4 main function keys
Multi-language support
3 different unit system selection; kn, ton and lb
Real-time clock and date
Test result visualization and memory management interface
Remote connection through ethernet
USB flash disc for importing test results and for firmware
USB printer support for inkjet and laser printers (ask for compatible models)
Camera support for real-time video recording during test (ask for compatible models)
Free of charge PC software for the test control and advanced report generation

Precision and Reliability

Constructed with a high-rigidity frame and precision-ground hardened steel platen, the test machine guarantees accurate and repeatable results. Its advanced microprocessor control ensures precise measurement with 0.1 kN accuracy, supporting reliable analysis for both routine and advanced research applications in pavement material testing.

Safety and Ease of Use

Operator safety is prioritized with integrated features such as an emergency stop switch and overload protection. The machine includes a stroke limit switch and user-friendly software, providing straightforward operation and data acquisition. Its bench-top, compact design makes it suitable for laboratories with limited space.

Versatile Data Management

Compatibility with PC analysis software and outputs via USB or RS232 port allow for streamlined data transfer and reporting. The digital LCD display offers real-time readings and peak value hold, enhancing data accuracy and simplifying result archiving for test personnel.

FAQ's of Automatic Marshall Stability Test Machine:

Q: How does the Automatic Marshall Stability Test Machine enhance bituminous mixture testing?

A: The machine automates the Marshall Stability test process with microprocessor-based controls, delivering accurate and reliable data acquisition. Its precision ground hardened steel platen and digital LCD with peak hold functionality contribute to consistent evaluation of pavement materials, making laboratory testing more efficient and repeatable.

Q: What safety features are incorporated in this Marshall Stability Test Machine?

A: The equipment includes an emergency stop switch, overload protection, and a stroke limit switch to safeguard operators and prevent equipment damage during testing. These comprehensive safety measures ensure secure operation in laboratory environments.

Q: When is data accessible from the machine, and how can it be retrieved?

A: Test data is available instantly after each measurement, thanks to the instantaneous response time (<1 second) and peak hold digital display. Data can be easily exported to a connected PC via USB or RS232 port and is compatible with analysis software for further processing and documentation.

Q: Where can this Automatic Marshall Stability Test Machine be installed?

A: With its compact bench-top design, the machine is ideal for laboratories and research facilities, accommodating environments where space might be limited. Its robust construction also supports durability in demanding industrial applications.

Q: What is the process for testing a specimen using this machine?

A: A standard Marshall specimen (101.6 mm diameter x 63.5 mm height) is placed in the machine's holder. The automatic controls and built-in software guide the test at a speed of 50 mm/min, measuring up to 50 kN force, with data displayed digitally and stored for analysis. Specimen extraction can be done manually or with an optional power-assisted attachment.

Q: Can the machine be used with different types of analysis software?

A: Yes, the machine supports PC analysis software via both USB and RS232 interfaces, ensuring broad compatibility for data processing and reporting. This flexibility assists laboratories in integrating the tester with their existing digital analysis systems.
