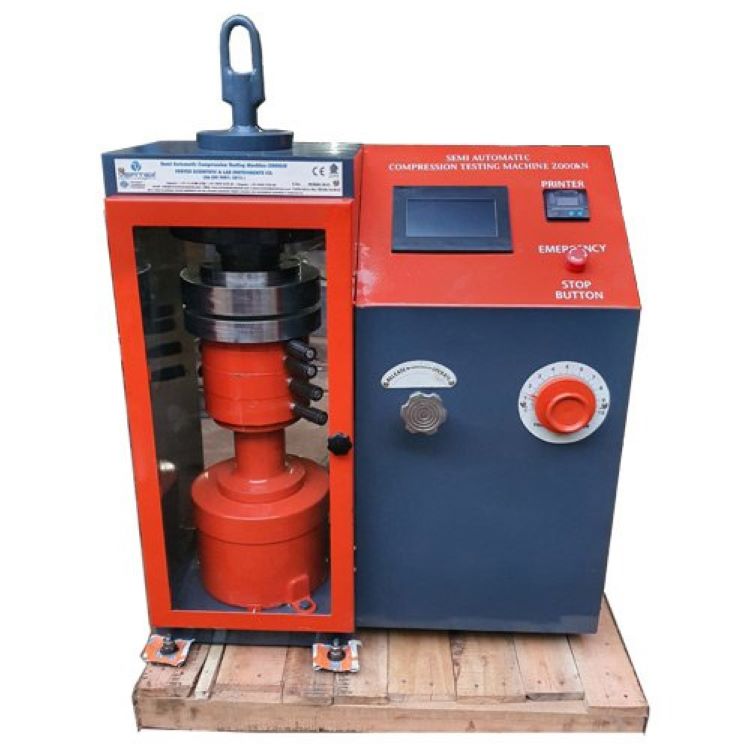

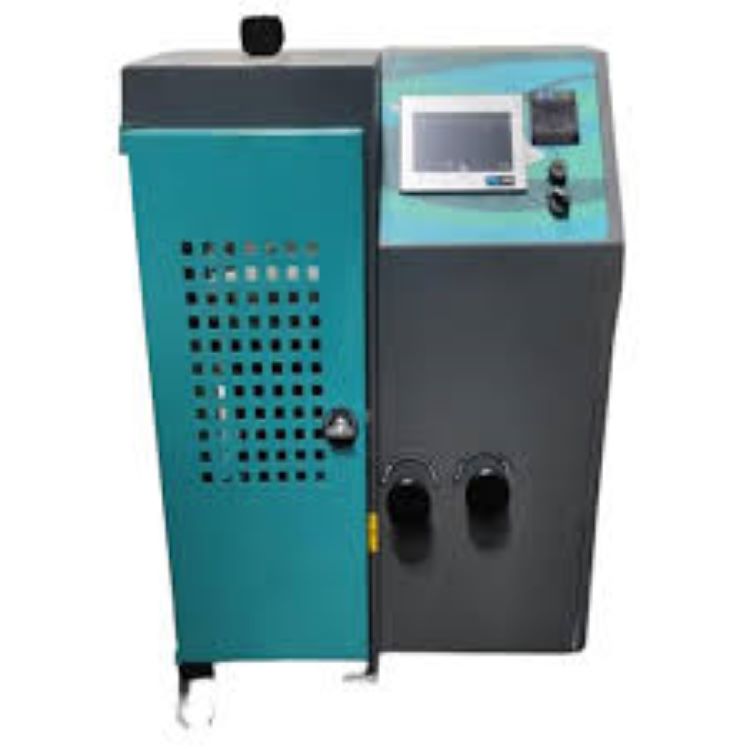

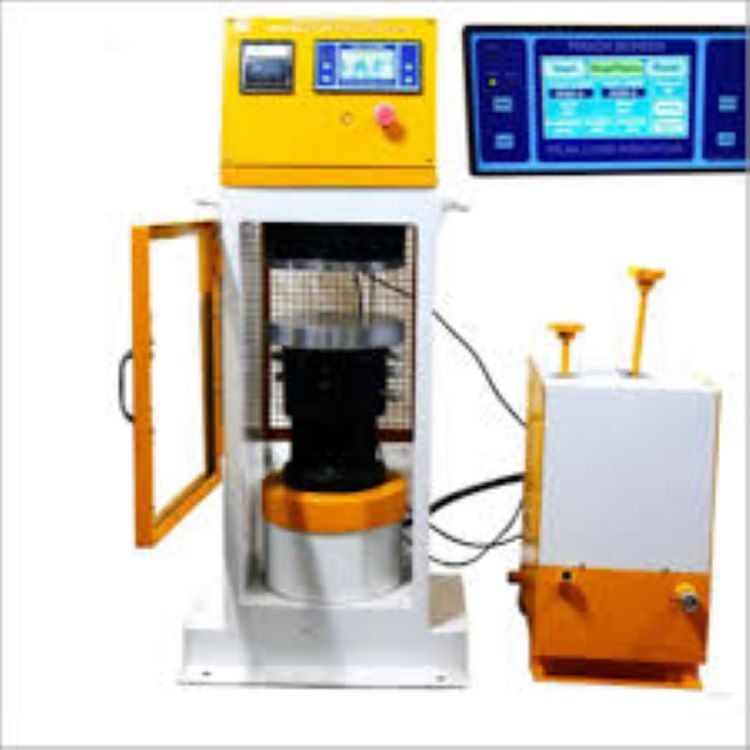

Semi-Automatic Compression Testing Machine

About Semi-Automatic Compression Testing Machine

Specification:

Capacity: 1000, 2000 & 3000 kN 1000, 2000 & 3000 kN

The Labtest semi-automatic (motorized) range of compression testing machines have been designed for reliable and consistent testing of a wide range of specimens. These compression testers are manufactured as a result of continuous research studies to upgrade the machines with the latest technologies to confirm with the latest standards in terms of its technical properties taking into account the client requirements. These machines also meet the requirements of CE norms with respect to the health and safety of the operator. And their user-friendly design enable an inexperienced operator to perform the test.
Maximum horizontal clearance for placing sample is limited with the border of the platens. Sample must be placed such that its ends will not overflow from the ends of platens and it must be centered perfectly. The suitable vertical clearance for specimen can be adjusted with distance pieces. Operated on 220 V, 50 Hz, Single Phase.

Specifications:

Model		ZI 2059-1	ZI 2059-2
Capacity	kN	2000	3000
Standard		IS 14858:2000	IS 14858:2000
The roughness value for texture of loading and auxiliary platens	m	< 3.2	< 3.2
Lower platen dimensions (dia.)	mm	300	300
Upper platens dimensions (dia.)	mm	300	300
Maximum vertical clearance between platens	mm	340	340
Piston diameter	mm	234	234
Maximum piston movement	mm	50	50
Horizontal clearance	mm	350	380
Power	W	550	550
Oil capacity	Ltrs.	20	20
Maximum working pressure	Kg/sq. cm	480	600
Dimensions (W x L x H)	mm	740 x 500 x 970	805 x 540 x 1050
Weight	Kg.	700	975

Precise Concrete Strength Assessment

Designed for testing concrete specimens, this machine delivers measurements over a wide range (1-2000 kN) with high accuracy. It supports both cube and cylinder samples, ensuring versatility for standard laboratory and quality control procedures. With instant response time and user-friendly controls, it streamlines the testing process for professionals.


Robust and Reliable Construction

Manufactured with heavy-duty steel and finished with a corrosion-resistant coating, the compression testing machine offers exceptional durability. Overload protection and a safety cover enhance operator safety during high-pressure tests, while minimal maintenance needs mean lower downtime and cost over the lifespan of the equipment.


Advanced Features for Ease of Use

Key features include a digital display or Bourdon tube gauge, semi-automatic operation, and flexible data output options. A standard accessories kit and floor-standing mounting make the machine simple to integrate and use in various laboratory and industrial environments. Service and calibration are straightforward, thanks to accessible internal components.
