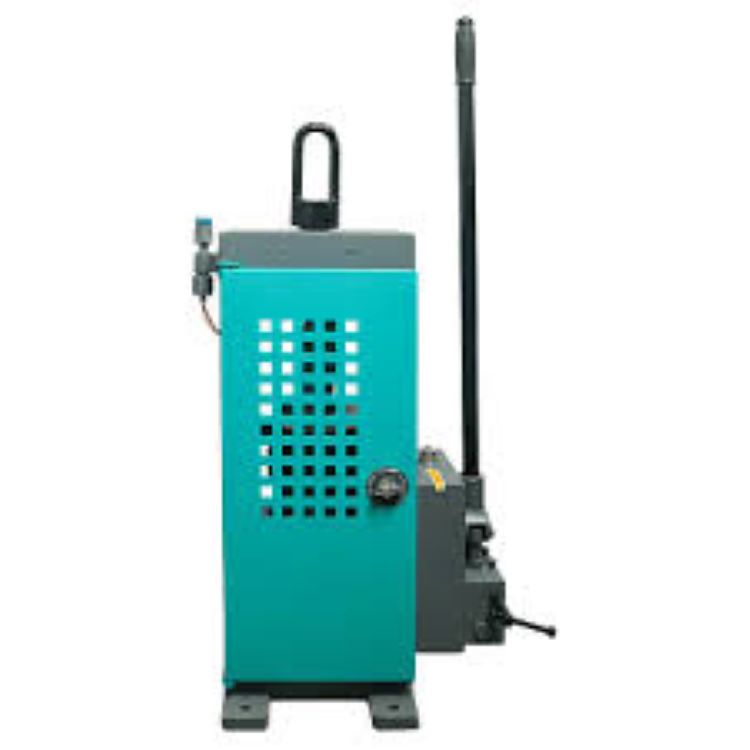

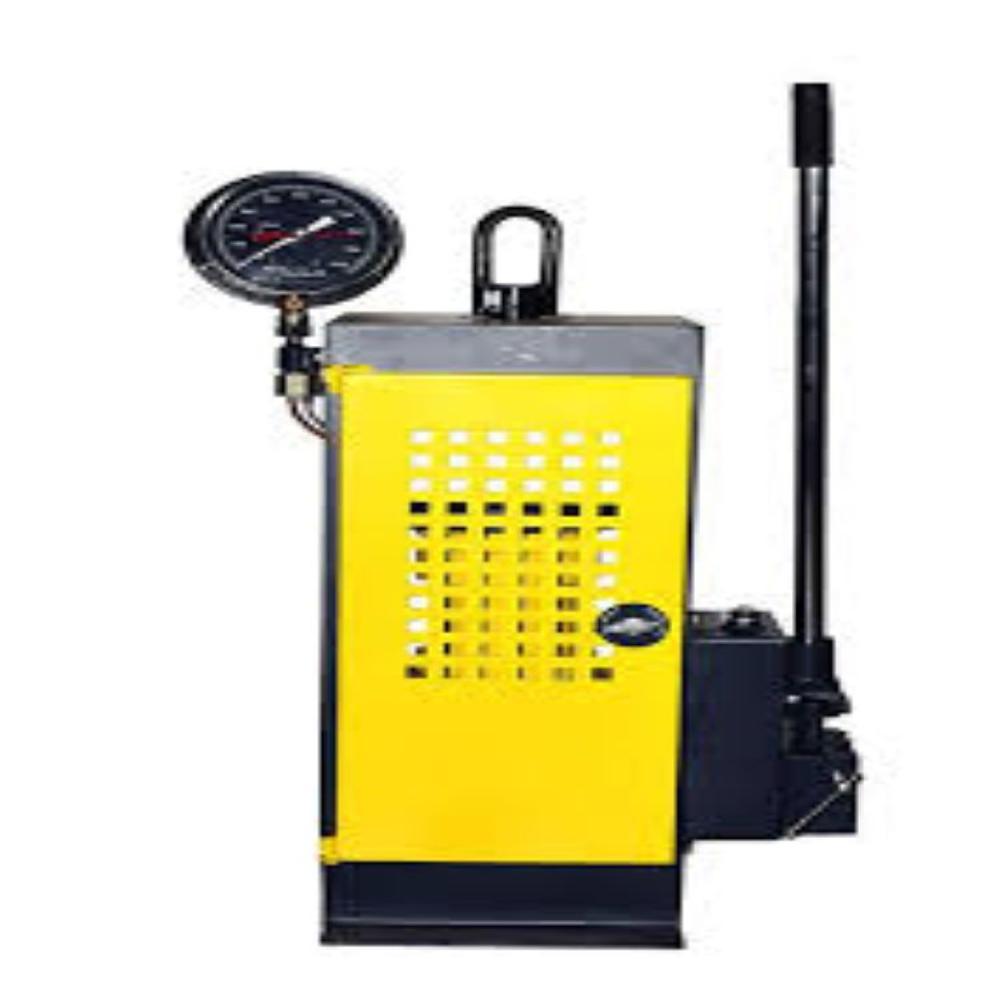

Plate Type CTM, Hand Operated

Name: Plate Type CTM, Hand Operated
Brand: SUBITEK
Price: 40000.0 INR
Availability: InStock

Price 40000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Plate Type CTM, Hand Operated Specification

Display Type
Analog

Gas Pressure
0 to 1 kg/cm

Equipment Type
Plate Type CTM, Hand Operated

Power Supply
Not Required (Manual Operation)

Humidity
5% to 95% RH

Test Range
Up to 100 mm

Port Size
Standard 6 mm

Mounting Type
Table Top

Resolution
1 mm

Temperature
0C to 50C

Automation Grade
Manual

Application
Coefficient of Friction, Peel Strength, Adhesion Testing

Number of Specimens
1

Specimen Size
150 mm x 100 mm

Interface Type
Manual

Accuracy
1 mm

Measuring Range
0 - 100 mm

Features
Portable, Easy to Operate, Robust Body

Response Time
Instantaneous

Max Height
200 mm

Usage
Laboratory Testing, R&D

Capacity
Single Specimen at a Time

Machine Weight
Approx. 35 kg

Test Speed
Manual (Hand Operated)

Test Width
150 mm

Test Stroke
0-100 mm adjustable

Control Mode
Manual

Frame Material
Mild Steel Powder Coated

Accessory Kit
Standard Weight Set Included

Optional Attachments
Digital Gauge Adapter

Grip Type
Adjustable Clamps

Safety Features
Over-Pressure Relief Valve

Finish
Corrosion Resistant

Plate Type CTM, Hand Operated Trade Information

Minimum Order Quantity
1 Piece

FOB Port
coimbatore

Payment Terms
Cash Advance (CA), Cash in Advance (CID)

Supply Ability
1 Piece Per Day

Delivery Time
1 Days

Sample Available
No

Packaging Details
cotton box

Main Export Market(s)
Asia, Africa

Main Domestic Market
Uttar Pradesh, Uttarakhand, West Bengal, Telangana, Tripura, Pondicherry, Central India, West India, North India, East India, Jharkhand, Odisha, Assam, Delhi, Dadra and Nagar Haveli, Andaman and Nicobar Islands, Arunachal Pradesh, Chhattisgarh, Haryana, Himachal Pradesh, Jammu and Kashmir, Madhya Pradesh, Maharashtra, Nagaland, Rajasthan, Sikkim, Tamil Nadu, All India, South India, Gujarat, Karnataka, Kerala, Lakshadweep, Mizoram, Meghalaya, Manipur, Andhra Pradesh, Bihar, Chandigarh, Daman and Diu, Goa, Punjab

About Plate Type CTM, Hand Operated

Specification:

Capacity:1000, 1200, 1500 & 2000 kN

Features:

Sturdy and heavy duty welded frame
Performs reliable compression test on concrete specimens
Suitable for on-site applications where electrical power supply is absent
Simple hydraulic pump makes it portable
Supplied with 200 mm heavy duty precise load indicator
Safety door protection from broken concrete pieces.

Specifications:

Capacity	kN	ZI-2056-1	ZI-2056-2	ZI-2056-3	ZI-2056-4
Ram Diameter	mm	165	165	181	234
Ram Travel	mm	50	50	50	50
Pressure Gauge Dia.	mm	200	200	200	200
Pressure Gauge	kN	1000	1200	1500	2000
Least Count	kN	5	5	5	10
Maximum Pressure	Kg/Sq. cm	480	640	640	480
Platen Diameter	mm	220	220	250	300
Horizontal Clearance	mm	250	250	270	320
Vertical Clearance	mm	310	310	310	310
Load Frame Height	mm	770	770	840	890
Weight (approx)	Kg	240	250	350	500
Spacer Diameter	mm	50 (1pc) 150(1pc)	50 (1pc) 150(1pc)	50 (1pc) 150(1pc)	50 (2pc) 100(1pc)
Specimen can be Tested
Cube	mm	100, 150	100, 150	100, 150	100, 150, 200
Cylinder	mm	100x200	100x200	100x200 150x300	100x200 150x300

Versatile Manual Testing Solution

Designed for laboratories and R&D centers, the Plate Type CTM offers reliable coefficient of friction, peel strength, and adhesion testing without the need for electricity. Its hand-operated mechanism and corrosion-resistant frame make it durable and easy to maintain, ensuring precise measurements for various sample types.

User-Friendly, Safe Operation

Equipped with adjustable clamps, a manual control mode, and a built-in over-pressure relief valve, the device ensures secure and safe testing every time. Its portable, table-top design allows for convenient placement in any testing environment, while the accessory kit facilitates immediate use.

FAQ's of Plate Type CTM, Hand Operated:

Q: How is the Plate Type CTM, Hand Operated set up and operated?

A: The device is mounted on a tabletop, with no power supply required. Specimens are secured using adjustable clamps, and all controls, including stroke and test speed, are manual, allowing precise operation and immediate feedback via the analog display.

Q: What applications are best suited for this CTM model?

A: This model is ideal for laboratory and R&D testing, specifically for measuring the coefficient of friction, peel strength, and adhesion of a variety of materials within a range of up to 100 mm. Its single-specimen capacity suits precision testing environments.

Q: When should the over-pressure relief valve be utilized during testing?

A: The over-pressure relief valve enhances operator safety by automatically releasing excess pressure during tests, safeguarding both the specimen and the device. It activates only if pressure exceeds recommended limits.

Q: Where can this equipment be sourced in India?

A: The Plate Type CTM, Hand Operated, is available throughout India from authorized dealers, distributors, manufacturers, exporters, suppliers, and wholesalers. Contact your preferred laboratory equipment supplier or the manufacturer directly for purchasing information.

Q: What is the process for conducting a test with this machine?

A: To perform a test, mount the specimen (150 mm x 100 mm) using the adjustable clamps, set the required test stroke (up to 100 mm), and manually apply force as per testing requirements. Read results directly on the analog display, ensuring the weight set and optional digital gauge adapter are used if precise measurements are needed.

Q: What are the key benefits of using the Plate Type CTM, Hand Operated?

A: This machine combines portability, ease of operation, and robust construction for accurate laboratory testing. Its manual operation eliminates the need for a power supply, and it is highly durable, with corrosion-resistant finishes for extended lifecycle in demanding testing environments.
