Particle Size Sedimentation (Hydrometer Method)

About Particle Size Sedimentation (Hydrometer Method)

Specification:

Specification:
Particle size analysis of soils:
Hydrometer method
This equipment is used to determine the quantitative size distribution of very fine particle in soils such as clay and silt.

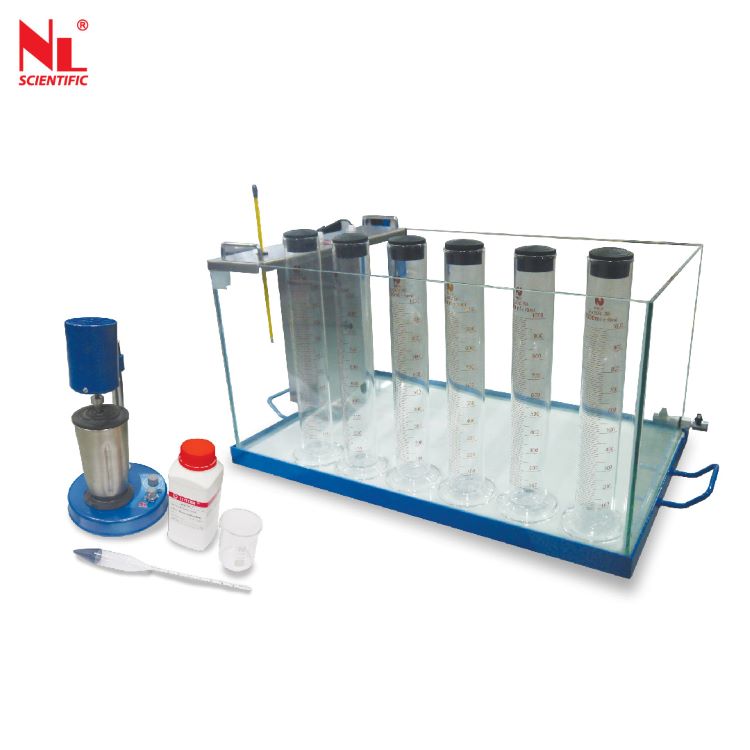

The complete set comprises:

• Sedimentation Cylinder,1000 ml capacity (6pieces) with rubber bungs.Soil Hydrometer,151H, range 0.995 to 1.038g/ml with div. 0.001.Glass Tank,dimensions: 600x300x380 mm
• Heatercomplete with thermostat, circulation unit. 230V Single Phase 50Hz 1000W
• Glass Thermometer,range -10 to 50 C., Sub-div. 0.5 C.
• Beaker,Borosilicate Glass, 250 ml capacity
• Sodium Hexametaphosphate, 1000 g
• High Speed Stirrer, 4000 R.P.M, complete with baffle cup, for dispersing soilparticles in water.

Compliant with Leading Standards

This sedimentation apparatus adheres to IS: 2720 (Part IV) and ASTM D7928 standards, ensuring that particle size analysis achieves high levels of accuracy and reproducibility. Laboratories can trust the hydrometer's results for both academic and practical soil investigations.


Borosilicate Glass Durability

Equipped with a borosilicate glass measuring cylinder and corrosion-resistant hydrometer, this setup withstands common laboratory chemicals. Its robust construction ensures equipment longevity while delivering consistently accurate results.


Manual Operation, No Power Needed

The device features an easy-to-use hand stirrer and does not require any electrical supply. This manual operation promotes safety in laboratory environments, reduces running costs, and ensures reliability regardless of local power conditions.


Precise and Broad Measurement Range

The system provides particle size measurements from 2 micron up to 200 micron, with a 1% accuracy of the full scale and a resolution down to 0.1 micron. This enables professionals to characterize fine and coarse soil fractions effectively for foundational engineering applications.
