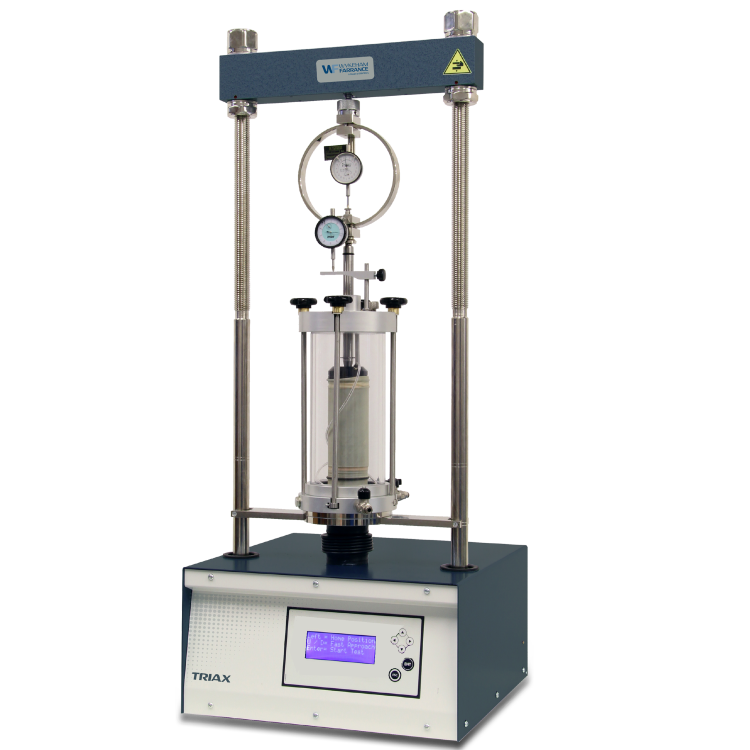

Load Frame, Motorised, 30 Speeds

Get a Price/Quote

MOQ : 1 Piece

Load Frame, Motorised, 30 Speeds Specification

Measuring Range
0-50 kN

Accuracy
1% of indicated load

Resolution
0.01 kN

Max Height
Approx. 750 mm

Humidity
Up to 85% RH (non-condensing)

Number of Specimens
Single specimen at a time

Mounting Type
Tabletop / Floor-standing

Automation Grade
Semi-Automatic

Equipment Type
Motorised Load Frame

Operating Voltage
230V AC

Power Supply
230V AC, 50 Hz

Interface Type
Panel-mounted controls

Response Time
<2 seconds

Specimen Size
Adjustable for various samples

Display Type
Digital

Test Range
Up to 50 kN

Frequency
50 Hz

Features
Heavy-duty construction, Overload protection, Adjustable speed

Temperature
10C to 40C operating range

Port Size
Standard M20 fitting

Application
Soil, Concrete, Bitumen, and Material Testing

Usage
Laboratory and Industrial Testing

Capacity
50 kN

Machine Weight
Approx. 120 kg

Test Speed
30 selectable speeds (0.5 to 50 mm/min)

Test Width
Approx. 100 mm

Test Stroke
Up to 100 mm

Control Mode
Motorised, Automatic

Platen Size
150 mm diameter

Safety Features
Emergency stop switch, thermal overload protection

Travel Limiter
Adjustable limit switches for max/min travel

Load Measurement
Integrated electronic load cell with calibration

Noise Level
< 65 dB

Motor Type
Single-phase AC geared motor

Frame Material
Powder-coated heavy gauge steel

Compliance
Conforms to IS, ASTM, and BS standards

Load Frame, Motorised, 30 Speeds Trade Information

Minimum Order Quantity
1 Piece

FOB Port
coimbatore

Payment Terms
Cash Advance (CA), Cash in Advance (CID)

Supply Ability
1 Piece Per Day

Delivery Time
1 Days

Sample Available
No

Packaging Details
cotton box

Main Export Market(s)
Asia, Africa

Main Domestic Market
South India, North India, East India, Gujarat, Karnataka, Kerala, Lakshadweep, Daman and Diu, Goa, Jharkhand, Odisha, Punjab, Assam, Maharashtra, All India, Central India, West India, Mizoram, Meghalaya, Manipur, Andhra Pradesh, Bihar, Chandigarh, Delhi, Dadra and Nagar Haveli, Haryana, Himachal Pradesh, Jammu and Kashmir, Madhya Pradesh, Nagaland, Rajasthan, West Bengal, Andaman and Nicobar Islands, Arunachal Pradesh, Chhattisgarh, Sikkim, Tamil Nadu, Telangana, Tripura, Pondicherry, Uttar Pradesh, Uttarakhand

About Load Frame, Motorised, 30 Speeds

Specification:

Features:

Two pillar type
Detachable Frame
Enclosed motor and gear system
Jewel lamps indicating direction of motion
Operational ease
Useful for Triaxial and CBR Tests

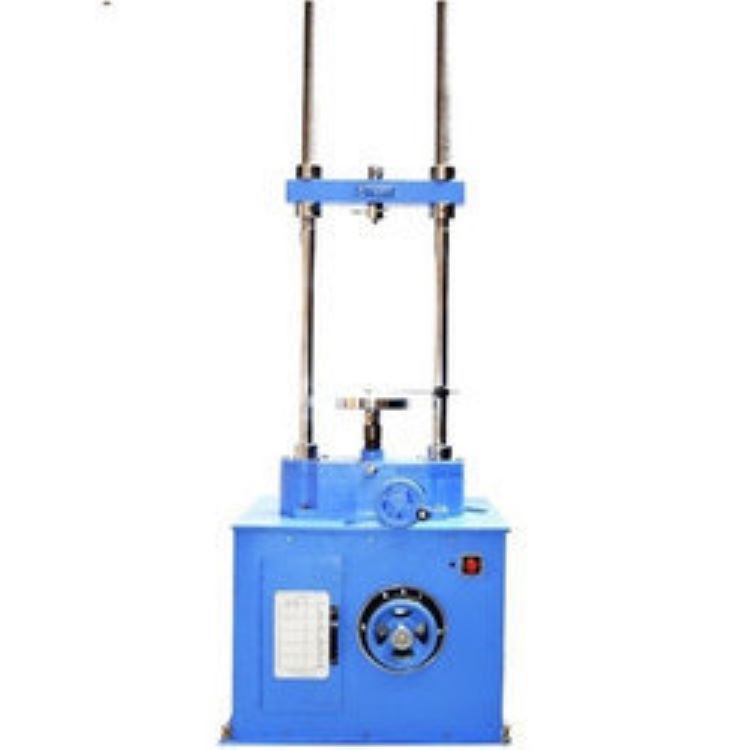

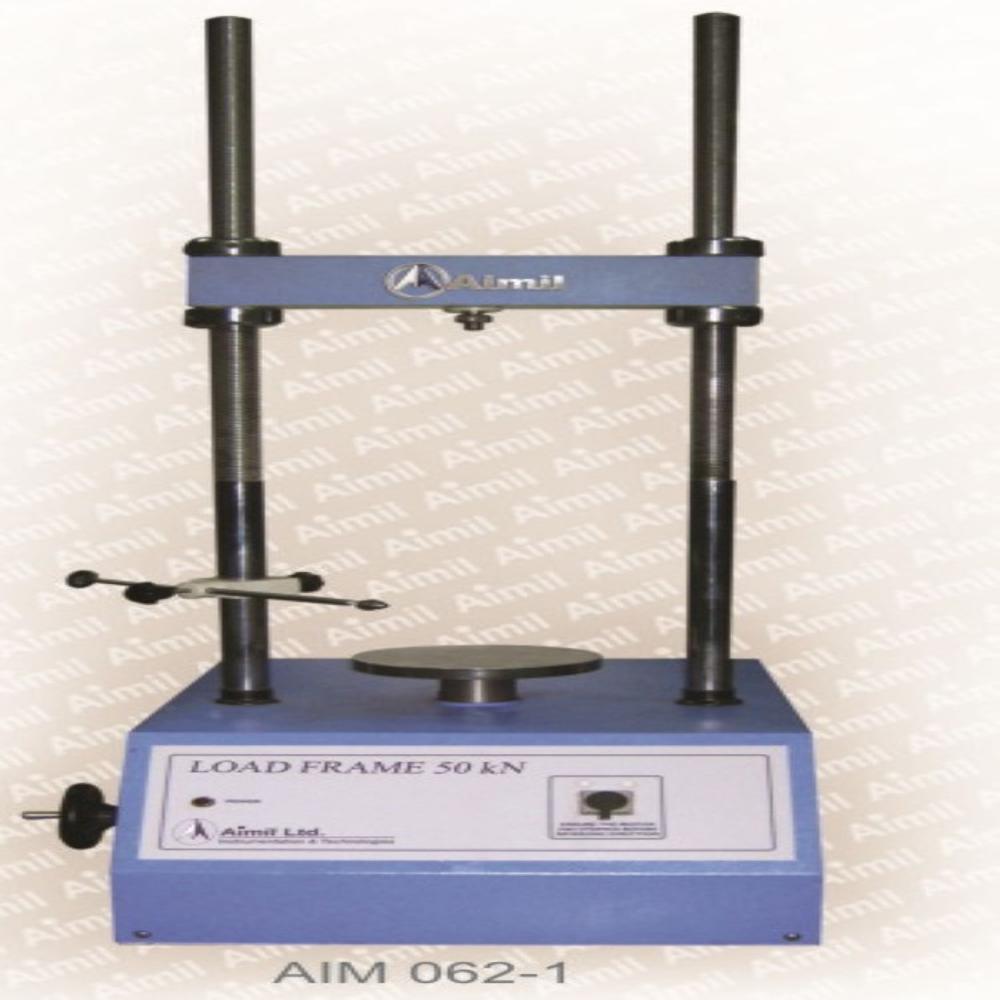

The Load Frame consists of a cabinet which houses the gear system and motor with sturdy angle iron frame. the loading is done through the bottom loading platen, which is carried on a lead screw, which advances upwards. the top load bracket, which slides over two upright pillars, can be positioned at any desired height and locked. It carries a screw adapter for standard Proving rings and Load Cells.
The loading part of the unit is detachable from the main unit for ease of transport and to avoid damage to the tension rods.
Rates of Strain: 30 fixed speeds between 0.00048 mm/min and 6.00 mm/min.
Suitable for operation on 220 V, 50 Hz, single phase, AC supply

Reliable Precision Testing

This load frame ensures high-accuracy measurements with an integrated electronic load cell (1% of indicated load) and digital display, making it ideal for consistent quality control. Select from 30 different speeds to suit a diverse range of testing scenarios.

Durability and Safety

Built with heavy gauge powder-coated steel, the load frame offers durability for continuous laboratory or industrial use. Advanced safety features-including an emergency stop switch and thermal overload protection-are included for operator security.

Versatile Usage and Easy Operation

Suitable for tabletop or floor-standing setups, the frame accommodates single specimens and various sample sizes. The interface features panel-mounted controls with adjustable speed, travel limiters, and real-time load display for straightforward operation.

FAQ's of Load Frame, Motorised, 30 Speeds:

Q: How does the Motorised Load Frame achieve accurate load measurement?

A: The Load Frame incorporates an integrated electronic load cell with calibration that measures loads up to 50 kN, providing an accuracy of 1% of the indicated load and a resolution of 0.01 kN, ensuring reliable testing results.

Q: What materials and types of tests can be conducted using this equipment?

A: This machine is designed for laboratory and industrial testing of soil, concrete, bitumen, and other materials. It facilitates various test methods conforming to IS, ASTM, and BS standards.

Q: When should operators utilize the emergency stop and thermal overload protection features?

A: The emergency stop switch should be used immediately if a safety hazard occurs during operation. Thermal overload protection automatically activates to prevent the motor from overheating, safeguarding both users and the equipment.

Q: Where can the Load Frame be installed for optimal use?

A: The frame is suitable for both tabletop and floor-standing installation, making it adaptable to laboratory and workshop settings with sufficient space and a stable 230V AC power source.

Q: What is the process for adjusting the platen size and accommodating different sample sizes?

A: Operators can adjust the specimen area and platen, which is 150 mm in diameter, to fit various sample sizes. The machine allows testing of single specimens at a time, with adjustable mounting for optimal positioning.

Q: How do adjustable speed and travel limiters benefit laboratory testing?

A: With 30 selectable test speeds ranging from 0.5 to 50 mm/min and adjustable limit switches for maximum and minimum travel, the load frame enables precise control over testing parameters, supporting diverse material assessments.

Q: What advantages does the semi-automatic control mode offer for users?

A: The semi-automatic, motorised control simplifies operation by automating test execution and speed selection, reducing manual handling and ensuring reproducible results for laboratory personnel and quality inspectors.
