High Stability 4 Pillar Compression Testing Machine

Send Inquiry

Request To Call Back

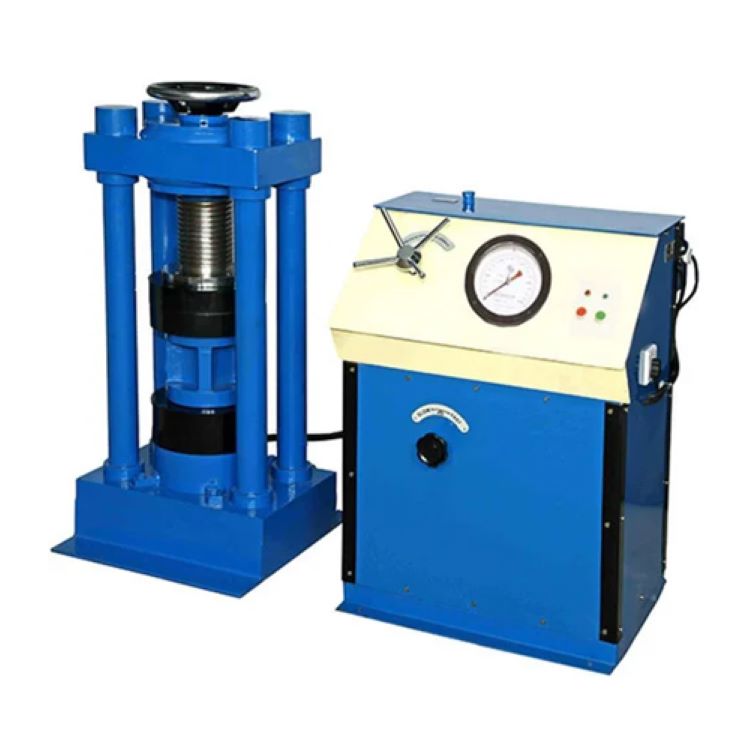

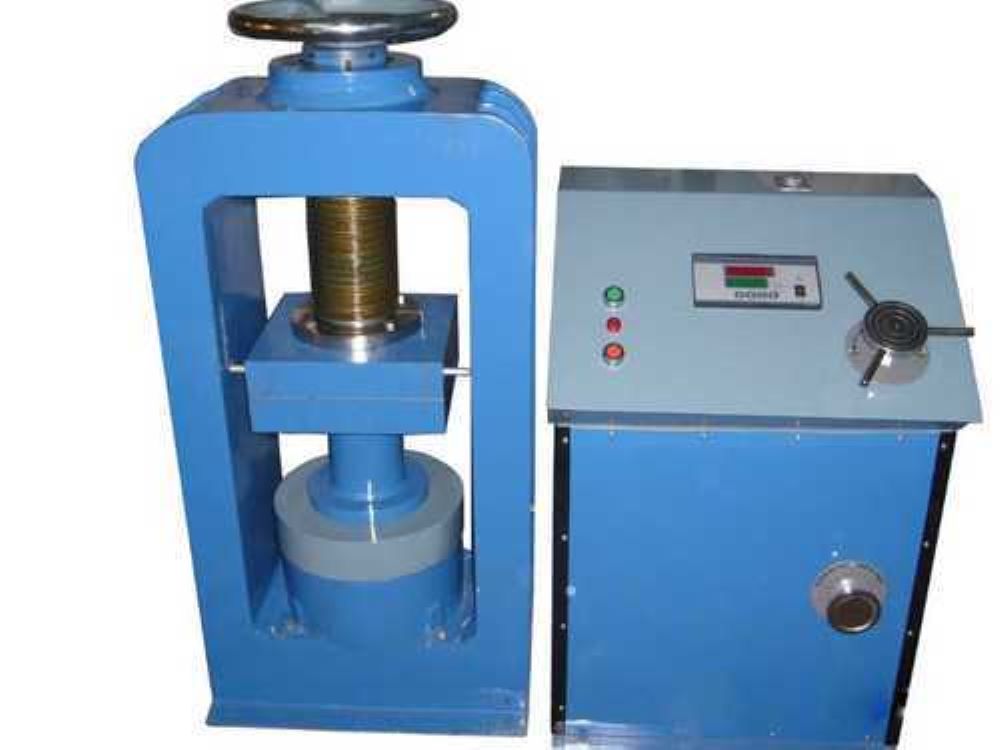

High Stability 4 Pillar Compression Testing Machine

Name: High Stability 4 Pillar Compression Testing Machine
Brand: SUBITEK
Price: 120000.0 INR
Availability: InStock

Price 120000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

High Stability 4 Pillar Compression Testing Machine Specification

Specimen Size
Up to 400 mm width

Automation Grade
Automatic

Accuracy
1% of indicated value

Response Time
<1 second

Hardness
Hardened steel pillars

Operating Voltage
220V AC

Application
Compression testing of concrete, building materials, plastics, metals, etc.

Display Type
Digital LCD display

Frequency
50 Hz

Humidity
Up to 85% RH

Equipment Type
4 Pillar Compression Testing Machine

Features
High stability, over-load protection, integrated digital controls, precision measurement

Mounting Type
Floor standing

Temperature
10C to 40C operating

Interface Type
USB/RS232

Power Supply
AC 220V 10%, 50 Hz

Number of Specimens
1 per test

Gas Pressure
No external gas required

Test Range
0100 kN

Max Height
450 mm

Port Size
Standardcustomizable

Resolution
0.001 kN

Measuring Range
0100 kN

Usage
Industrial quality control and laboratory

Capacity
Up to 100 kN

Machine Weight
Approx. 350 kg

Test Speed
0.01 mm/min to 500 mm/min

Test Width
400 mm

Test Stroke
300 mm

Control Mode
Digital touch screen, Automatic

Protection Class
IP54

Platen Surface
Polished and ground for uniform pressure distribution

Travel Limiter
Micro-switch integrated for safety cut-off

Frame Construction
Heavy-duty 4 pillar solid steel frame for vibration resistance

Motor Type
Precision servo motor for controlled movement

Calibration
Automatic and manual calibration supported

Software Compatibility
Windows-based analysis and reporting

Memory
Integrated memory for test data storage

Compression Rate
Adjustable with fine control

Safety Interlocks
Emergency stop and overload cutoff

High Stability 4 Pillar Compression Testing Machine Trade Information

Minimum Order Quantity
1 Piece

FOB Port
coimbatore

Payment Terms
Cash Advance (CA), Cash in Advance (CID)

Supply Ability
1 Piece Per Day

Delivery Time
1 Days

Sample Available
No

Packaging Details
cotton box

Main Export Market(s)
Africa, Asia

Main Domestic Market
Odisha, Punjab, Haryana, Himachal Pradesh, Jammu and Kashmir, Gujarat, Karnataka, Kerala, Lakshadweep, Mizoram, Meghalaya, Daman and Diu, Goa, Jharkhand, Andaman and Nicobar Islands, Arunachal Pradesh, Chhattisgarh, Assam, Delhi, Dadra and Nagar Haveli, Telangana, Tripura, Pondicherry, Uttar Pradesh, Uttarakhand, West Bengal, Central India, West India, North India, Manipur, Andhra Pradesh, All India, South India, East India, Bihar, Chandigarh, Madhya Pradesh, Maharashtra, Nagaland, Rajasthan, Sikkim, Tamil Nadu

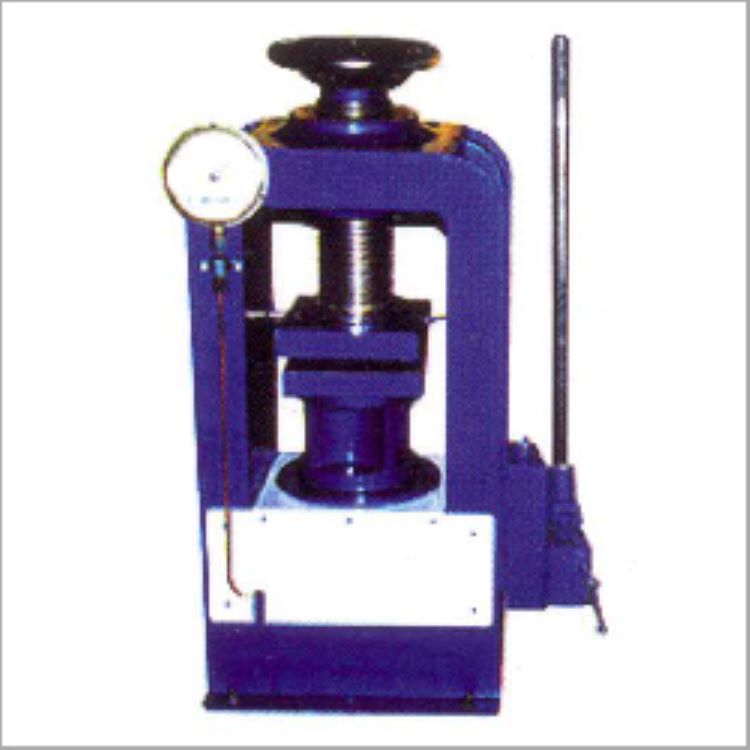

About High Stability 4 Pillar Compression Testing Machine

Specification:

Capacity: 4000 & 5000 kN

The Labtest Automatic range of 4000 kN and 5000 kN capacity four column compression testing machines (Cube Testing Machine) have been designed for reliable and consistent testing of a wide range of specimens. These compression testers are the results of continuous research to upgrade the testing machines with the latest technologies and conform to the latest standards. These also meet the requirements of CE norms for health and safety of the operator.

Compression Testing Machines are supplied with EN compression platens as standard. Machines also comply with the ASTM C39 standard when used together with suitable platens.

Tests can be performed by either on Control Unit or on a computer with using free Labtest Software. The advantages of performing tests on computer with using Labtest Software, such as reporting, graphical output, etc.

The Labtest Automatic range of 4000 kN and 5000 kN capacity four column compression testing machines allow inexperienced operators to perform the tests. Once the machine has been switched on and the specimen is positioned and centered by the help of centering apparatus.

The only required operations are:

Setting test parameters, including pace rate (only required when the specimen type is changed).
Pressing the START button on the control unit
The machine automatically starts the rapid approach, when the specimen touches the upper platen the rapid approach is ended and starts loading at the pace rate that selected by user and stops once the specimen fails.
Automatically saves the test parameters and test results

All models are supplied in Class 1 starting from 50 kN as standard IS 14858:2000, EN 12390-3, 12390-4, BS 1881 and ASTM C39. Labtest range of Semi-Automatic and Automatic Machines can be upgraded with option special calibration Class 1 starting from 1% of the full range.

This exceptional performance enables the machines to be used for a considerable number of applications including:

Early age compression strength tests
Flexural tests by using proper accessories
Mortar (Cement) compression tests by using proper accessories
Core with low diameter compression tests

The compression machines consist of a heavy duty four column frame, automatic hydraulic power pack with data acquisition and control system.

Safety Features

Maximum pressure valves to avoid machine overloading
Front and rear transparent durable plexiglass guards
Emergency stop button
Software controlled maximum load value
Piston travel limit switch

Specifications:

Model		ZI 2061-1	ZI 2061-2
Capacity	kN	4000	5000
Standard	EN	12390-4	12390-4
The roughness value for texture of machine and auxiliary platens	m	< 3.2	< 3.2
Lower platens dimensions	mm	300	300
Upper platens dimensions	mm	300	300
Maximum vertical clearance between platens	mm	520	520
Piston diameter	mm	400	420
Maximum piston movement	mm	100	120
Horizontal clearance	mm	495	515
Power	W	750	750
Oil capacity	Ltrs.	20	20
Maximum working pressure	Bar	315	350
Frame Dimensions	mm	805x710x1370	865x640x1555
Power Pack Dimensions	mm	605x455x1015	605x455x1015
Frame Weight	Kg.	2350	3150
Power Pack Weight	Kg.	150	150

Superior Frame Construction

Built with a heavy-duty 4 pillar solid steel frame, this machine provides enhanced stability and minimal vibration during compression tests. Such robust construction supports consistent performance over extended use and ensures equipment longevity even in demanding industrial settings.

Precision and User Control

The machine's polished and ground platens enable uniform pressure distribution, essential for accurate test results. The adjustable compression rate and fine travel limiter further empower users to tailor each test case, whether for plastics, metals, or concrete specimens up to 400 mm wide.

Safety and Data Management

Safety interlocks such as emergency stop and overload cutoff are standard, while a micro-switch travel limiter safeguards against accidental damage. Integrated memory allows test data to be securely stored, while compatibility with Windows-based software streamlines analysis and reporting.

FAQ's of High Stability 4 Pillar Compression Testing Machine:

Q: How does the four-pillar frame enhance testing stability?

A: The solid steel four-pillar frame construction minimizes vibration and structural flex, providing highly stable support during compression tests, which is crucial for obtaining precise and repeatable results in industrial or laboratory environments.

Q: What types of materials can be tested with this compression machine?

A: This machine is designed for compression testing on a variety of materials, including concrete, building materials, plastics, metals, and other industrial specimens with widths up to 400 mm.

Q: When should I perform calibration on the machine?

A: Calibration should be done upon installation, periodically according to your quality control schedule, after major maintenance, or if test results seem inconsistent. Both manual and automatic calibration modes are supported for convenience.

Q: Where can the compression testing machine be installed?

A: The equipment is floor-standing, suitable for industrial labs, quality control departments, factories, and materials testing sites. Its IP54 rating makes it effective in environments with high humidity (up to 85% RH) and temperatures ranging from 10C to 40C.

Q: What is the process for conducting a compression test?

A: To perform a test, place your specimen (up to 400 mm width) on the polished platen, set up desired test parameters on the digital touch screen, and initiate the test. Data is recorded automatically and can be exported via USB or RS232 interfaces for detailed analysis.

Q: How does the integrated memory benefit users?

A: The integrated memory allows users to conveniently store test data for subsequent analysis and reporting, facilitating traceability and quality control while streamlining workflow within Windows-based environments.

Q: Is external gas or special environmental control required?

A: No external gas supply is required. The machine is designed to operate efficiently in most conditions found in standard industrial facilities, handling humidity up to 85% and temperatures between 10C and 40C.
