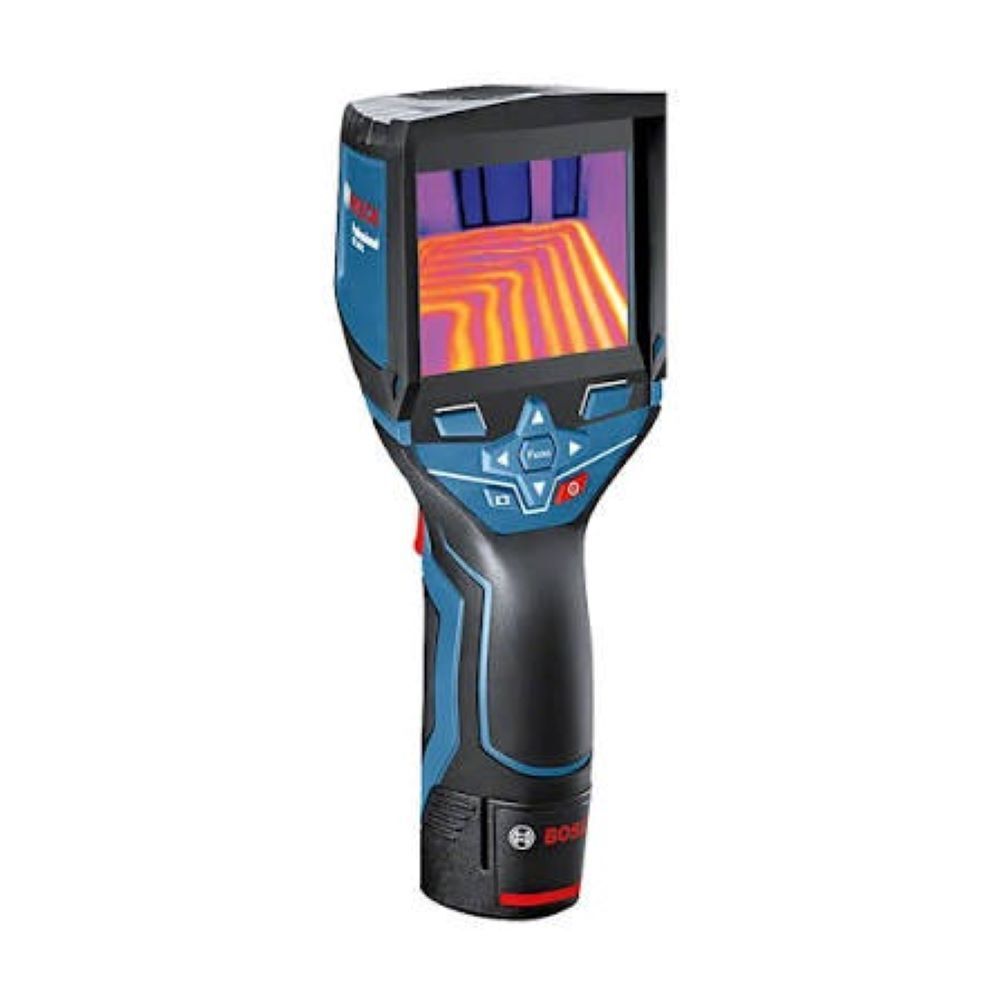

GTC 400 C Professional Thermal Detector & Inspection Camera

Send Inquiry

Request To Call Back

GTC 400 C Professional Thermal Detector & Inspection Camera

Name: GTC 400 C Professional Thermal Detector & Inspection Camera
Brand: SUBITEK
Price: 70000 INR
Availability: InStock

Price 70000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

GTC 400 C Professional Thermal Detector & Inspection Camera Specification

Interface Type
Micro USB, Wi-Fi connectivity

Humidity
10% - 90% RH (non-condensing)

Operating Voltage
12V (battery powered)

Power Supply
Rechargeable 12V Lithium-ion battery

Response Time
< 500 ms

Automation Grade
Manual

Temperature
Operating: -10C to +45C

Application
Thermal inspection, electrical diagnostics, HVAC, and building inspection

Measuring Range
-10C to +400C (14F to 752F)

Accuracy
3C or 3% (whichever is greater)

Port Size
USB Micro-B (for data transfer)

Mounting Type
Handheld

Equipment Type
Professional Thermal Detector & Inspection Camera

Test Range
-10C to +400C

Features
Image blending, Wi-Fi connectivity, data storage, emissivity adjustment

Display Type
3.5 TFT color display

Resolution
Infrared sensor: 160 x 120 pixels

Usage
Thermal detection and visual inspection

Machine Weight
0.54 kg

Control Mode
Manual & Digital

Image File Format
.jpg (with thermal and visual data)

Infrared Image Field of View
71 x 56

Camera Resolution (Visual)
0.3 MP (640 x 480 pixels)

Battery Life
Up to 4 hours (continuously)

Data Storage
MicroSD card 8 GB included, expandable

Physical Dimensions
217 x 95 x 122 mm

Camera Protection Rating
IP53 (dust and splash resistant)

Number of Images Storage
Up to 500 visual and thermal images

Thermal Sensitivity (NETD)
<50 mK

Operating System Compatibility
Windows, Android via GTC Transfer software

Laser Type
Class 2, 635 nm, <1 mW

GTC 400 C Professional Thermal Detector & Inspection Camera About

Product Details:

Minimum Order Quantity	1 Piece
Temperature range	-10 to 400 C
Display	LCD
Accuracy	0.1
Focus type	Auto focus
Connectivity	USB
Connectivity	WiFi
Display size	3.5 inch
Warranty	1 Year
Country of Origin	Made in India
Model	GTC 400 C
IR resolution	256x192
Brand	Bosch

Smart & immediate thermographic inspection of temperature!
Fast exchange of data and easy documentation of thermal images with the Bosch Thermal App
Picture-in-picture technology overlays thermal and real images for easy-to-see localisation of the measurement
Flexible battery system can be powered by a 12 V LI-ION battery or with standard alkaline batteries
Equipment & Application - It is ideal for inspecting insulation, heating systems, heat flow, and for finding overheated parts.

High-Precision Thermal Imaging

The GTC 400 C offers advanced infrared imaging with an infrared sensor resolution of 160 x 120 pixels and a visible image resolution of 1920 x 1080 pixels. Accurate to within 3C or 3%, the device supports accurate diagnosis in temperatures ranging from -10C to +400C, making it indispensable for professionals in construction, electrical, and HVAC fields.

User-Friendly with Advanced Features

Ease of use meets advanced technology with a 3.5-inch TFT color display, intuitive manual and digital control modes, and adjustable emissivity for various materials. Image blending, Wi-Fi connectivity, and data storage empower users to analyze and share results swiftly, while a built-in laser pointer and tripod mount enhance targeting and stability during inspections.

Reliable and Durable for Tough Environments

Engineered for reliability, the GTC 400 C is dust- and splash-resistant (IP53) and operates in humidity from 10% to 90% RH (non-condensing). Its rechargeable 12V lithium-ion battery delivers up to 4 hours of runtime, and the device recharges fully in less than 2 hours-ensuring consistent performance in both indoor and outdoor settings.

FAQ's of GTC 400 C Professional Thermal Detector & Inspection Camera:

Q: How does the GTC 400 C Professional Thermal Detector capture and store images?

A: The device is equipped with a 4 GB internal memory capable of storing up to 500 thermal images. Images are saved in .jpg format, complete with embedded thermal measurement data, allowing for easy documentation and analysis.

Q: What applications is the GTC 400 C best suited for?

A: This thermal detector is ideal for thermal inspection, electrical diagnostics, HVAC assessments, and building inspections. Its wide temperature range (-10C to +400C) and high sensitivity make it suitable for detecting heat loss, identifying electrical faults, and inspecting mechanical systems.

Q: When should the emissivity adjustment feature be used?

A: Emissivity adjustment (0.01 to 1.00) should be used when measuring temperatures of surfaces with varying material properties. Adjusting emissivity improves temperature measurement accuracy, depending on whether the surface is shiny metal, painted, or non-metallic.

Q: Where can the GTC 400 C be mounted during use?

A: The device comes with a 1/4-inch tripod mount, allowing it to be securely positioned on standard tripods. This feature is particularly useful for stationary monitoring or when stability is required during detailed inspections.

Q: What benefits does Wi-Fi connectivity provide?

A: Wi-Fi connectivity allows users to instantly transfer images and thermal data for remote viewing or sharing with colleagues. This streamlines reporting processes and enhances productivity during onsite inspections.

Q: How long can I use the GTC 400 C before needing to recharge the battery?

A: With its rechargeable 12V lithium-ion battery, the GTC 400 C offers up to 4 hours of continuous usage, depending on operating conditions. The battery recharges in under 2 hours, ensuring minimal downtime between uses.

Q: Can the thermal detector be used in humid or outdoor environments?

A: Yes, the GTC 400 C is engineered for rugged use, featuring an IP53 protection rating for dust and splash resistance. It operates reliably in environments with humidity levels ranging from 10% to 90% (non-condensing).
