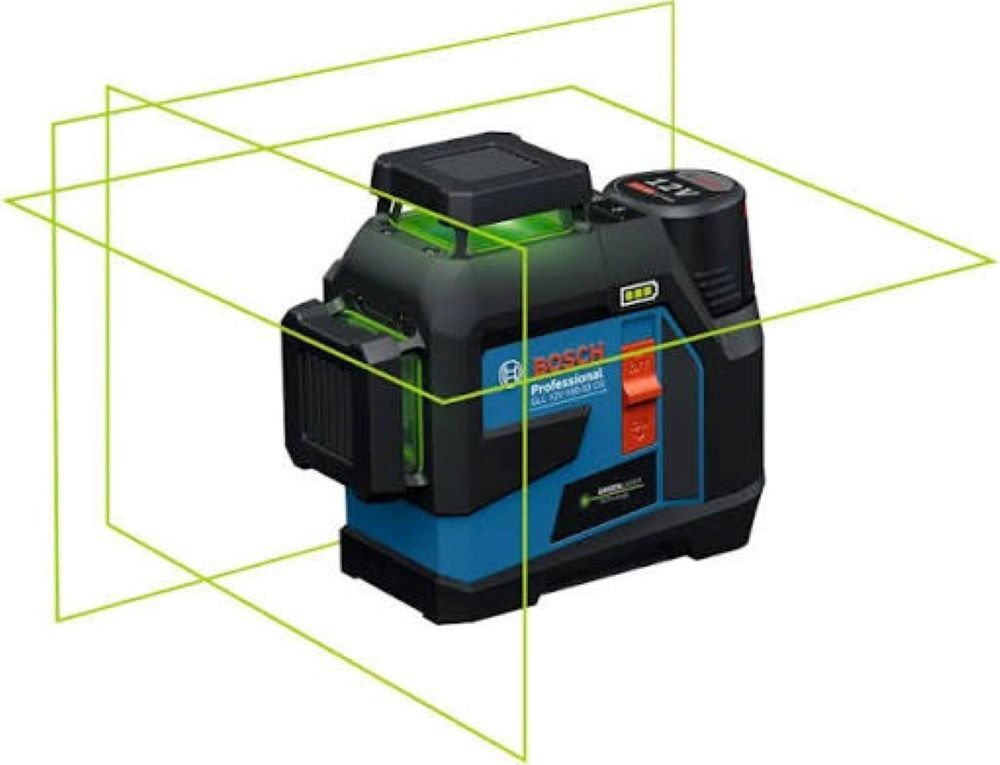

GLL 18V-120-33 CG Professional Laser

Name: GLL 18V-120-33 CG Professional Laser
Brand: SUBITEK
Price: 88000 INR
Availability: InStock

Price 88000 INR/ Number

Get a Price/Quote

MOQ : i Number

GLL 18V-120-33 CG Professional Laser Specification

Response Time
Instant laser projection

Resolution
Highly accurate fine laser line

Mounting Type
Tripod or wall mountable

Frequency
60 Hz (laser pulse)

Equipment Type
Professional Laser Level

Power Supply
18V Rechargeable Li-ion Battery

Accuracy
0.2 mm/m

Automation Grade
Semi-automatic (self-leveling up to 4)

Features
3 x 360 green laser lines, high visibility, Bluetooth control, robust housing, easy operation

Humidity
Up to 85% RH, non-condensing

Display Type
No display, visible green laser lines

Interface Type
Bluetooth connectivity

Operating Voltage
18V

Application
Construction, Interior Fitting, Leveling, Squaring, Alignment

Measuring Range
Up to 120 meters (with receiver)

Temperature
-10C to +40C (Operating)

Usage
Professional leveling, alignment, indoor/outdoor tasks

Machine Weight
1.35 kg

Control Mode
Manual/Automatic (via Bluetooth)

Laser Class
Class 2

Self-leveling Range
4

Tripod Thread
1/4'' and 5/8''

Battery Runtime
Up to 6 hours (All lines on, 18V 2.0Ah battery)

Dust and Splash Protection
IP54

Laser Diode
500 - 540 nm, <10mW, Green Laser

Remote Operation
Compatible with Bosch Levelling Remote App

Dimensions
178 x 136 x 117 mm

GLL 18V-120-33 CG Professional Laser About

Additional data

Tripod thread

1/4 5/8

Working range, value

35 m

Battery voltage

18.0 V, 4 x 1.5 V LR14 (C), 12.0 V

Laser diode

500 -540 nm, < 10 mW

Operating temperature

-10 - 40 C

Storage temperature

-20 - 70 C

Laser class

Working range with receiver

120 m (radius)

Accuracy

0.3 mm/m

Self-levelling range

Levelling time

3 s

Dust and splash protection

IP65

Power supply

4 x 1.5 V LR14 (C), 12 V Li-Ion battery, 18 V Li-Ion battery

Operating time (max.)

20 h (18V 4Ah Li-Ion), 8 h (12V 2Ah Li-Ion), 8 h (4 x C, energy saving mode) in 3-line mode

Weight, approx.

1.3 kg

Colour of laser line

Green

Projection

3 x 360 line

Compatible laser receivers

LR 7

Weight with 4.0 Ah battery

1.9 kg

Weight with alkaline batteries

1.8 kg

Exceptional Precision and Green Laser Visibility

The GLL 18V-120-33 CG Professional Laser stands out with its advanced green laser technology, providing highly visible 3 x 360 laser lines for precise leveling, squaring, and alignment. Its accuracy of 0.2 mm/m ensures superior results for construction and interior fitting projects, even in brightly lit spaces.

Intelligent Control and Efficient Operation

Seamlessly operate the device through manual controls or remotely with the Bosch Levelling Remote App using Bluetooth connectivity. The robust Li-ion 18V rechargeable battery offers up to 6 hours of continuous use, supporting extended work sessions without frequent interruptions.

Rugged Design for Challenging Environments

Built with IP54 protection, this professional laser level is resistant to dust and splashes, making it suitable for tough construction sites. Its compact dimensions and lightweight build enhance portability and ease of installation on tripods or wall mounts, adapting to a range of working conditions.

FAQ's of GLL 18V-120-33 CG Professional Laser:

Q: How does the self-leveling feature of the GLL 18V-120-33 CG operate?

A: The GLL 18V-120-33 CG features a semi-automatic self-leveling mechanism that automatically levels within a 4 range. This ensures precise horizontal and vertical lines without manual adjustment, ideal for tasks requiring accuracy over uneven surfaces.

Q: What benefits does the green laser technology offer in this model?

A: Green laser lines are significantly more visible to the human eye than red, especially in bright indoor or outdoor conditions. This ensures easier alignment and improved precision, enhancing productivity on construction sites and interior projects.

Q: When should I use the Bosch Levelling Remote App for operation?

A: The Bosch Levelling Remote App is best used for remote operation when direct access to the laser is limited or when working at a distance. It allows you to switch control modes, operate the device, and align lines conveniently via Bluetooth connectivity.

Q: Where can I mount the GLL 18V-120-33 CG Professional Laser?

A: This laser level is compatible with both 1/4" and 5/8" tripod threads and can be mounted on standard tripods or wall mounts. It adapts easily to various jobsite setups for maximum flexibility in industrial and interior settings.

Q: What is the recommended process for battery charging and replacement?

A: To ensure continuous operation, recharge the 18V Li-ion battery using the compatible charger. The battery provides up to 6 hours of runtime with all laser lines on. For extended projects, keep a spare fully charged battery on hand for quick swaps.

Q: How does the IP54 rating benefit users in real-world applications?

A: With an IP54 rating, the GLL 18V-120-33 CG is safeguarded against dust ingress and water splashes, making it suitable for both indoor and outdoor work environments where durability and reliability are essential.

Q: What are the main applications and who should use this laser level?

A: This professional laser level is designed for construction, leveling, squaring, and interior fitting tasks. It is ideal for dealers, contractors, distributors, manufacturers, and professionals who require accurate measurements and robust performance in demanding conditions.
