GTC 450-13 Professional Thermal Detector & Inspection Camera

Send Inquiry

Request To Call Back

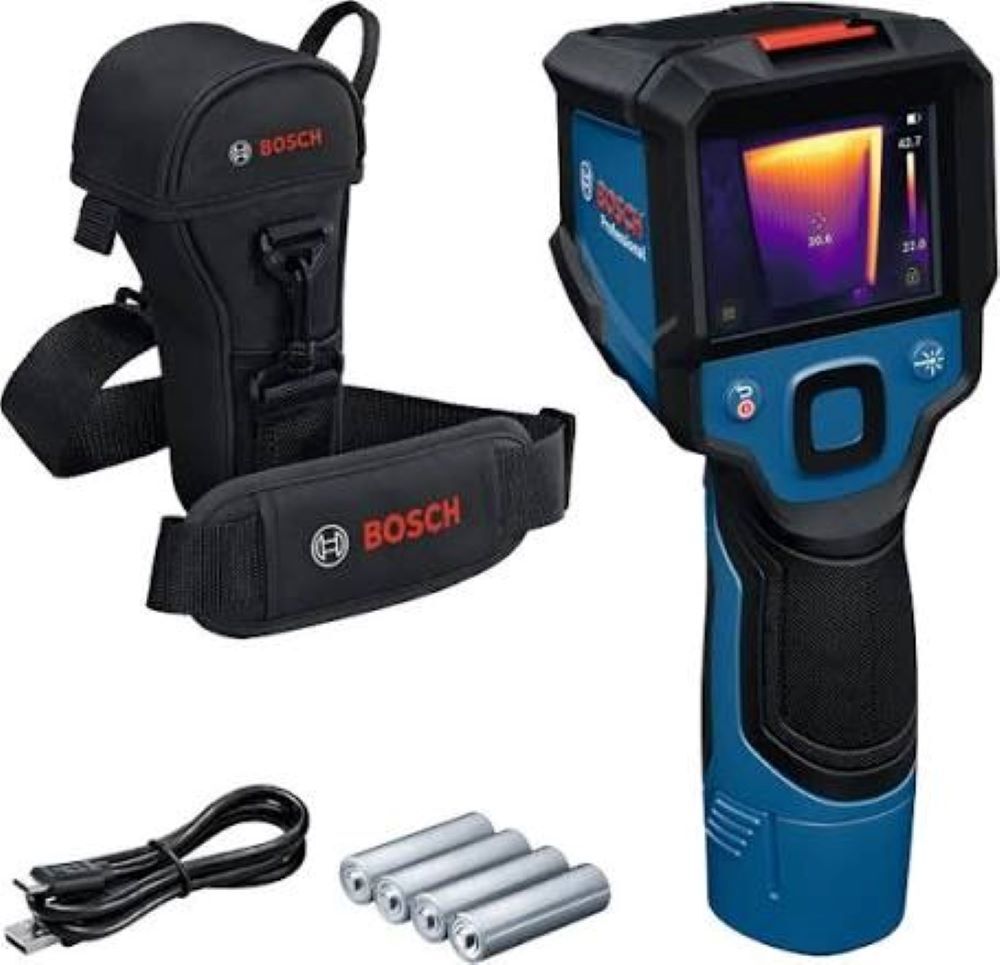

GTC 450-13 Professional Thermal Detector & Inspection Camera

Name: GTC 450-13 Professional Thermal Detector & Inspection Camera
Brand: SUBITEK
Price: 72000 INR
Availability: InStock

Price 72000 INR/ Number

Get a Price/Quote

MOQ : 1 Number

GTC 450-13 Professional Thermal Detector & Inspection Camera Specification

Mounting Type
Handheld

Power Supply
AA Alkaline Batteries (x4) or micro-USB

Humidity
10% to 90% RH

Response Time
< 0.5 seconds

Temperature
-10C to +400C

Operating Voltage
Battery-powered (4 x AA) or via USB

Application
Detecting temperature anomalies and thermal inspection

Measuring Range
-10C to +400C

Features
Thermal image overlay, data storage, image blending, adjustable emissivity

Equipment Type
Thermal Detector and Inspection Camera

Resolution
80 x 60 thermal sensor pixels

Hardness
Industrial-grade outer shell

Test Range
Temperature range: -10C to +400C

Automation Grade
Manual

Port Size
USB Micro-B (Data Transfer)

Accuracy
3C or 3% (whichever is greater)

Interface Type
USB Micro-B

Max Height
18 cm (approx. device height)

Display Type
3.5 inch color display

Usage
Industrial, electrical and building inspections

Machine Weight
0.6 kg (approx.)

Control Mode
Manual

Image Storage
MicroSD card

Field of View
53 x 43

Battery Operating Time
Up to 6 hours

Emissivity
Adjustable from 0.01 to 1.00

Protection Rating
IP53

Image Modes
Thermal, picture-in-picture, overlay

Thermal Sensitivity (NETD)
<50 mK

GTC 450-13 Professional Thermal Detector & Inspection Camera About

Product Details

Minimum Order Quantity1 Piece

ModelGTC 45013

Accuracy2 C

Focus typeAuto focus

ConnectivityUSB

Display size35 inch

IR resolution256x192

Temperature range20 to 450C

The Bosch GTC 45013 is a professionalgrade thermal imaging camera designed for contactless surface temperature measurement and visualization of temperature differences Its an entrylevel thermal camera suited for a wide range of professional applications in HVAC electrical automotive industrial inspection and renovation work

Typical Uses

Locating heating pipes and insulation issues

Inspecting HVAC systems

Detecting overheating electrical components

Checking automotive thermal profiles

General temperature diagnostics in buildings or machinery

Thanks to its rugged housing IP54 protection class and drop resistance the GTC 45013 is suitable for onsite professional environments where tools undergo physical stress
