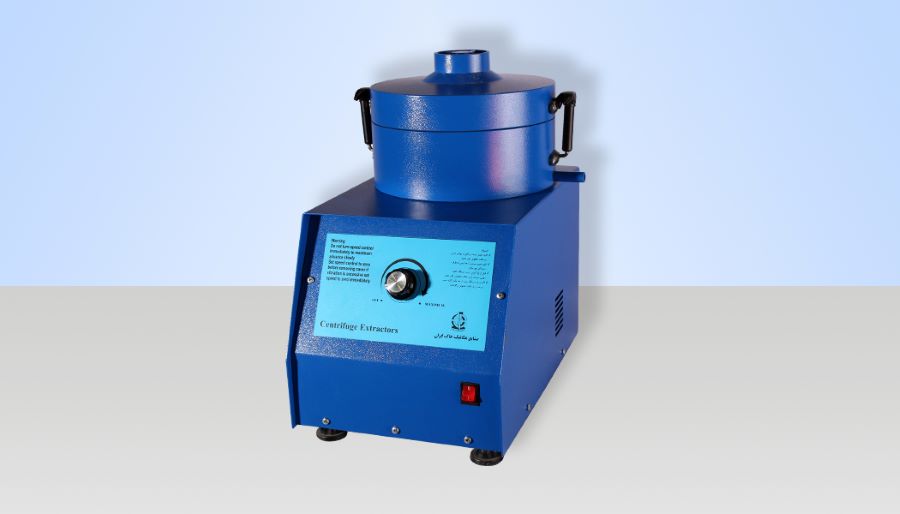

Centrifuge Extractor (Motorised) (ASTM)

Name: Centrifuge Extractor (Motorised) (ASTM)
Brand: SUBITEK
Price: 25000.0 INR
Availability: InStock

Get a Price/Quote

MOQ : 1 Piece

Centrifuge Extractor (Motorised) (ASTM) Specification

Response Time
Immediate

Number of Specimens
Single Specimen per Test

Test Range
Up to 1500 g sample size

Display Type
Analog (RPM Meter/Timer)

Interface Type
Manual Controls

Temperature
Room Temperature Operation (10°C to 50°C)

Mounting Type
Benchtop

Accuracy
±0.5% of reading

Resolution
1 g

Max Height
450 mm (approx.)

Power Supply
230V AC, 50 Hz, Single Phase

Operating Voltage
230V AC

Frequency
50 Hz

Specimen Size
Accepts standard 1500 g cup

Automation Grade
Semi-Automatic

Application
Bitumen and asphalt testing as per ASTM standards

Features
Removable aluminum extraction bowl, easy cleaning, robust construction, safety cover with interlocking mechanism, vibration free operation, ASTM compliant design

Humidity
Up to 90% RH (non-condensing)

Usage
Extraction of bitumen content from pavement mixture

Capacity
1500 g (1.5 kg)

Machine Weight
55 kg (approx.)

Test Speed
3600 RPM (Revolutions Per Minute)

Control Mode
Motorised, Electrically Controlled

Material of Bowl
Cast Aluminum Extraction Bowl

Safety Features
Interlocking lid prevents operation when open

Drive System
Belt Driven Electric Motor

Finish
Powder Coated/Stainless Steel

Cooling
Air cooled operation

Equipment Type
Centrifuge Extractor (Motorised)

Compliance Standard
ASTM D2172

Timer
Programmable up to 60 minutes

Accessories Included
Set of 1 extractor bowl, filter paper pack, operating manual

Noise Level
< 65 dB at full speed

Motor Power
0.5 HP (approx.)

Centrifuge Extractor (Motorised) (ASTM) Trade Information

Minimum Order Quantity
1 Piece

FOB Port
coimbatore

Payment Terms
Cash in Advance (CID), Cash Advance (CA)

Supply Ability
1 Piece Per Day

Delivery Time
1 Days

Sample Available
No

Packaging Details
cotton box

Main Export Market(s)
Africa, Asia

Main Domestic Market
All India, South India, Central India, West India, North India, East India, Gujarat, Karnataka, Kerala, Lakshadweep, Mizoram, Meghalaya, Manipur, Andhra Pradesh, Bihar, Daman and Diu, Goa, Jharkhand, Delhi, Dadra and Nagar Haveli, Madhya Pradesh, Maharashtra, Nagaland, Rajasthan, Sikkim, Tamil Nadu, Telangana, Chandigarh, Odisha, Punjab, Assam, Tripura, Pondicherry, Uttar Pradesh, Uttarakhand, West Bengal, Andaman and Nicobar Islands, Arunachal Pradesh, Chhattisgarh, Haryana, Himachal Pradesh, Jammu and Kashmir

About Centrifuge Extractor (Motorised) (ASTM)

Specification:

Used for the determination of bitumen percentage in bituminous mixtures. It consists of a removable, precision machined aluminium rotor bowl (accessory 1500 or 3000 g capacity), housed in a cylindrical aluminium box. The separate control panel incorporates an electronic card fitted with AC drive that automatically drives the bowl speed rotation ramp from 0 to 3600 R.P.M. as requested by Standards, with automatic fast stop bowl rotation at the end of the test. Supplied complete with speed regulator and digital display monitoring the frequency. Power supply: 230 V A.C. Single Phase

Precise Extraction Performance

Engineered for ASTM-compliant bitumen and asphalt testing, the centrifuge extractor delivers reliability and accuracy with each use. Its motorised controls and programmable timer facilitate variable testing procedures, while the air-cooled operation ensures sustained performance in high-humidity environments. Vibration-free operation further enhances result consistency, making it an essential addition to any pavement analysis laboratory.

Enhanced Safety and Usability

This extractor prioritizes operator safety with a safety cover equipped with an interlocking mechanism, preventing operation when the lid is open. The analog RPM meter and timer ensure straightforward monitoring, while manual controls simplify specimen handling. Its removable aluminum bowl and powder-coated/stainless steel finish enable easy cleaning and robust longevity in daily testing scenarios.

FAQ's of Centrifuge Extractor (Motorised) (ASTM):

Q: How does the interlocking lid improve safety during operation?

A: The interlocking lid prevents the centrifuge extractor from operating when it is open, thereby safeguarding users from accidental contact with moving parts and ensuring compliance with laboratory safety protocols.

Q: What is the recommended usage process for extracting bitumen content as per ASTM D2172?

A: To extract bitumen content, place the pavement mixture in the supplied 1500 g extraction bowl, add filter paper, secure the lid, and program the timer as required. The motorised centrifuge separates bitumen efficiently while maintaining accuracy within 0.5% of reading.

Q: When should the extractor bowl be cleaned, and what are the benefits of its removable design?

A: The extraction bowl should be cleaned after each test to maintain sample integrity and prevent cross-contamination. Its removable cast aluminum design allows for quick and thorough cleaning, enhancing workflow and equipment longevity.

Q: Where can this centrifuge extractor be used, and what is its mounting style?

A: Designed for laboratory and industrial settings, the extractor is mounted benchtop, making it suitable for professional facilities engaged in pavement material analysis across dealer, distributor, manufacturer, and research environments in India.

Q: What accessories are included with the centrifuge extractor for immediate operation?

A: The unit comes complete with an extractor bowl, a filter paper pack, and an operating manual, ensuring readiness for bitumen extraction procedures upon installation.

Q: How does the air-cooled operation contribute to performance in high humidity conditions?

A: Air-cooled operation maintains optimal internal temperature, allowing efficient extraction performance even in environments with up to 90% relative humidity without risk of condensation or overheating.

Q: What are the benefits of the vibration-free operation for bitumen testing accuracy?

A: Vibration-free operation minimizes measurement variability, enhancing the precision of bitumen content determination and ensuring consistent, reliable results during testing.
