Portable Core Cutting Drilling Machine Petrol Driven

Send Inquiry

Request To Call Back

Portable Core Cutting Drilling Machine Petrol Driven

Name: Portable Core Cutting Drilling Machine Petrol Driven
Brand: SUBITEK
Price: 100000.0 INR
Availability: InStock

Price 100000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Portable Core Cutting Drilling Machine Petrol Driven Specification

Number of Specimens
Single drill operation

Display Type
Analog depth gauge

Operating Voltage
N/A (Petrol engine)

Hardness
Suitable for drilling high strength concrete/asphalt

Power Supply
Petrol Engine Driven

Measuring Range
Core diameter: 25 mm to 150 mm

Application
For concrete, asphalt, and rock core sampling

Frequency
N/A (Petrol driven)

Mounting Type
Portable, wheeled trolley mount

Max Height
1200 mm (including handles and rods)

Humidity
Operational up to 95% RH

Equipment Type
Portable Core Cutting Drilling Machine

Interface Type
Manual mechanical operations

Automation Grade
Semi-automatic/manual

Port Size
Standard core barrel fittings

Specimen Size
Cores up to 150 mm diameter

Accuracy
2 mm on core sample diameter

Test Range
Drilling cores 25 mm to 150 mm diameter

Resolution
1 mm core diameter

Temperature
Operational range -10C to +50C

Response Time
Instantaneous as per drilling operation

Features
Petrol engine driven, portable, adjustable feed

Usage
Civil engineering sampling, quality inspection

Capacity
Petrol engine: 5.5 HP

Machine Weight
Approximately 80-90 kg

Test Speed
Variable, up to 500 rpm

Test Stroke
Up to 500 mm

Control Mode
Manual and semi-automatic

Cooling Method
Water injection via built-in tank

Noise Level
Below 105 dB

Core Barrel Length
Up to 450 mm

Mobility
Fitted with wheels for easy transport

Accessory Compatibility
Compatible with standard core barrels and bits

Colour
Painted orange/black

Drilling Depth
Up to 450 mm

Fuel Tank Capacity
3 L

Drive Mechanism
Chain and gear

Engine Type
Air-cooled, 4-stroke petrol engine

Frame Material
Heavy-duty steel construction

Safety Features
Emergency stop, engine overload protection

Portable Core Cutting Drilling Machine Petrol Driven Trade Information

Minimum Order Quantity
1 Piece

FOB Port
coimbatore

Payment Terms
Cash Advance (CA), Cash in Advance (CID)

Supply Ability
1 Piece Per Day

Delivery Time
1 Days

Sample Available
No

Packaging Details
cottonbox

Main Export Market(s)
Asia, Africa

Main Domestic Market
All India, South India, Central India, West India, Meghalaya, Manipur, Andhra Pradesh, Bihar, Chandigarh, Daman and Diu, Goa, Jharkhand, Odisha, Punjab, Assam, Delhi, Dadra and Nagar Haveli, Andaman and Nicobar Islands, Rajasthan, Sikkim, Tamil Nadu, Telangana, Tripura, Pondicherry, Uttar Pradesh, Madhya Pradesh, Maharashtra, Nagaland, Uttarakhand, West Bengal, North India, East India, Gujarat, Karnataka, Kerala, Lakshadweep, Mizoram, Arunachal Pradesh, Chhattisgarh, Haryana, Himachal Pradesh, Jammu and Kashmir

About Portable Core Cutting Drilling Machine Petrol Driven

Specification:

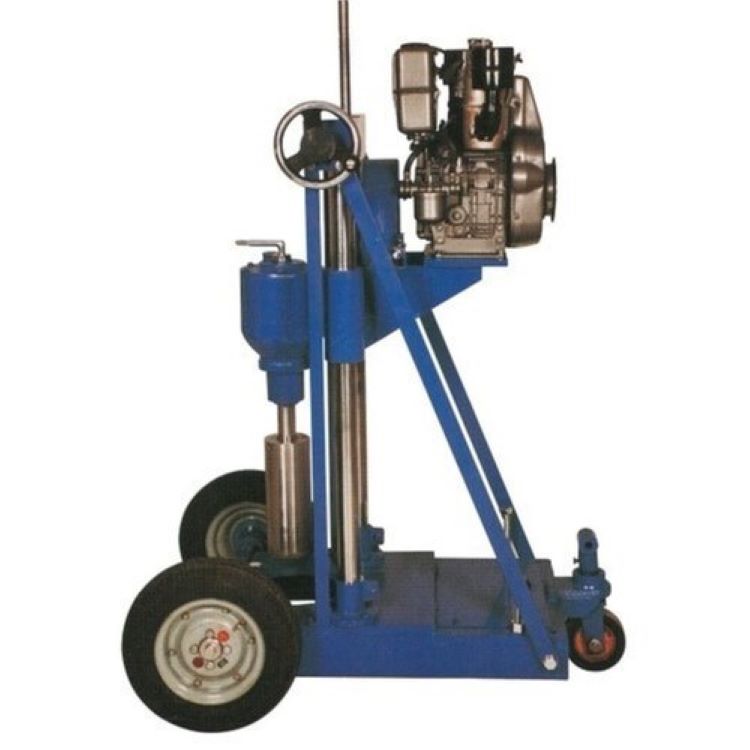

Compact and portable Labtest core drilling machine is designed to cut cores up to 200 mm diameter from concrete, asphalt and similar hard construction materials. The machine comprises a vertical support column which carries the drill head/motor assembly. The motor assembly comprises a 6.5 hp petrol engine. A ball screw mechanism enables close control of the drilling pressure and rapid return when drilling is completed. A water spraying assembly is mounted on the machine. The complete assembly is supplied on a rigid wheel mounted metal base frame with leveling and fixing facility during the operation.
Weight (approx) : 100 Kg
Power : Petrol Engine 6.5 HP
Briggs & Stratton USA

Engine Efficiency and Mobility

Equipped with a powerful, air-cooled, 4-stroke petrol engine, this core cutting drilling machine delivers consistent performance in demanding field conditions without dependence on electrical sources. Its robust wheels and portable trolley mounting design make it highly mobile and easy to maneuver, reducing fatigue during movement between sampling locations.

Precision Sampling and Compatibility

Achieve high-quality core samples up to 450 mm in length and 150 mm in diameter. The adjustable feed and chain-and-gear drive mechanism offer precise control for accurate drilling. Compatible with a wide range of standard core barrels and bits, the machine is suitable for various core sampling applications in concrete, asphalt, and rock.

Safety and Durability

Built from heavy-duty steel and painted in high-visibility orange/black, the machine is engineered for stability and long service life. Safety features such as an emergency stop and overload protection enhance operator security, while the built-in water tank ensures the drill remains cool throughout operation.

FAQ's of Portable Core Cutting Drilling Machine Petrol Driven:

Q: How does the water injection system enhance drilling performance?

A: The built-in water tank provides continuous water injection during drilling, which cools the core bit and reduces dust, ensuring smoother, safer, and more efficient core extraction, even when drilling into hard materials like concrete or asphalt.

Q: What is the process for setting up the Portable Core Cutting Drilling Machine at a project site?

A: To set up, simply wheel the machine to the desired location, secure it for stability, insert a compatible core barrel, fill the water tank, and start the petrol engine. Control drilling depth and feed manually or semi-automatically, depending on your operational needs.

Q: When should I use this machine over electrically powered models?

A: This machine is ideal when electrical supply is unavailable or unreliable, such as remote construction sites or field locations. Its petrol-driven engine ensures powerful operation independent of mains electricity, making it perfect for varied outdoor conditions in civil engineering projects.

Q: What are the benefits of the machine's safety features?

A: The emergency stop button and engine overload protection are designed to prevent accidents and equipment damage, giving operators peace of mind and reducing downtime during high-intensity sampling activities.

Q: Where can the Portable Core Cutting Drilling Machine be used effectively?

A: Thanks to its rugged design and weather resilience (operational from -10C to +50C and up to 95% RH), the machine suits a wide range of sites, including construction zones, road works, and quality inspection areas across India.

Q: How precise are the core samples, and what size range can be accommodated?

A: The machine boasts 2 mm accuracy on core diameters, with a 1 mm resolution, allowing for dependable collection of cores between 25 mm and 150 mm in diameter, up to 450 mm deep. This precision supports stringent quality control standards in engineering applications.
