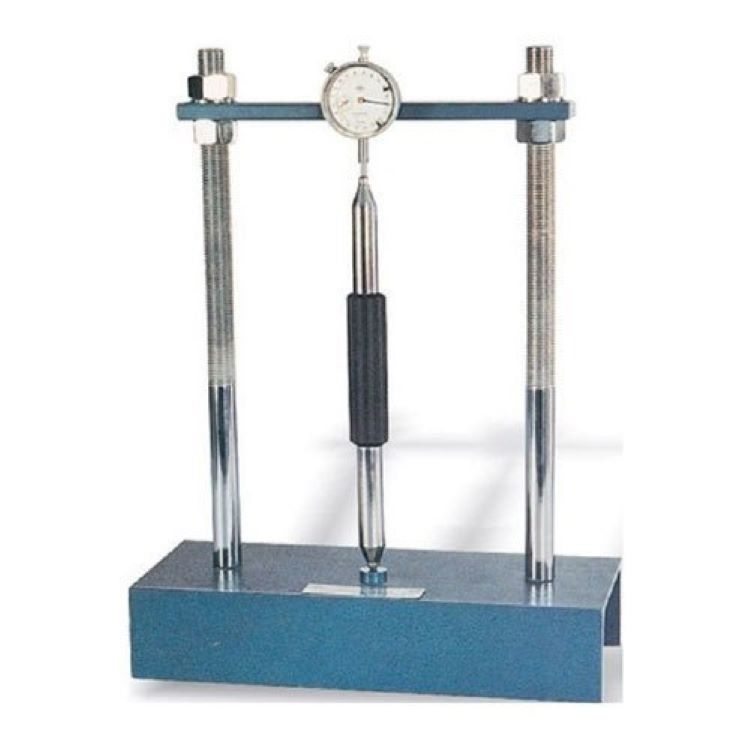

Volume Change Gauge

Get a Price/Quote

MOQ : 1 Piece

Volume Change Gauge Specification

Resolution
0.001 mm

Specimen Size
50 mm x 25 mm (typical)

Gas Pressure
01 MPa

Automation Grade
Semi-automatic

Max Height
300 mm

Mounting Type
Bench-top

Frequency
50 Hz

Application
Measurement of volume change in soil/construction material specimens

Temperature
15C40C

Response Time
1 sec

Number of Specimens
13

Test Range
010 mm volume change

Power Supply
220V AC, 50Hz

Port Size
Standard 1/4 inch

Features
Robust frame, digital reading, stable measuring platform

Accuracy
0.01 mm

Interface Type
RS-232/USB

Display Type
Digital LCD

Hardness
Steel frame: HRC 50

Humidity
Up to 90% RH non-condensing

Measuring Range
010 mm

Equipment Type
Volume Change Gauge

Operating Voltage
220V

Usage
Laboratory soil testing

Capacity
Standard: 1000 N

Machine Weight
Approx. 25 kg

Test Speed
0.0110 mm/min

Test Width
Up to 100 mm

Test Stroke
0-50 mm

Control Mode
Microprocessor based automatic control

Accessories Supplied
Sample holders, calibration tools, operation manual

Environmental Protection
IP20

Material of Construction
Powder coated mild steel and stainless steel

Data Storage
Internal memory for 100 tests

Calibration
Factory calibrated, calibration certificate supplied

Test Fluid Compatibility
Fresh and saline water, light chemicals

Safety Interlocks
Overload and over-travel protection

Volume Change Gauge Trade Information

Minimum Order Quantity
1 Piece

FOB Port
COIMBATORE

Payment Terms
Cash Advance (CA), Cash in Advance (CID)

Supply Ability
1 Piece Per Day

Delivery Time
1 Days

Sample Available
No

Packaging Details
COTTON BOX

Main Export Market(s)
Asia, Africa

Main Domestic Market
East India, Karnataka, Lakshadweep, Andhra Pradesh, Bihar, Chandigarh, Daman and Diu, Goa, Jharkhand, Odisha, Punjab, Assam, Delhi, Dadra and Nagar Haveli, Andaman and Nicobar Islands, Arunachal Pradesh, Maharashtra, Nagaland, Rajasthan, Sikkim, Tamil Nadu, Telangana, Tripura, Pondicherry, Uttar Pradesh, Uttarakhand, West Bengal, All India, South India, Central India, West India, North India, Gujarat, Kerala, Mizoram, Meghalaya, Manipur, Chhattisgarh, Haryana, Himachal Pradesh, Jammu and Kashmir, Madhya Pradesh

About Volume Change Gauge

Specification:

Dial Size	1.5 inch / 40 mm
Use	Calibration
Display Type	Analog
Usage/Application	Cement Test
Material	Stainless Steel
Color	Blue
Accuracy Class	0.1
Product Type	Testing
I Deal In	New Only
Country of Origin	Made in India
Availability	In Stock

When conducting traixial tests on soil samples, it is observed that due to internal pressure, the cell expands, soil specimen consolidates resulting in the change of volume. Volume change gauge is therefore deviced to accurately measure volume changes. This is measured by observing the quantity of water entering or leaving the cell as the cell pressure and axial load are changed it is achieved by the displacement of free surface between the water supplied to the cell and another fluid (paraffin or kerosene). A dye is added to the paraffin for clear demarcation of the interface.

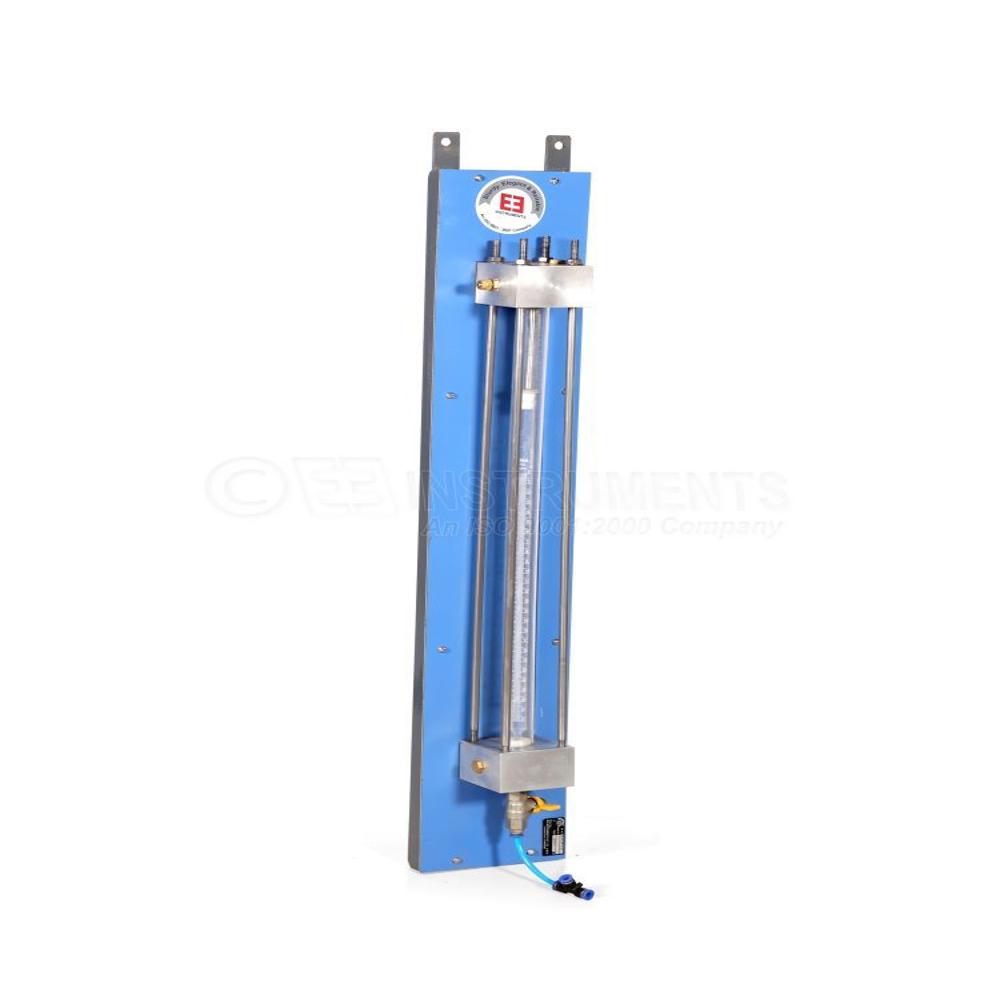

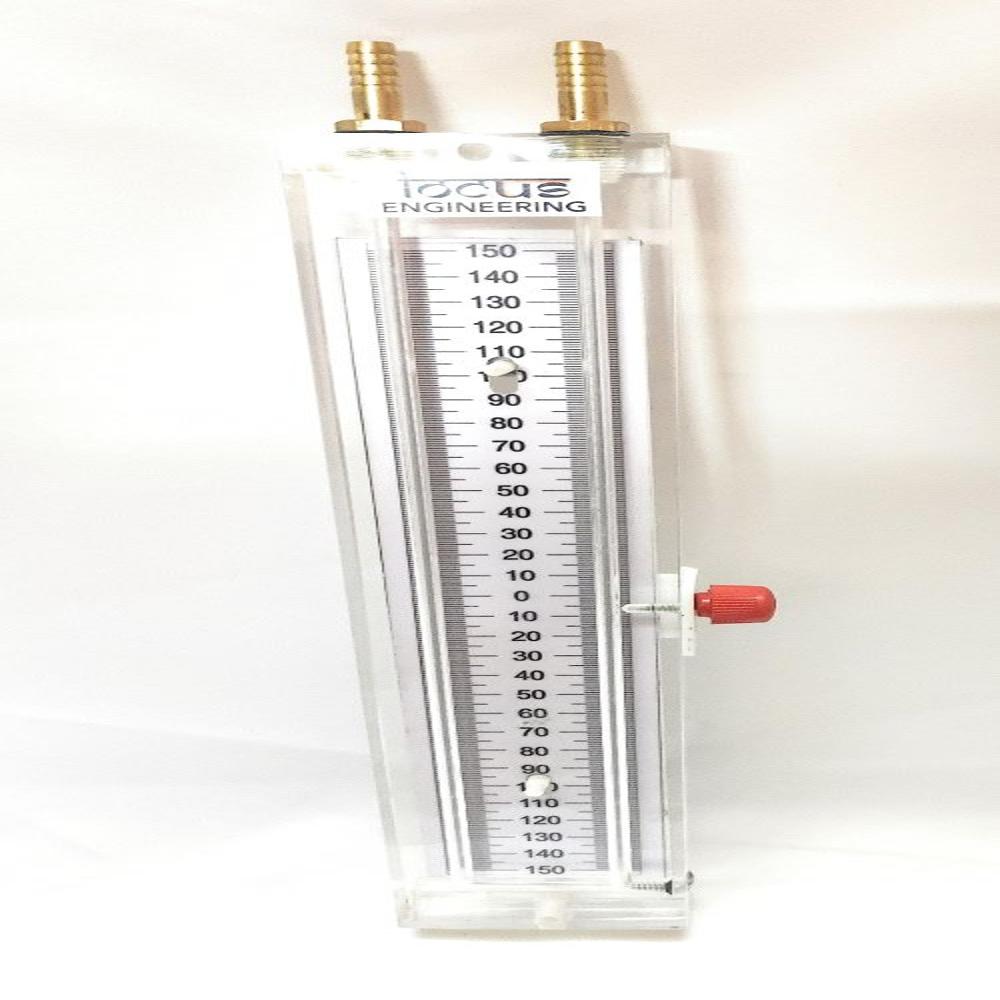

The unit consists of a glass graduated tube of the appropriate capacity graduated to parts of a ml. enclosed in a perspex tube sealed by two end caps. The unit is fitted with manifolds and valves which enable it to be used with the triaxial cell and the constant pressure (Mercury controls) system. The cell pressure can either be directly applied to the cell from the constant pressure system or through the volume change gauge. The graduated glass tube is not subjected to any difference in pressure and its inside is coated with a layer of silicon water repellent to reduce the error in meniscus. There is an arrangement for filling the unit with water and paraffin and a drainage valve is provided in the lower end cap. The whole assembly is mounted on a panel suitable for wall mounting. The unit is supplied complete with a pressure hose with end couplings and a packet of dye.
Salient Features

Single Burette 10ml capacity graduated in 0.05ml division
25ml capacity graduated in0.1ml division
Twin Burette 50ml. capacity graduated in 0.2 ml. divisions. The unit consists of two glass graduated burettes of 50 ml. x 0.2 ml. capacity enclosed in two perspex tubes sealed by two end caps. The manifold with valves enable the flow of fluid in the burettes to be reserved when the paraffin interfaces reach their limits in the burettes, the maximum capacity of measurement being only limited by the capacity of the mercury pots. The two burettes, enable the reduction in error in meniscus reading due to reversal of flow, the average of the two burettes being always taken as the volume change reading.

Precision Measurement for Laboratory Applications

Engineered for the accurate assessment of volume change in soil or construction materials, the Volume Change Gauge offers a stable measuring platform with a robust steel frame (HRC 50 hardness) ensuring repeatable results. Its automation grade is semi-automatic, utilizing microprocessor-based automatic control to streamline laboratory workflows.

Reliable Data Storage and Display

Equipped with internal memory for recording up to 100 tests, this device eliminates manual logging errors. The digital LCD ensures readings are clear and immediate, boasting a response time of 1 second and a resolution of 0.001 mm for meticulous documentation.

Durable Construction and Safe Operation

With materials including powder-coated mild steel and stainless steel, the gauge is resistant to environmental stresses. Safety interlocks, such as overload and over-travel protection, safeguard users and specimens during operation. The IP20 rating ensures adequate protection in laboratory environments.

FAQ's of Volume Change Gauge:

Q: How does the Volume Change Gauge measure volume changes in soil specimens?

A: The Volume Change Gauge utilizes a microprocessor-based control system with a highly sensitive digital LCD display to track volume changes in soil or construction material specimens. Its robust frame and stable measuring platform allow accurate detection of variations within the 0-10 mm range, with a resolution of 0.001 mm.

Q: What types of fluids and chemicals are compatible with this device during testing?

A: This gauge is compatible with fresh and saline water as well as light chemicals, ensuring versatility across a wide range of laboratory soil and material testing applications without compromising performance or safety.

Q: When should the internal memory be used, and what is its storage capacity?

A: Internal memory is useful for storing data from consecutive tests, reducing the need for manual recording. It can securely hold results from up to 100 tests, allowing efficient tracking and analysis of laboratory outputs over extended experimental runs.

Q: Where is the Volume Change Gauge typically installed or mounted in a laboratory setting?

A: Designed for bench-top mounting, the gauge is compact with a max height of 300 mm and width up to 100 mm. This allows easy installation in most laboratory environments, ensuring convenience for both set-up and operation.

Q: What processes are involved in calibrating and maintaining this equipment?

A: The instrument is factory calibrated and comes with a calibration certificate. Regular maintenance involves gentle cleaning, inspection of mechanical components for wear and ensuring the supplied calibration tools are used periodically to validate accuracy.

Q: What are the safety features included to protect users during operation?

A: The gauge incorporates overload and over-travel protection interlocks, helping to prevent accidental damage or unsafe situations during tests. These features ensure user safety as well as the integrity of test specimens throughout operation.
