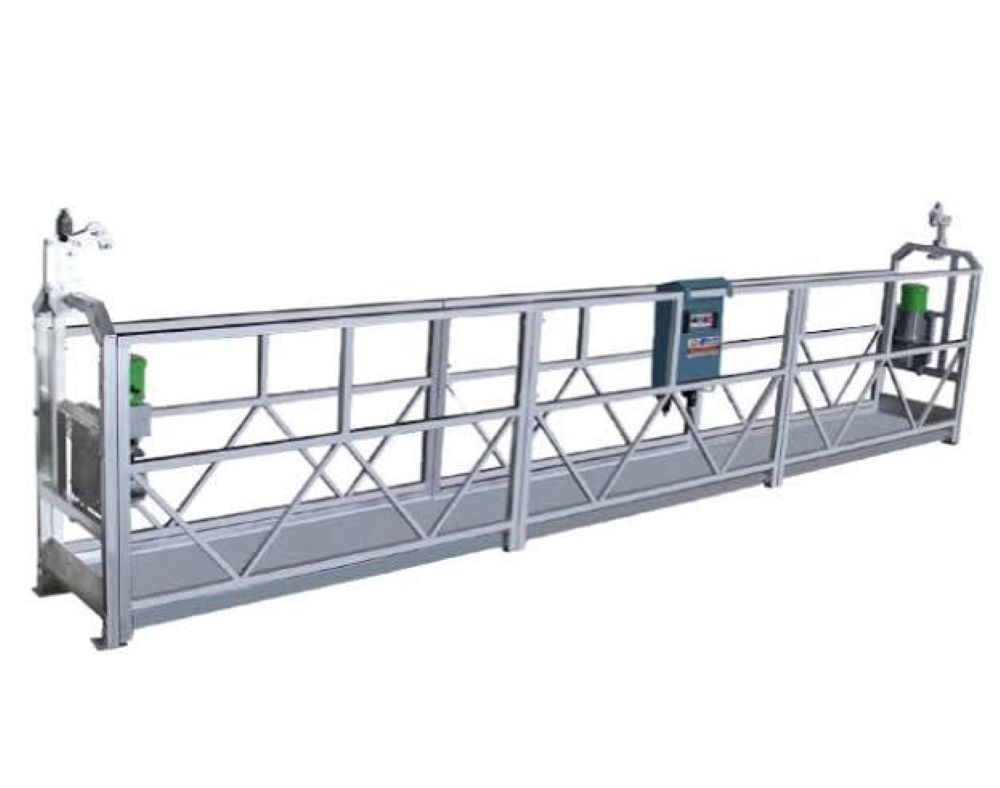

SUSPENDED PLATFORM

Name: SUSPENDED PLATFORM
Brand: SUBITEK
Price: 200000 INR
Availability: InStock

Price 200000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

SUSPENDED PLATFORM Specification

Rated Power
1.5 kW x 2

Surface
Galvanized/Anodized

Application
High-Rise Building Construction & Maintenance

Motor Power
1.5 kW 2

Lifting Height
Max 100 m

Lifting Speed
9-11 m/min

Product Type
Suspended Platform

General Use
Facade Cleaning, Building Maintenance

Material
Steel/Aluminum Alloy

Type
ZLP Series

Capacity
250 kg - 800 kg

Weight (kg)
As per model (approx. 800 kg)

Computerized
No

Automatic
Semi-Automatic

Control System
Electric Control Box with Safe Lock

Cooling System
Natural air cooling

Method
Wire Rope Suspended

Voltage
220V/380V/415V

Dimension (L*W*H)
(L) 2.5m/4m/6m/7.5m x (W) 0.69m x (H) 1.18m

Feature
Anti-Tilting, Anti-Fall, Modular Design

Color
Silver, Customized

Wire Rope Diameter
8.3 mm

Control Voltage
24V

Operation Mode
Control Pendant / Push Button

End Stirrup Material
Steel Painted / Hot-Dip Galvanized

Noise
80dB

Platform Section Length
1.5m/2m/2.5m per section

Installation Method
Modular, Detachable Sections

Safety Device
Centrifugal Speed Limiter & Safety Lock

Hoist Model
LTD8.0, LTD6.3, LTD5.0

Power Source
Single/Three Phase Electric

SUSPENDED PLATFORM About

Discover the prodigious SUSPENDED PLATFORM, the top-tier solution for high-rise facade cleaning and building maintenance. This rare, ephemeral offer features an advanced centrifugal speed limiter and a safety lock for remarkable protection. Crafted from gorgeous steel and aluminum alloy, the modular and detachable sections (up to 7.5m in length) ensure adaptability for complex projects. Its anti-tilting, anti-fall design, galvanized surface, and robust 8.3mm wire rope define unparalleled durability. Suitable for capacities between 250-800 kg, this semi-automatic ZLP series guarantees efficiency, reliability, and a safer workspace.

Versatile Application & Material Excellence

The SUSPENDED PLATFORM is ideal for vast surface applications, particularly on building facades and high-rise structures. Its flexible modular design adapts seamlessly to varying site requirements-from restricted urban environments to expansive commercial buildings. Manufactured with a choice of galvanized steel or anodized aluminum alloy, this platform combines strength with corrosion resistance, maintaining a gorgeous finish even under the most demanding conditions. Its anti-tilting and anti-fall capabilities further augment safety across all usage sites.

Sample Availability, Packaging & Delivery Estimates

Samples of the SUSPENDED PLATFORM are available upon request, allowing clients to evaluate quality before full-scale purchase. Each platform is securely packaged to ensure integrity during shipment, with careful attention to protection and space utilization. Delivery times are estimated based on order size, customization, and shipping location; typical rates ensure timely arrival within India and for export. Dedicated logistics ensure prompt handling from manufacturer to site, streamlining your procurement process.

FAQ's of SUSPENDED PLATFORM:

Q: How can the SUSPENDED PLATFORM be installed on various building types?

A: The platform features a modular and detachable section design, allowing it to be easily customized and installed on facades of diverse building heights and layouts, making it suitable for both complex and straightforward structures.

Q: What safety features does this suspended platform provide?

A: It comes equipped with a centrifugal speed limiter and safety lock, anti-tilting and anti-fall mechanisms, ensuring a high level of operator protection during use. Its robust construction and reliable control systems further enhance onsite safety.

Q: When is it beneficial to use a wire rope suspended platform rather than fixed scaffolding?

A: Wire rope suspended platforms are ideal when frequent relocation, access to various elevations, or facade work is needed. Their ephemeral but stable presence minimizes obstruction while maximizing reach and flexibility, making them beneficial for maintenance and cleaning.

Q: What is involved in the shipment and delivery of this platform?

A: The suspended platform is carefully packed to safeguard all components. Shipment is arranged according to order size, and customers receive an estimated delivery rate and time upon order placement, with logistics support from the manufacturer through to the destination.

Q: Where can this platform be used, and what types of buildings benefit most?

A: This platform can be utilized in high-rise construction, facade cleaning, and maintenance for commercial, residential, and industrial buildings across India, offering dependable performance for structures up to 100 meters in height.

Q: How does the modular design benefit the user during onsite operations?

A: The modular and detachable design enables users to assemble the platform in variable lengths to suit specific project requirements, optimizing site flexibility, storage, and transportation.
