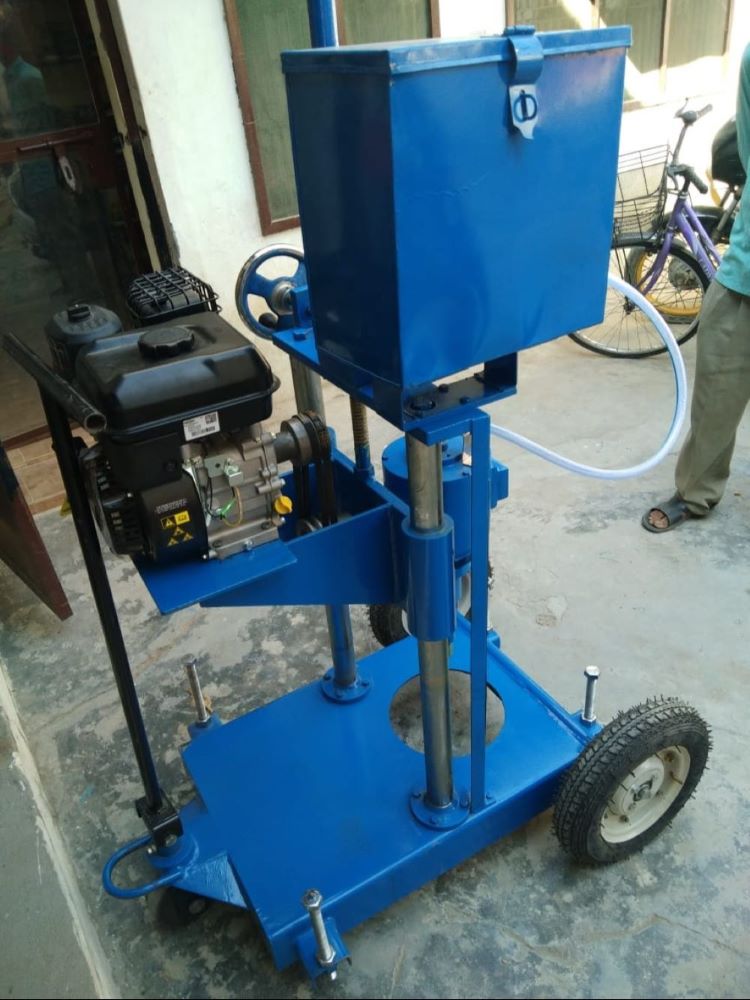

Pavement Core Drilling Machine

Name: Pavement Core Drilling Machine
Brand: SUBITEK
Price: 100000.0 INR
Availability: InStock

Price 100000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Pavement Core Drilling Machine Specification

Surface
Powder coated

Lifting Speed
120 mm/min

Lifting Height
500 mm

Motor Power
5 HP electric motor

Product Type
Pavement Core Drilling Machine

General Use
Core drilling of pavements, roads, and highways

Material
Heavy-duty steel

Type
Floor mounted

Capacity
Up to 200 mm diameter core

Weight (kg)
Approx. 140 kg

Computerized
No

Automatic
Semi-automatic

Control System
Manual lever controls

Cooling System
Water cooling system

Method
Rotary drilling with diamond core bit

Voltage
220 V, 50 Hz

Dimension (L*W*H)
750 x 560 x 1100 mm

Feature
Portable with robust frame, accurate core cutting

Color
Blue/Yellow

Max Drill Depth
450 mm

Starter Type
Direct on line starter

Mobility
Mounted on 4 wheels for easy movement

Safety Features
Overload protection, Emergency stop switch

Chuck Type
Heavy-duty core bit holder

Drive System
V-belt drive

Bit Size Range
100 mm to 200 mm

Noise Level
<85 dB

Water Tank Capacity
15 liters

Core Extraction
Vertical core extraction system

Pavement Core Drilling Machine Trade Information

Minimum Order Quantity
1 Piece

FOB Port
coimbatore

Payment Terms
Cash Advance (CA), Cash in Advance (CID)

Supply Ability
1 Piece Per Day

Delivery Time
1 Days

Sample Available
No

Packaging Details
cotton box

Main Export Market(s)
Asia, Africa

Main Domestic Market
West India, Gujarat, Lakshadweep, Mizoram, Meghalaya, Uttar Pradesh, Uttarakhand, West Bengal, All India, South India, Central India, North India, East India, Karnataka, Kerala, Manipur, Andhra Pradesh, Bihar, Chandigarh, Daman and Diu, Goa, Jharkhand, Odisha, Punjab, Assam, Delhi, Dadra and Nagar Haveli, Andaman and Nicobar Islands, Arunachal Pradesh, Chhattisgarh, Haryana, Himachal Pradesh, Jammu and Kashmir, Madhya Pradesh, Maharashtra, Nagaland, Rajasthan, Sikkim, Tamil Nadu, Telangana, Tripura, Pondicherry

About Pavement Core Drilling Machine

Specification:

The Pavement Core Drilling Machine is petrol engine powered. Road/Building drill has been designed specifically for the purpose of drilling test cores from or holes in, Roads, Airport Runways, Bridges etc.
The Machine comprises of two vertical support columns, which carry the Drill head/Engine assembly with the help of screwed spindle.
The 5 HP petrol engine with pulley mechanism works with minimum vibrations. The double precision bit advances with screwed spindle, which provides a constant, accurate drill pressure, minimum core chipping & long bit life. The complete assembly is supplied on a rigid metal base with leveling facility and is suitable for vertically down coring applications only.

Bit Diameter : Varying from 25mm to 150mm
Maximum depth of core : 700mm
Drill Speed : 475 & 800 R.P.M.
Guide Shafts : 50mm dia
Screwed Spindle : 20mm dia
Water Tap : 12mm
Drill Wrenches : Included
Water Tank : Included
Levelling Pads : Included

Exceptional Core Drilling Accuracy

Designed to deliver precise results, this machine supports rotary drilling with diamond core bits and features a sturdy vertical core extraction system. The heavy-duty core bit holder combined with a stable, powder-coated frame ensures robust performance for roadway and pavement sampling.

Safe and User-Friendly Operation

Safety measures such as overload protection and an emergency stop switch provide peace of mind during operations. The machine's manual lever controls, direct on line starter, and semi-automatic functionality offer user-friendly handling for both skilled operators and newcomers.

Portable Yet Durable Design

Despite its heavy-duty steel construction and approximately 140 kg weight, this model remains portable thanks to its four wheels. The 15-liter water tank supports continuous coolant supply, enhancing both portability and long session performance, while the blue/yellow finish resists wear in demanding environments.

FAQ's of Pavement Core Drilling Machine:

Q: How does the pavement core drilling machine operate for extracting core samples?

A: The machine uses a rotary drilling method equipped with a diamond core bit, supported by a V-belt drive and a powerful 5 HP electric motor. The vertical core extraction system allows for clean and easy removal of samples from pavements, roads, and highways.

Q: What are the ideal scenarios to use this core drilling machine?

A: This drilling machine is best suited for construction, quality control, and research projects where you need to extract core samples from pavements, highways, and roads. Its portability also makes it ideal for on-site work across various terrains in India.

Q: Where should the machine be positioned during operation?

A: The machine is floor-mounted and should be placed on a stable and level surface near the drilling site. Its four-wheel design allows for easy movement, ensuring it can be accurately positioned where core sampling is required.

Q: What safety features are included with the drilling machine?

A: Safety is ensured with integrated overload protection and an emergency stop switch. These features help prevent damage to the machine and reduce risk to operators during stressful conditions or unexpected power fluctuations.

Q: How does the water cooling system benefit the drilling process?

A: The built-in 15-liter water tank provides continuous cooling to the core bit, reducing heat buildup during drilling. This prolongs the life of the core bit, improves drilling efficiency, and ensures accurate and smooth core extraction.

Q: What is the process for changing the core bit size?

A: Thanks to the heavy-duty core bit holder, operators can switch between core bits ranging from 100 mm to 200 mm. The chuck design allows for quick and secure changes, adapting the machine to specific sampling diameter requirements.

Q: What advantages does the machine offer to dealers, suppliers, and fabricators?

A: Being semi-automatic, robust, and portable with accurate core cutting capabilities, the machine appeals to a broad user base including dealers, distributors, exporters, manufacturers, and suppliers for various civil infrastructure projects across India.
