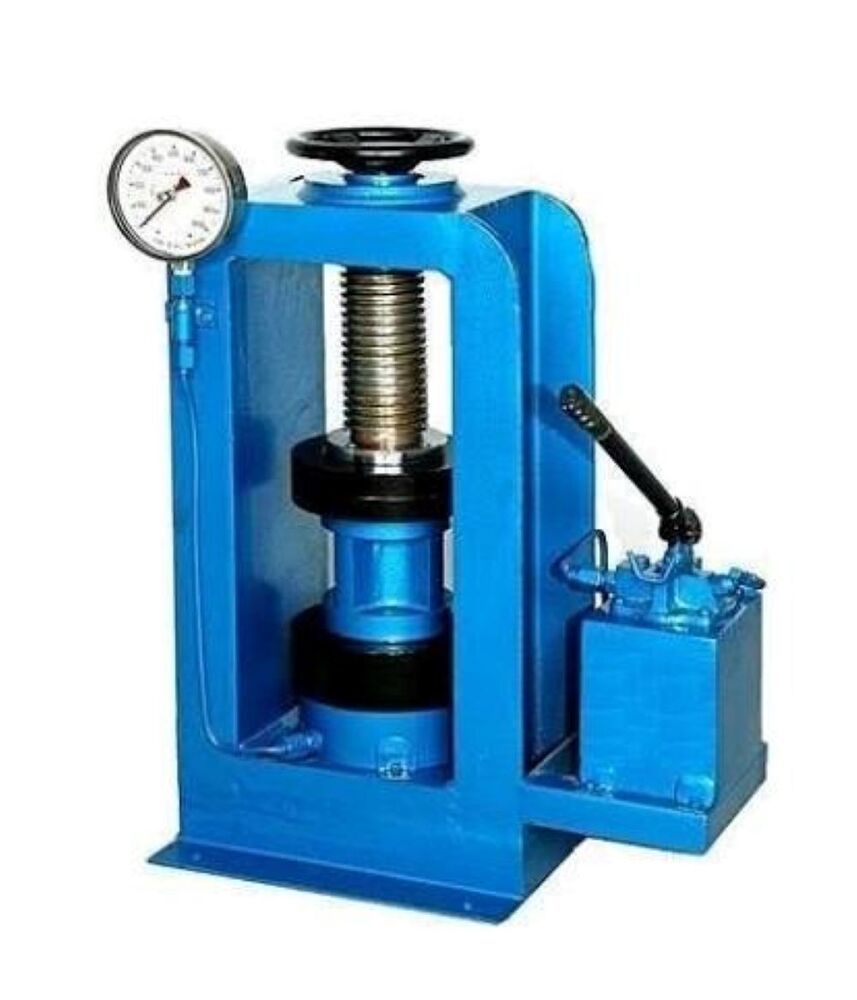

CUBE TESTING MACHINE 1000KN MANUAL

Name: CUBE TESTING MACHINE 1000KN MANUAL
Brand: SUBITEK
Price: 40000 INR
Availability: InStock

Price 40000 INR/ Number

Get a Price/Quote

MOQ : 1 Number

CUBE TESTING MACHINE 1000KN MANUAL Specification

Lifting Height
Adjustable by screw mechanism

Rated Power
Manual (no electric power required)

Application
Material strength testing, construction laboratories

Max Pressure
1000 kN

Surface
Powder-coated finish

Motor Power
Manual operation (No motor)

Max Flow Rate
Manual hydraulic

Lifting Speed
Manual (depends on operator)

Product Type
Cube Testing Machine

General Use
Compression testing of concrete cubes and cylinders

Material
Heavy-duty cast iron & steel

Type
Manual, Hydraulic

Capacity
1000 kN (100 tons)

Weight (kg)
Approx. 150-200 kg

Computerized
No

Automatic
No, Manual

Control System
Manual hydraulic lever

Method
Hydraulic, manual pump

Voltage
Not required (manual operation)

Dimension (L*W*H)
Approx. 500 x 400 x 1100 mm

Feature
Accurate loading, rugged construction, analog gauge

Color
Blue

Oil Type
Hydraulic oil (standard)

Environment
Laboratory and onsite use

Display
Analog (dial)

Sample Sizes
150mm, 100mm cubes and cylinders

Piston Stroke
Up to 100 mm

Reading Indicator
Analog dial gauge

Calibration
IS:14858, ASTM C39/C39M

Safety Features
Pressure relief valve

Frame Type
Channel/plate welded frame

Pressure Gauge Range
0-1000 kN

Loading Method
Manual hand lever

Maintenance
Low

Platen Size
165 mm diameter

CUBE TESTING MACHINE 1000KN MANUAL About

Minimum Order Quantity	1 Piece
Control Type	Manual
Packaging Type	Wooden
Max Cube Size	150 mm
Max Cylinder Dia	150 mm
Accuracy Class	Class 1
Frame Type	Channel type
Automation Grade	Manual
Brand	TNEI
Warranty	1 Year
Display Type	Analog
Capacity	1000 Kn
Power	Hydraulic


Brand	TNEI
Frequency	50 Hz
Material	MILD STEEL
Phase	230 V AC SINGLE PHASE
Power Supply	230 V AC
Weight	700
Control Mode	AUTOMATIC
capacity	1000 kn / 2000 kn / 3000 kn
Material for Construction	Stainless steel
Display	Digital

Precision and Durability in Material Testing

Engineered for rigorous laboratory and onsite demands, this manual cube testing machine combines accuracy with rugged construction. Using a welded channel/plate frame and high-quality hydraulic components, it delivers precise results every time, even under heavy workloads. The device is designed to minimize maintenance and can withstand the operational challenges of frequent use in diverse testing environments.

Adaptability for Varied Testing Requirements

With its adjustable screw mechanism and large diameter platen, this machine accommodates different sample sizes, making it suitable for both 150mm and 100mm cubes, as well as cylinders. The manual control system allows users to regulate the testing process according to specific standards, while the analog dial ensures easy-to-read, accurate results across applications.

FAQ's of CUBE TESTING MACHINE 1000KN MANUAL:

Q: How does the manual hydraulic loading system operate on this cube testing machine?

A: The machine employs a manual hand lever to operate the hydraulic pump, applying controlled pressure to the sample. Users actuate the lever, which creates hydraulic pressure to compress the concrete cube or cylinder. The test process is fully manual, with loading speed and pressure under the operator's control and displayed via the analog dial gauge.

Q: What are the main benefits of a manual, non-computerized cube testing machine?

A: Manual operation allows for use anywhere without reliance on electricity, offering flexibility for laboratories and construction sites with limited power supply. The simple control system is easy to maintain, cost-effective, and provides a tactile, hands-on approach to compression testing with less risk of digital malfunction.

Q: When should the CUBE TESTING MACHINE 1000KN MANUAL be used in material testing?

A: This machine is ideal for routine compressive strength testing of concrete specimens, particularly in construction quality control, laboratory strength assessment, and on-site verification. It can be used at any stage where determining concrete strength is necessary, especially during inspections or before structural work proceeds.

Q: Where is this testing machine best utilized?

A: The device is suitable for construction laboratories, quality assurance centers, and on-site testing locations. Its portability and lack of dependency on electric power make it practical for varied environments, including remote or temporary job sites and permanent lab settings.

Q: What sample sizes can be tested, and how is the platen adjusted?

A: The machine accommodates 150mm and 100mm cubes and cylinders. The platen, with a 165mm diameter, ensures a secure fit, while a screw mechanism allows for easy adjustment of the lifting height, making it simple to test different sample sizes accurately and efficiently.

Q: How is the safety of the operator ensured during the testing process?

A: Safety is prioritized with a pressure relief valve that prevents over-pressurization. Additionally, the robust welded frame and manual operation reduce the risk of sudden failures, ensuring a controlled, safe testing environment for users.

Q: What maintenance requirements does the CUBE TESTING MACHINE 1000KN MANUAL have?

A: Maintenance is minimal, typically involving regular checks of hydraulic oil levels, cleaning of moving parts, and ensuring the pressure relief valve and analog gauge function correctly. Its heavy-duty design and powder-coated surface contribute to long service life with low maintenance demands.
