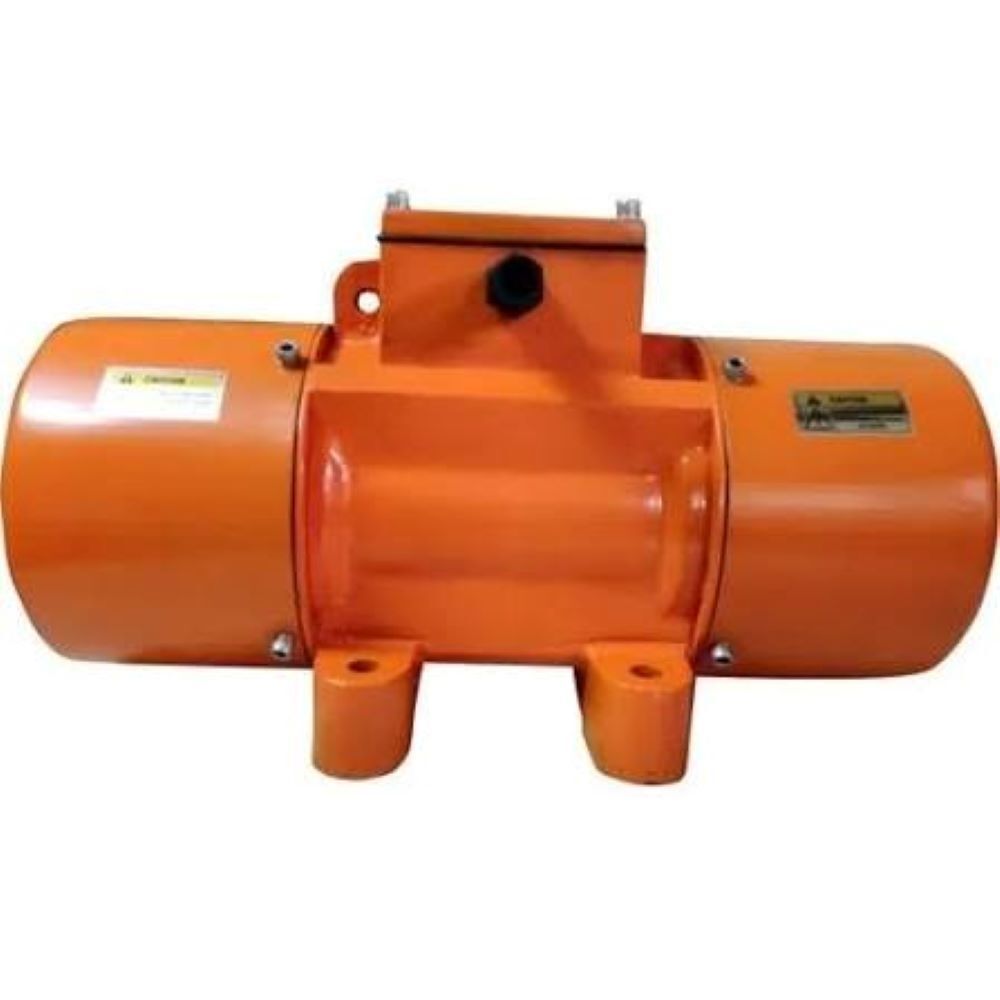

SHUTTER VIBRATORS

Name: SHUTTER VIBRATORS
Brand: SUBITEK
Price: 18500 INR
Availability: InStock

Price 18500 INR/ Number

Get a Price/Quote

MOQ : 1 Number

SHUTTER VIBRATORS Specification

Application
Construction, Industrial, Cement plant, and Shutter equipment

Motor Power
0.18 kW to 5.5 kW (varies by model)

Rated Power
Up to 5.5 kW

Surface
Powder coated

Product Type
Shutter Vibrator

General Use
Used for vibrating shutter, hoppers, silos, bins, and chutes

Material
Heavy-duty cast iron housing

Type
Electromagnetic Vibrator

Capacity
Varies by model/application

Weight (kg)
8 kg to 65 kg (approx.)

Computerized
No

Automatic
No

Control System
Manual/On-Off Switch

Cooling System
Air cooled

Method
Rotary vibration

Voltage
230V/415V AC, 50Hz

Dimension (L*W*H)
Depends on model, typically 300 x 180 x 190 mm

Feature
Longer service life, robust construction, corrosion resistance

Color
Orange

Frequency
3000 RPM

Lubrication
Sealed bearings, maintenance-free

Noise Level
Less than 70 dB

Operating Temperature
-20C to 50C

Insulation Class
Class F

Amplitude Adjustment
Adjustable by shifting unbalance weights

Protection Class
IP 55

Mounting
Flange mounting or foot mounting

SHUTTER VIBRATORS About

Automation Grade	Manual
Type	Shutter Vibrator
Power Source	Electric Motor
Needle Diameter	60 mm
Brand/Make	TNEI
Power	Electric
Material	Mild Steel
Phase Type	Single Phase
Weight	50g
Capacity	1 HP / 2 HP
Usage	Beam
Usage	Column
Usage	Foundation
Usage	Pile
Usage	Slab

We are recognized as a successful manufacturers, traders and suppliers of Concrete Shutter Vibrators in the market at the present scenario. These vibrators are clamped rigidly to the form work at the pre-determined points so that the form and concrete are vibrated. They consume more power for a given compaction effect than internal vibrators. The external vibrators are more often used for pre-casting of thin in-situ sections of such shape and thickness as cannot be compacted by internal vibrators. These products from our side are made available to the customers at industry leading rates and are provided as per the set industry norms and protocols as well.

Features:

Clamped rigidly
Compaction effect
Pre-casting for sections

Reliable Performance for Industrial Applications

Engineered for industrial reliability, SHUTTER VIBRATORS are suitable for continuous use in applications such as construction sites, cement plants, and silo management. With their sturdy cast iron housing, powder-coated finish, and IP 55 protection, these vibrators stand up to harsh environments. Their design ensures consistent vibration output, facilitating smooth material flow for a wide range of storage and handling systems.

User-Friendly Operation and Adjustment

These vibrators incorporate a manual on-off switch for straightforward control. The amplitude can be easily adjusted by shifting the unbalance weights, allowing customization based on the specific requirements of your application. Available in multiple configurations, units can be flange or foot mounted to suit installation needs. The sealed bearing system eliminates lubrication maintenance, reducing operational demands.

Engineered for Safety and Efficiency

SHUTTER VIBRATORS are designed with user safety and efficiency in mind. With a noise level below 70 dB, they contribute to a quieter working environment. The sealed, maintenance-free bearings, corrosion-resistant construction, and long insulation class F motor life ensure worry-free operation over extended periods. Their air-cooled design and broad temperature tolerance make them ideal for variable industrial settings.

FAQ's of SHUTTER VIBRATORS:

Q: How do I adjust the amplitude on the SHUTTER VIBRATOR?

A: The amplitude on the SHUTTER VIBRATOR can be adjusted by shifting the unbalance weights inside the unit. This process lets you fine-tune the vibration strength to match the needs of your specific application, ensuring efficient material flow.

Q: What types of mounting options are available for SHUTTER VIBRATORS?

A: These vibrators are available with either flange mounting or foot mounting, enabling flexible installation on a variety of equipment such as shutters, hoppers, silos, and bins, depending on your operational requirements.

Q: Where can SHUTTER VIBRATORS be effectively used?

A: SHUTTER VIBRATORS are well-suited for use in construction sites, cement plants, and various industrial settings requiring vibration to support the movement of bulk materials through chutes, hoppers, silos, and bins.

Q: What is the maintenance process for SHUTTER VIBRATORS?

A: SHUTTER VIBRATORS use sealed, maintenance-free bearings, eliminating the need for regular lubrication. This feature significantly reduces maintenance requirements and enhances reliability during continuous operation.

Q: When is it beneficial to use a SHUTTER VIBRATOR?

A: It is beneficial when you need to ensure consistent flow of bulk materials or prevent clogging in equipment such as silos, hoppers, bins, or chutes, as the rotary vibration aids in breaking up compaction and encouraging smooth movement.

Q: What are the benefits of using SHUTTER VIBRATORS in industrial applications?

A: Key benefits include improved material flow, reduced blockages, long service life thanks to heavy-duty construction, low operating noise, corrosion resistance, and minimal need for maintenance, ensuring efficient and trouble-free operation.
