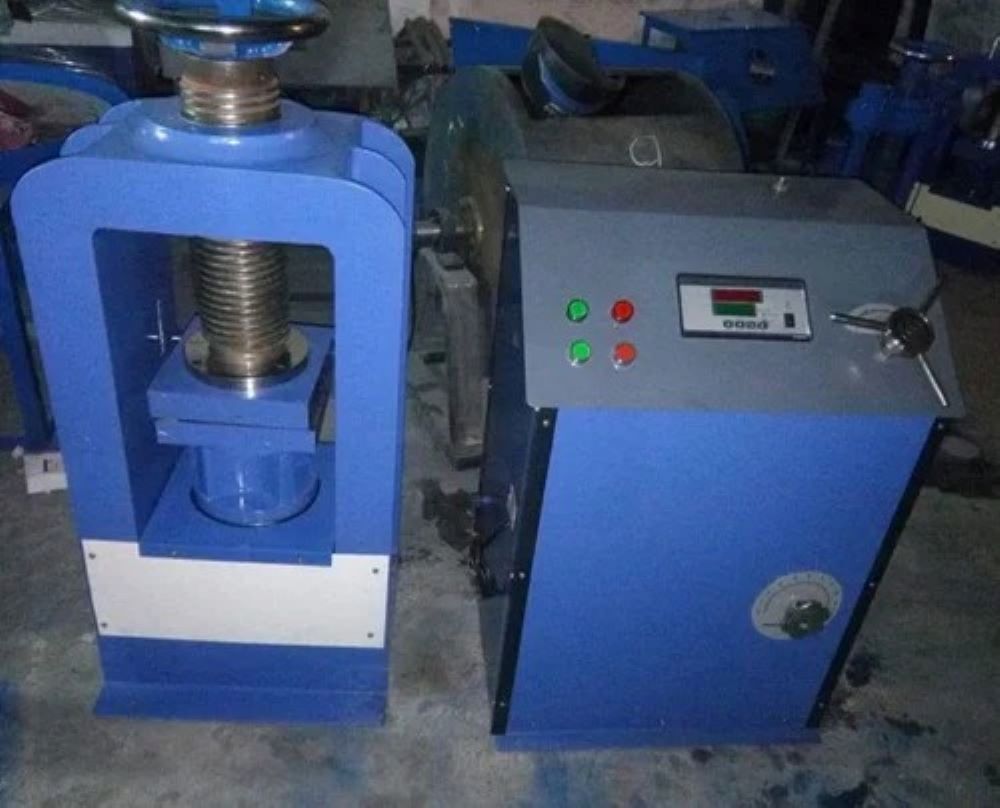

CUBE TESTING MACHINE 1000KN DIGITAL

Name: CUBE TESTING MACHINE 1000KN DIGITAL
Brand: SUBITEK
Price: 75000 INR
Availability: InStock

Price 75000 INR/ Number

Get a Price/Quote

MOQ : 1 Number

CUBE TESTING MACHINE 1000KN DIGITAL Specification

Max Pressure
1000 kN

Motor Power
1 HP Electric Motor

Surface
Powder Coated

Rated Power
750W

Lifting Speed
Approx. 1-2 mm/sec

Application
Civil Engineering, Construction Material Testing

Lifting Height
Up to 200 mm

Product Type
Cube Testing Machine

General Use
Compression testing of concrete cubes/cylinders

Material
Mild Steel (Body)

Type
Digital

Capacity
1000 kN (100 Ton)

Weight (kg)
Approx. 500-700 kg

Computerized
No

Automatic
Semi-automatic (Digital Display)

Control System
Digital Microprocessor Control

Cooling System
Air Cooled

Method
Hydraulic (Manual/Automatic Pump)

Voltage
220-240 V, Single Phase AC

Dimension (L*W*H)
Approx. 1000x500x1000 mm

Feature
Digital Load Indication, Overload Protection

Color
Blue

Packing Type
Export Standard Wooden Box

Display Type
Digital, LED/LCD

Environment
Lab and Field Compatible

Resolution
0.1 kN

Piston Stroke
Approx. 50 mm

Platen Size
165 mm x 165 mm (approx.)

Test Standards
IS 516/IS 14858/ASTM C39

Accessories Included
Standard Moulds, Pressure Gauge, Calibration Certificate

Operation Type
Manual/Automatic Digital Readout

Oil Reservoir Capacity
10-15 Litres

Display Accuracy
Class 1.0 as per IS:1828

Safety Feature
Automatic Loading Pace, Overload Trip Facility

CUBE TESTING MACHINE 1000KN DIGITAL About

Minimum Order Quantity	1 Piece
Phase	Single phase
Packaging Type	Wooden
Loading Type	Motorized
Max Cube Size	150 mm
Accuracy Class	Class 1
Motor Power	Hand Operated
Type Of Testing Machines	Compression Testing Machine
Power	Hydraulic
Power Supply	230 V 50 Hz
Automation Grade	Manual
Frame Type	Channel type
Display Type	Digital
Capacity	1000 Kn

With the valuable assistance of skilled team of professionals, we are offering an extensive quality Cube Testing Machine Digital Analog that is used for carrying out compressive strength tests. Offered digital analog is manufactured by our professionals utilizing high grade factor inputs & leading techniques in conformity with quality standards. The digital analog offered by us is well tested against assorted quality parameters in order to ensure its flawlessness.

Features:

Reliable

High accuracy

Easy to operate

Other Details:

Consolidation Apparatus

Vibrating Machine

Vibrating Hammer

Pan Mixer

Accelerated Curing Tank

Mortar Mixer

Concrete mixer machine

Specifications:

Max. testing force	3000KN
Measurement range	10%-100%FS
Relative error of test force value:	1%
Leading screw adjusting mode	Electronic
Motor power	2 KW
Pressure plate size	370x370mm
Max. distance between up and below pressure plate	330mm
Max. piston stroke	100mm
Host dimension (mm)	1100x700x1800
Weight	800Kg

Advanced Digital Compression Testing

Designed for civil engineering applications, the CUBE TESTING MACHINE 1000KN DIGITAL brings accuracy and reliability to your lab. The digital microprocessor control with peak hold and auto zero functions ensures straightforward operation, while the 1 kN resolution delivers detailed load measurements. Overload tripping and a pressure relief valve add safety, further enhancing its dependable performance for routine and critical material analysis.

Rugged Build and Versatile Operation

Constructed from powder-coated mild steel, this machine withstands heavy-duty use in demanding environments. The spacious 165 mm diameter platform and 200 mm lifting height permit testing of various concrete sample sizes. Semi-automatic hydraulic operation and digital display make it user-friendly for technicians, offering flexibility for both manual and automatic pump operation.

FAQ's of CUBE TESTING MACHINE 1000KN DIGITAL:

Q: How do I use the digital display features of the CUBE TESTING MACHINE 1000KN DIGITAL?

A: The digital display provides real-time load readings with peak hold and auto zero functions, allowing clear and accurate monitoring during compression testing. Simply follow the instructions on the digital interface to select the desired features before or during the testing process.

Q: What types of samples can be tested with this machine?

A: This machine is engineered for compression testing of concrete cubes and cylinders, supporting a maximum sample size of 150 mm x 150 mm x 150 mm, making it suitable for standard construction material testing.

Q: When should I consider using the peak hold feature?

A: The peak hold feature is useful to record the maximum load achieved during a test, ensuring accurate documentation without manual observation. Utilize this function when you need to capture the highest load automatically, especially for compliance and record-keeping.

Q: Where is the optimal placement for the CUBE TESTING MACHINE in a lab setting?

A: Place the machine on a stable, level surface ensuring adequate space around its dimensions (approx. 1000x500x1000 mm) for safe operation and maintenance. The location should be within the recommended 10C to 40C operating temperature range, and a reliable 220-240 V single-phase AC power supply is required.

Q: What safety measures does the machine incorporate during operation?

A: The machine is equipped with a pressure relief valve and overload tripping features to protect the system and operator from excessive load or pressure, ensuring safe and secure testing processes.

Q: How does the hydraulic oil system contribute to performance?

A: The machine's hydraulic system, with a 10-litre oil capacity and air cooling, ensures stable and consistent load application. This design maintains accuracy and reliability throughout repeated testing cycles.
