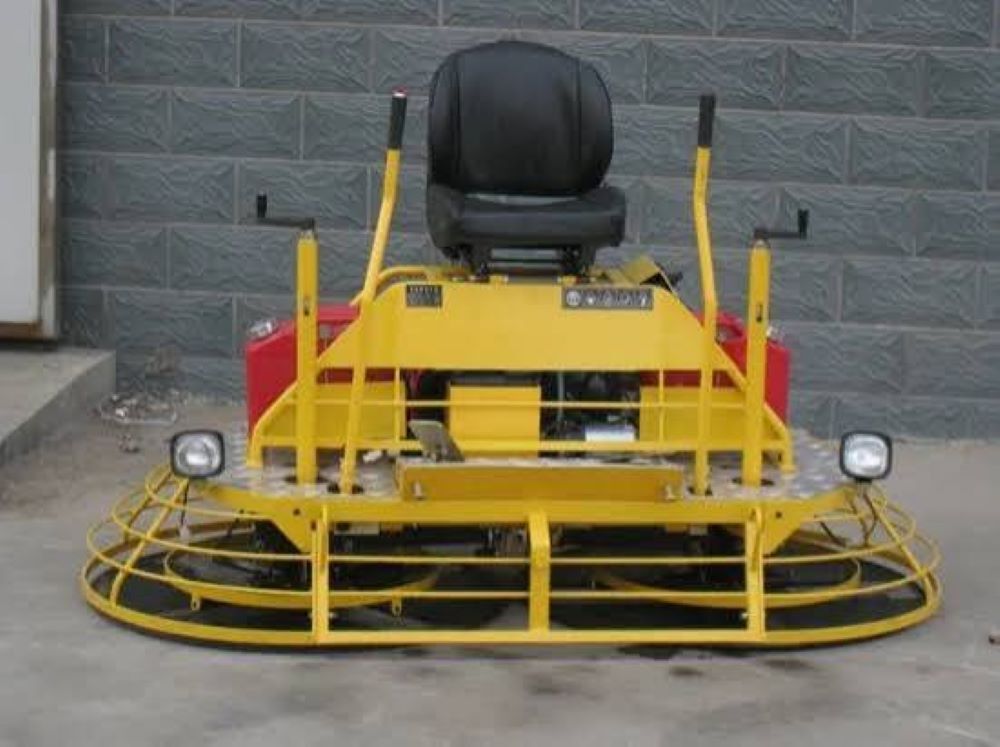

RIDE ON POWER TROWEL

Name: RIDE ON POWER TROWEL
Brand: SUBITEK
Price: 350000 INR
Availability: InStock

Price 350000 INR/ Number

Get a Price/Quote

MOQ : 1 Number

RIDE ON POWER TROWEL Specification

Motor Power
24 HP

Surface
Polished Concrete

Rated Power
24 HP

Application
Industrial/Commercial Flooring

Product Type
Ride On Power Trowel

General Use
Concrete Floor Finishing

Material
Steel

Type
Trowel Machine

Capacity
Up to 1500 m2/day

Weight (kg)
350 kg

Computerized
No

Automatic
Semi-Automatic

Control System
Manual Joystick

Cooling System
Air Cooling

Method
Mechanical

Voltage
Diesel Engine Operated (No supply voltage required)

Dimension (L*W*H)
1980 x 1020 x 1480 mm

Feature
Double Disc, Ergonomic Ride-on Seat, Built-in Lights

Color
Yellow/Black

Noise Level
Below 95 dB

Lights
Two Front Halogen Lamps

Speed of Rotation
120-140 rpm

Rotor Diameter
900 mm x 2

Fuel Tank Capacity
18 L

Number of Blades
8 (4 per disc)

Operating Mode
Ride-On with Dual Steering

Blade Size
350 x 150 mm

Vibration Level
Low Vibration Operation

Engine Type
Diesel, 2 Cylinder

RIDE ON POWER TROWEL About

Product Details:

Minimum Order Quantity	1 Piece
Material	Power Trowel
Capacity	13 HP
Color	Yellow
Usage/Application	Construction
Country of Origin	Made in India

Engine : Gasoline,HondaGX390(13H.P
With electric start
Max Rotate Speed
3600
Oil Tank Capacity
6.5 L.
Blade Quantity :
8 Pcs.
Pan Quantity :
2 nos.
Disc :
2 nos
Working speed:
70-130 RPM
Working Diameter:
1570*750 mm
Dimension :
1710*940*1150mm
Package Size :
1820*1120*1100mm
Package :
Wooden Case
Ride-on Power Trowel. CRT30
Engine : Gasoline,HondaGX670(24H.P
With electric start
Max Rotate Speed :
3600
Oil Tank Capacity :
12 L.
Blade Quantity :
8 Pcs.
Pan Quantity :
2 nos.
Disc :
2 nos
Working speed : 150-155 RPM
Working Diameter : 1890*915 mm
Dimension : 1980*1020*1500mm
Package Size : 2060*1170*1110mm

Optimized for Industrial Concrete Finishing

Designed specifically for large-scale commercial and industrial flooring, the RIDE ON POWER TROWEL combines powerful diesel performance with advanced ergonomics and mechanical precision. Its two-disc configuration provides exceptional surface coverage and smooth finishing, making it a trusted choice for flooring contractors and professionals looking to accelerate their workflow while maintaining high-quality results.

Operator-Focused Design

With a ride-on system, dual manual joystick steering, and a supportive ergonomic seat, users experience reduced fatigue even during extended operation. Low vibration and noise levels ensure safer, more comfortable working conditions, and the machine's durable steel body withstands heavy daily use. Built-in halogen lamps allow operation in low-light environments, further enhancing efficiency and flexibility on-site.

FAQ's of RIDE ON POWER TROWEL:

Q: How does the RIDE ON POWER TROWEL operate and what are the main controls?

A: The trowel operates via a mechanical drive system powered by a 24 HP, 2-cylinder diesel engine. It is controlled using dual manual joysticks, allowing precise steering and maneuverability while the operator sits comfortably in the ergonomic ride-on seat. The system is semi-automatic, requiring manual input for navigation and operation.

Q: What is the process for concrete floor finishing with this machine?

A: After the initial concrete pour and screeding, the RIDE ON POWER TROWEL is employed once the surface can bear light foot traffic without marking. The operator rides and steers the trowel over the surface, leveraging the double-disc system and eight blades to smooth and polish the concrete efficiently. Built-in halogen lamps assist in working during low-visibility conditions.

Q: When is the ideal time to use this machine during floor construction?

A: The RIDE ON POWER TROWEL should be used when the concrete has set enough to support the operator's weight but is still workable - typically shortly after the initial set, before the final hardening. This timing ensures a smooth and glossy polished surface without damaging the slab.

Q: Where can this trowel be utilized, and what flooring types is it best for?

A: This model excels in industrial and commercial projects, such as warehouses, factories, and retail spaces in Iceland, where large areas of polished concrete flooring are required. It is built to handle heavy-duty tasks on extensive surfaces efficiently.

Q: What benefits does the double-disc design offer?

A: The double-disc configuration enables the trowel to cover a wider area in a single pass, improving productivity and quality of finish. This design also ensures uniform surface treatment, minimizing the risk of missed spots and reducing overall labor time.

Q: How economical is the machine in terms of fuel, and what is the fuel capacity?

A: With an 18-liter diesel fuel tank and efficient air-cooled engine, the machine offers extended uninterrupted operation, making it economical for day-long projects. The diesel engine provides reliable, steady power for all types of flooring conditions.

Q: What are the advantages of using this ride-on trowel compared to walk-behind models?

A: Ride-on trowels like this model drastically increase productivity, offering higher operator comfort, greater speed, and more consistent finishing over large areas. The ergonomic design reduces fatigue, while features such as manual joystick control and built-in lamps improve operational accuracy and flexibility.
