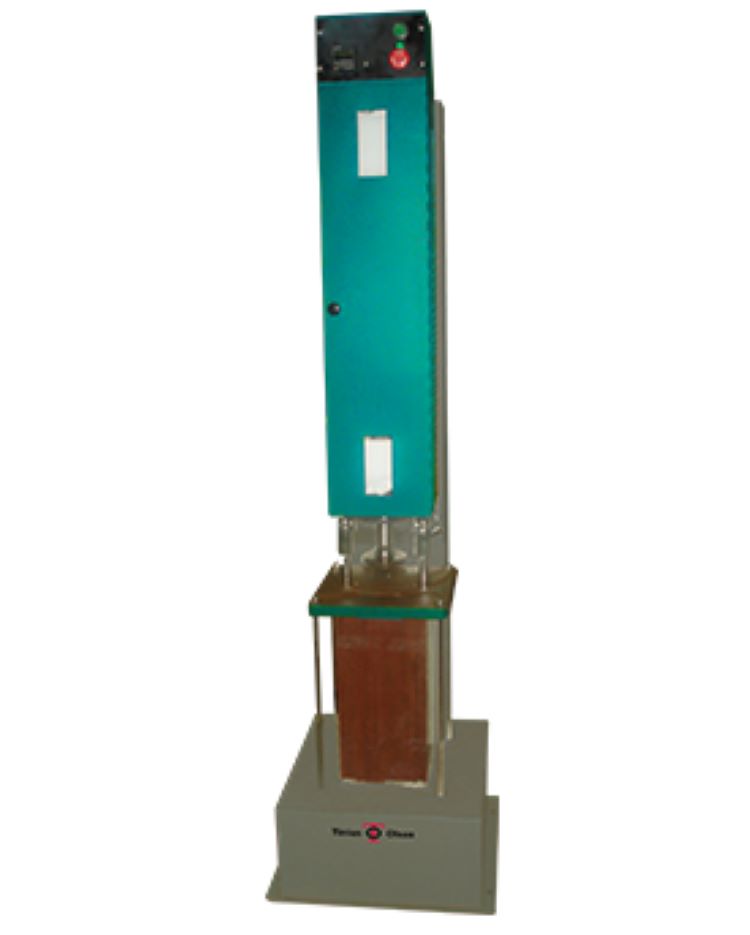

Automatic Compactor For Bituminous Mixes

Name: Automatic Compactor For Bituminous Mixes
Brand: SUBITEK
Price: 100000.0 INR
Availability: InStock

Price 100000.0 INR/ Set

Get a Price/Quote

MOQ : 1 Piece

Automatic Compactor For Bituminous Mixes Specification

Port Size
Standard 150 mm mould port

Max Height
Approx. 1250 mm

Automation Grade
Automatic

Humidity
Up to 90% RH (non-condensing) operating ambient

Number of Specimens
Holds one specimen at a time

Interface Type
Push-button control panel

Resolution
1 blow

Response Time
Instant cycle interruption

Test Range
Bituminous mixes, Marshall stability specimens

Equipment Type
Automatic Compactor

Display Type
Digital display for number of blows

Power Supply
220V AC, 50 Hz single phase

Features
Programmed number of blows, enclosed safety cover, heavy-duty construction

Application
Compaction of bituminous mix samples, Marshall stability

Hardness
Rammer made of hardened steel

Accuracy
±1 blow per minute

Mounting Type
Floor mounted

Operating Voltage
220V AC

Temperature
Operating range 5°C to 40°C

Frequency
50 Hz

Specimen Size
102 mm diameter x 64 mm height (as per standard), with adaptors for 4 inch

Usage
Laboratory testing for road construction materials

Capacity
Single specimen compaction per cycle

Machine Weight
Approx. 115 kg

Test Speed
60 ± 5 blows per minute

Test Width
150 mm (mould dia.)

Test Stroke
457 mm drop height

Control Mode
Automatic rammer operation with programmable cycles

Noise Level
Less than 80 dB

Accessories
Supplied with base plate, specimen mould, extracting tools

Compliance Standard
ASTM D6926, AASHTO T245, IS 12027

Cycle Counter
Pre-settable digital counter up to 999 cycles

Rammer Weight
4.54 kg ± 0.01 kg

Safety Interlock
Yes, machine stops if cover is open

Finish
Powder coated anti-corrosive body

Dimensions
580 x 580 x 1250 mm (approx.)

Automatic Compactor For Bituminous Mixes Trade Information

Minimum Order Quantity
1 Piece

FOB Port
coimbatore

Payment Terms
Cash Advance (CA), Cash in Advance (CID)

Supply Ability
1 Piece Per Day

Delivery Time
1 Days

Sample Available
No

Packaging Details
cottonbox

Main Export Market(s)
Asia, Africa

Main Domestic Market
Sikkim, Lakshadweep, All India, South India, Central India, West India, North India, East India, Gujarat, Karnataka, Kerala, Mizoram, Meghalaya, Manipur, Andhra Pradesh, Bihar, Chandigarh, Tamil Nadu, Daman and Diu, Goa, Jharkhand, Odisha, Punjab, Assam, Delhi, Dadra and Nagar Haveli, Andaman and Nicobar Islands, Arunachal Pradesh, Chhattisgarh, Haryana, Himachal Pradesh, Jammu and Kashmir, Madhya Pradesh, Maharashtra, Nagaland, Rajasthan, Uttar Pradesh, Telangana, Tripura, Pondicherry, Uttarakhand, West Bengal

About Automatic Compactor For Bituminous Mixes

Specification:

Rugged construction to withstand hard work
Fully automatic and easy to operate
Uniform compaction
Automatic Preset Blow Counter

Specification:
The Automatic Compactor eliminates the laborious process of manual compaction and an even degree of compaction is achieved. The driven mechanism lifts the weight of 4.5kg and drops it through a correct height of 457 mm. The rammer foot is removable, which facilitates preheating. A compaction pedestal with specimen holder is fixed to the base. An Automatic Blow counter enables the number of blows to be present before each test and automatically stops the machine on completion. Suitable for operation on 230 V, 50 Hz, Single Phase, A.C. supply.
Note: Also available for modified compaction test (10.2 Kg.)

Automatic, Accurate, and Safe Operation

The compactor's automatic programmable system eliminates manual intervention, reducing errors and increasing efficiency in sample compaction. Its digital display shows precise blow counts, while the built-in safety interlock instantly halts operation if the cover is opened, ensuring laboratory safety. The enclosed design and push-button control panel provide simple but secure operation for both seasoned lab professionals and those new to testing protocols.

Designed for Standards and Durability

Compliant with ASTM D6926, AASHTO T245, and IS 12027, this equipment guarantees that each specimen meets stringent industry requirements. Heavy-duty fabrication-including a powder-coated, anti-corrosive finish and hardened-steel rammer-promises longevity even in rigorous laboratory environments. Adaptors for diverse specimen sizes enhance versatility, while accessories like a base plate and extracting tools streamline workflow.

FAQ's of Automatic Compactor For Bituminous Mixes:

Q: How does the automatic compactor enhance compaction accuracy for bituminous mixes?

A: The automatic compactor features a programmable digital cycle counter and a precisely weighted steel rammer, delivering a controlled number of blows per minute. This ensures specimens are compacted uniformly and reproducibly as per relevant standards, minimizing variability in test results.

Q: What is the safety protocol if the cover is opened during operation?

A: The machine includes a safety interlock mechanism that halts all operation instantly if the cover is opened, protecting users from accidental contact with moving parts and ensuring a secure laboratory environment.

Q: When is this compactor typically used in laboratory settings?

A: The compactor is used during the preparation of bituminous mix specimens for compaction and Marshall stability tests in asphalt quality control, research, and road construction material verification, predominantly in laboratory environments.

Q: Where should the automatic compactor be installed for optimal performance?

A: This equipment is floor-mounted and should be placed on a sturdy, level surface in laboratories dedicated to construction material testing. Proper installation ensures stability during operation and compliance with safety guidelines.

Q: What is the process for programming the number of blows for a test cycle?

A: Operators select the required number of compaction blows using the push-button control panel. The digital counter can be set up to 999 cycles, with instant interruption if needed and accurate display of cycle progress.

Q: Which specimens and tests is the compactor suitable for?

A: The automatic compactor is ideal for preparing Marshall stability test specimens, typically 102 mm diameter x 64 mm height or 4-inch adaptors, in accordance with ASTM and IS standards. It handles single specimen cycles for bituminous mixes.

Q: What are the main benefits of using this automatic compactor over manual methods?

A: This equipment delivers superior accuracy, repeatability, and safety with its automatic control, digital monitoring, and interlock system. It optimizes workflow, reduces labor, and enhances reliability in asphalt sample testing.
