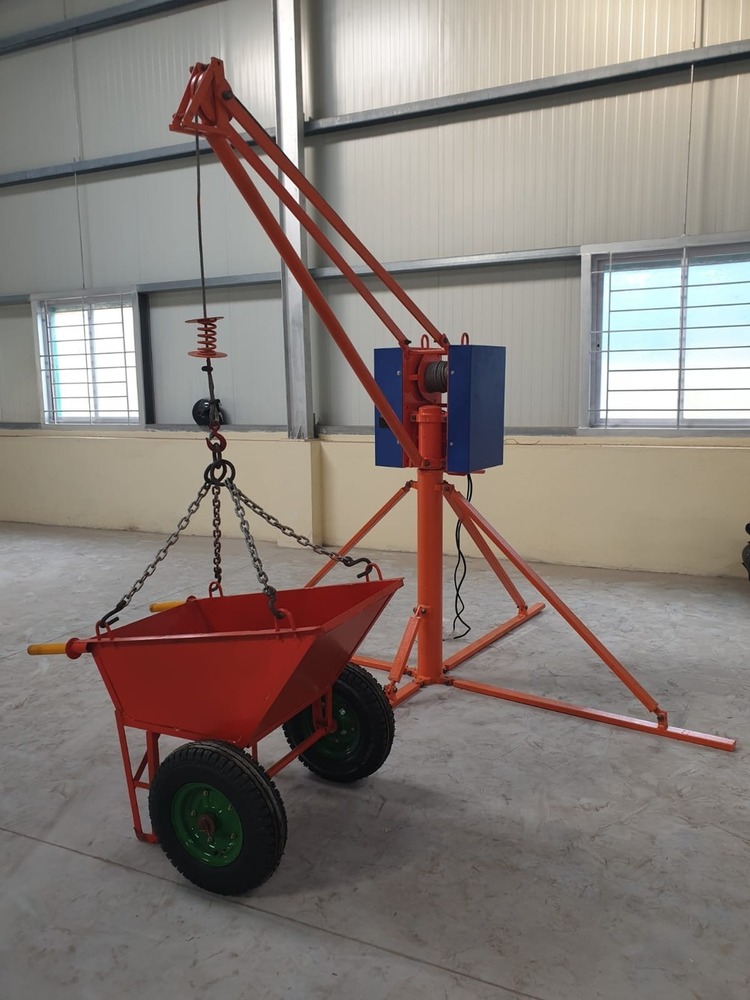

Send InquiryConstruction Mini Crane
Price 58000 INR/ Unit
MOQ : 1 Unit
Construction Mini Crane Specification
- Application
- Building Construction, Warehouses, Small Industry
- Surface
- Paint Coated
- Lifting Height
- Up to 25 meters
- Lifting Speed
- 10-15 m/min
- Rated Power
- 1.5 kW
- Motor Power
- 2 HP / 1.5 kW
- Product Type
- Construction Mini Crane
- General Use
- Material lifting and handling at construction sites
- Material
- Mild Steel
- Type
- Electric Winch Mounted Mini Crane
- Capacity
- 250-500 kg
- Weight (kg)
- Approx. 110-130 kg
- Computerized
- No
- Automatic
- No
- Control System
- Handheld Pendant / Switch
- Cooling System
- Air Cooled Motor
- Method
- Overhead Cable
- Voltage
- 220-240 V, Single Phase
- Dimension (L*W*H)
- 2.2m x 1.6m x 2.5m (approx.)
- Feature
- Easy to Install, Portable, Robust Design
- Color
- Orange & Blue
- Wire Rope Diameter
- 6 mm-8 mm
- Wheel Type
- Solid rubber wheels
- Mounting
- Floor Mounted/Portable Base
- Rotation
- 360 Degrees Swivel Boom
- Standards
- IS standards compliant
- Operating Temperature
- -10C to +50C
- Power Cable Length
- 10 meters standard
- Noise Level
- <70 dB
- Safety
- Limit switch for over height stop, Emergency stop switch
- Assembly Time
- 10-15 Minutes
- Rope Length
- 30 meters (customizable)
- Brake System
- Electro-magnetic braking system
About Construction Mini Crane
* 250-300 kg
* 1.5 hp own make motor
* Single phase operated
* 30 meter rope length
* 8mm Rope Thickness
* Asahi Brand
* Unitorq Brake Unit
* Gear wheel type
* Schneider Panel Board
* Six Month Manufacturing Warranty
* No Warranty for lift rope and capacitor (running & starting), Panel board
