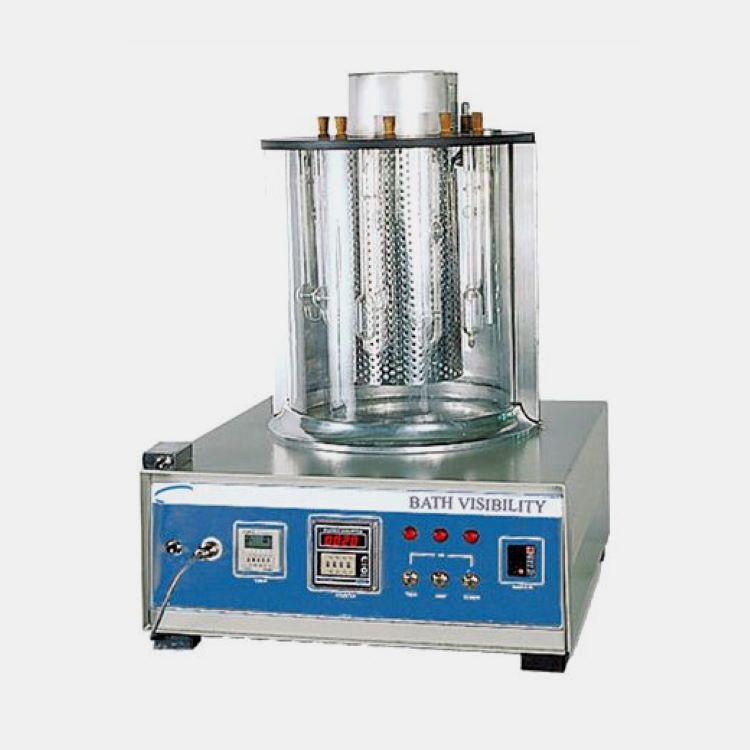

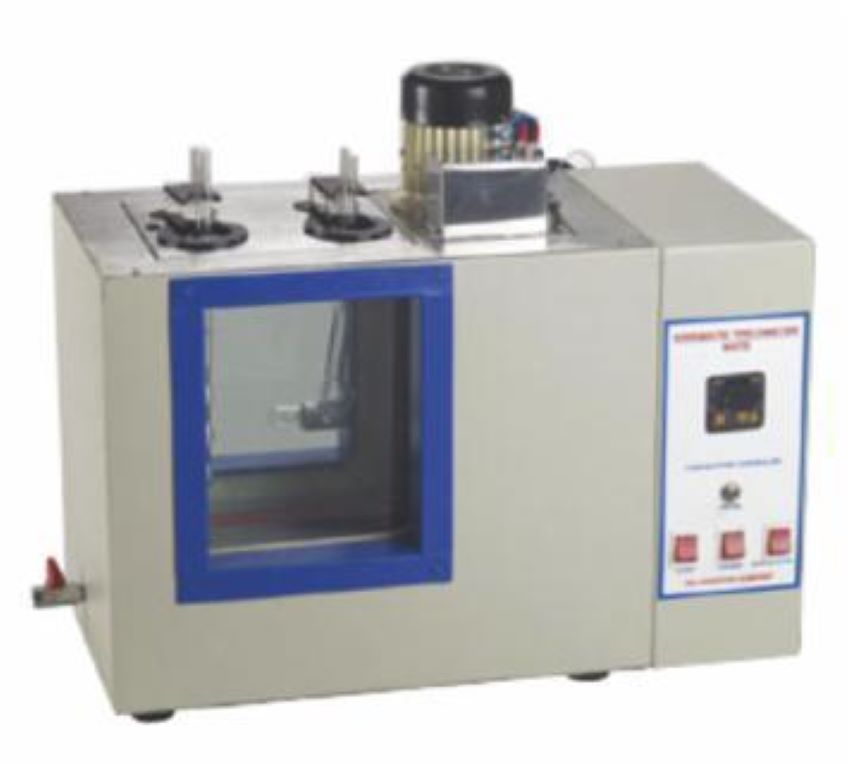

Kinematic Viscometer Bath

Get a Price/Quote

MOQ : 1 Piece

Kinematic Viscometer Bath Specification

Features
Uniform temperature distribution, corrosion-resistant material, over-temperature protection, glass observation window

Accuracy
±0.1°C

Frequency
50 Hz

Display Type
Digital LED display

Equipment Type
Kinematic Viscometer Bath

Interface Type
Analog/Digital controls

Max Height
450 mm (approx.)

Response Time
Instantaneous digital response

Humidity
Up to 90% RH (non-condensing)

Test Range
1 - 1000 cSt (typical, depends on bath type)

Application
For determination of kinematic viscosity of petroleum products, oils, and liquids

Measuring Range
1 - 1000 cSt

Number of Specimens
Requires 4 viscometer tubes (standard)

Temperature
Ambient to 100°C

Specimen Size
Standard viscometer tube size (as per ASTM/DIN/IS standards)

Operating Voltage
230V AC, 50 Hz

Mounting Type
Table-top / Bench-top

Power Supply
230V AC, 50 Hz

Resolution
0.01°C

Automation Grade
Semi-automatic

Usage
Laboratory viscosity measurements

Capacity
15 liters

Machine Weight
Approx. 45 kg

Control Mode
Digital temperature controller

Cooling System
Provision for external refrigeration (if required)

Colour
Blue and Grey (as per image)

Ambient Operating Temperature
5°C to 40°C

Bath Material
Stainless steel inner chamber

Temperature Uniformity
±0.05°C

Timer
Programmable digital timer

Heating System
Immersion heater with stirrer

Insulation
Thermal insulation for safe touch exterior

Stirring System
Continuous, noiseless motor-driven stirrer

Observation Window
Toughened glass for monitoring viscosity tests

Compliance Standard
ASTM D445, IS 1448, IP 71

Drainage
Provision for easy draining of bath medium

Safety Features
Over-temperature cut-off, fuse protection

Kinematic Viscometer Bath Trade Information

Minimum Order Quantity
1 Piece

FOB Port
coimbatore

Payment Terms
Cash Advance (CA), Cash in Advance (CID)

Supply Ability
1 Piece Per Day

Delivery Time
1 Days

Sample Available
No

Packaging Details
cotton box

Main Export Market(s)
Asia, Africa

Main Domestic Market
All India, South India, Central India, West India, North India, East India, Gujarat, Karnataka, Kerala, Lakshadweep, Mizoram, Meghalaya, Manipur, Andhra Pradesh, Bihar, Chandigarh, Daman and Diu, Goa, Jharkhand, Odisha, Punjab, Assam, Delhi, Dadra and Nagar Haveli, Andaman and Nicobar Islands, Jammu and Kashmir, Madhya Pradesh, Maharashtra, Nagaland, Rajasthan, Sikkim, Tamil Nadu, Telangana, Tripura, Pondicherry, Uttar Pradesh, Arunachal Pradesh, Chhattisgarh, Haryana, Himachal Pradesh, Uttarakhand, West Bengal

About Kinematic Viscometer Bath

Specification:

This bath is designed and developed under the strict supervision of our experienced professionals in accordance with the international quality standards. Our offered bath is thoroughly checked on various parameters
to ensure zero-defect. This bath is widely used in national laboratories and pharmaceutical industries.
Features:

Intelligent signal sampling for accurate data measuring and parameter reading
Accurate viscometer for improving experimental efficiency
High precision digital display
Ideal for controlling the temperature accuracy
Durable glass bath for optimum heat preservation
Desktop based all-in-one design for easy operations and portability
Electric stirrer for ensuring uniform temperature of bath
Easy cleaning and drying of viscometer tubes

Other Information:
The accompanying absolute kinematic viscosity bath are utilized to measure supreme thickness of consistency reviewed clearing bitumen (IS:73:2006) at 60C as per IS:1206 (part II) (like ASTM D 2171), which utilizes a vacuum slender viscometer. Complete absolute viscosity testing equipment adjusting to IS: 1206 (part II) method for testing tar and bitumen materials: determination of absolute viscosity with the accompanying segments:
Consistent Temperature Bath - a suitable shower for drenching of no less than 2 vacuum fine viscometer tubes with a computerized temperature controller. The precision of the temperature in the shower will be + 0.1oc all through the shower. Vacuum System - capable of keeping up a vacuum inside + 0.05 cm of the coveted level the systemwill comprise of vacuum pump, dampness trap, vacuum c o n t ro l l e r, d ra i n va lve, a l l i n t e rc o n n e c t i n g tubing/channeling, and some other frill as required to finish the vacuum framework.

Thermometer for Bath - mercury in glass, run 37.8 to 82c, and graduations of 0.2c
Timing Device - a stop watch is fit of perusing up to 1 second.
Cannon - manning vacuum viscometers - viscometer holder and silicone stopper. Size 12 and size 13 (one every) [size 12 is suitable for testing VG-10 and size 13 is suitable for testing VG-20, VG-30, and VG-40 bitumen.

Superior Precision and Consistency

Engineered to deliver high accuracy (0.1C) and excellent temperature uniformity (0.05C), this viscometer bath guarantees repeatable results for all viscosity testing operations. Its digital controller and instantaneous response ensure reliable data collection every time.

Advanced Safety and Robust Design

Safety is paramount, highlighted by the over-temperature cut-off, fuse protection, and toughened glass observation window. The stainless steel chamber and thermal insulation ensure long-term durability, chemical resistance, and a cool-to-touch exterior during operation.

User-Friendly Operation and Flexibility

The bath is equipped for ease of use, with programmable timing, effortless drainage, and support for both analog and digital controls. It can accommodate four standard viscometer tubes, making it versatile for multiple routine analyses in research and industrial labs across India.

FAQ's of Kinematic Viscometer Bath:

Q: How does the Kinematic Viscometer Bath maintain temperature uniformity during tests?

A: The bath uses a precision immersion heater combined with a continuous, noiseless motor-driven stirrer to ensure even heat distribution throughout the stainless steel chamber. This results in exceptional temperature uniformity of 0.05C, essential for accurate viscosity measurements.

Q: What types of liquids can be measured using this viscometer bath?

A: It is designed for determining the kinematic viscosity of many liquids, including petroleum products, oils, and various industrial fluids, adhering to ASTM D445, IS 1448, and IP 71 standards.

Q: When is external cooling required for this viscometer bath?

A: External refrigeration is recommended if testing samples at temperatures below ambient, as the bath is equipped with a provision for external cooling to maintain consistent test conditions.

Q: Where is this equipment typically installed for best results?

A: Designed as a table-top or bench-top unit, it is ideally installed in laboratory environments where temperature and humidity are controlled (ambient temperature between 5C and 40C, up to 90% RH, non-condensing).

Q: What is the process for draining the bath medium after use?

A: The viscometer bath is equipped with a drainage provision, allowing users to easily and safely remove the bath medium once viscosity testing is complete, ensuring convenient maintenance.

Q: How is viscosity measurement achieved, and what is the benefit of the digital LED display?

A: Kinematic viscosity is measured by monitoring the flow of liquid through standard viscometer tubes at controlled temperatures. The digital LED display offers real-time readings with a resolution of 0.01C, enabling precise and instant data monitoring for effective quality control.

Q: What are the main benefits of using this kinematic viscometer bath in laboratories?

A: Key advantages include robust construction, precise and uniform temperature control, safety features to prevent overheating, compliance with international standards, and ease of use for accurate, reliable viscosity determination in a variety of laboratory and industrial settings.
