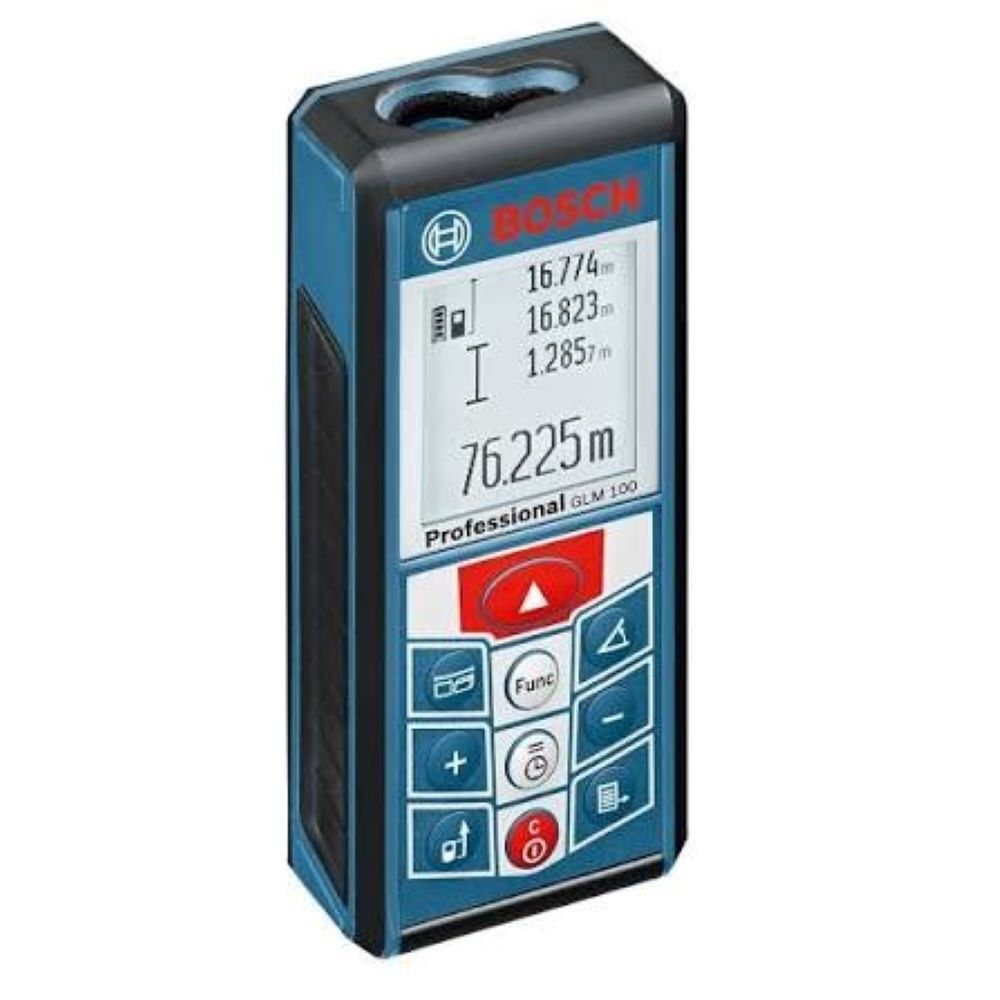

GLM 100 DISTANCE METER

Name: GLM 100 DISTANCE METER
Brand: SUBITEK
Price: 17500 INR
Availability: InStock

Price 17500 INR/ Number

Get a Price/Quote

MOQ : 1 Number

GLM 100 DISTANCE METER Specification

Equipment Type
Laser Distance Meter

Features
Bluetooth, memory for up to 20 measurements, continuous measurement, indirect measurement via Pythagoras function, timer function

Power Supply
2 x 1.5V LR03 (AAA)

Operating Voltage
3V (2 x AAA batteries)

Mounting Type
Handheld

Accuracy
1.5 mm

Resolution
1 mm

Measuring Range
0.05 m - 100 m

Humidity
Maximum 90% RH (non-condensing)

Interface Type
USB (for data transfer)

Display Type
Large, illuminated digital display

Automation Grade
Manual

Response Time
Instantaneous (typically <1s)

Application
Distance measurement, area and volume calculation

Temperature
Operating: -10 C to +50 C, Storage: -20 C to +70 C

Usage
Indoor and outdoor professional measuring tasks

Machine Weight
Approximately 140 g (including batteries)

Control Mode
Manual operation via keypad

Laser Class
Class 2

Memory Storage
Stores up to 20 measurements

IP Rating
IP54 (dust and splash water protected)

Laser Type
635 nm, <1mW

Reference Point Selection
Front/rear edge and tripod

Storage Temperature
-20C to +70C

Time of Battery Operation
Up to 30,000 individual measurements

Tripod Mount
Yes, 1/4-inch thread

Dimensions
111 x 51 x 30 mm

Battery Life Indicator
Yes

GLM 100 DISTANCE METER About

Product Brochure

Type	Accurate, 100-m laser measuring t
Measuring Range	Accurate, 100-m laser measuring t
Brand	Bosch
Usage/Application	Survey
Model Name/Number	Bosch Distance Meter GLM 100-25 C
Range	Accurate, 100-m laser measuring t
Laser Type	Bosch Distance Meter GLM 100-25 C
Warranty	NO Wararanty
Display Line	0.05 to 100m (0.15 to 328 ft)
Country of Origin	Made in India

Advanced Measurement Capabilities

The GLM 100 Distance Meter excels at distance, area, and volume calculations. It offers a comprehensive measuring range from as little as 0.05 meters up to 100 meters, maintaining consistent accuracy at 1.5 mm. Its indirect measurement feature, using the Pythagoras function, allows users to quickly determine lengths that are not directly accessible, improving measurement efficiency on diverse job sites.

User-Friendly Features and Display

Equipped with a large, illuminated digital display, the GLM 100 ensures easy readability in varied lighting conditions. The memory holds up to 20 recent measurements, and the timer function streamlines repetitive tasks. With manual keypad operation and intuitive navigation, users can swiftly switch between continuous or single measurements and recall stored values as needed.

Durable and Portable Design

Designed for daily professional use, this handheld device is built to withstand tough indoor and outdoor conditions. The IP54-rated enclosure protects against dust and water splashes, while its compact dimensions (111mm x 51mm x 30mm) and light weight (approximately 140 grams) make it easy to carry. Operating within a temperature range of -10C to +50C ensures durability across diverse work environments.

Seamless Bluetooth and USB Connectivity

Wireless Bluetooth and USB interfaces support effortless data transfer between the device and a variety of digital tools. This streamlines recording, sharing, and managing measurement data, enhancing productivity on-site. Professionals benefit from immediate access to data for reporting or further processing, reducing manual transcription errors.

FAQ's of GLM 100 DISTANCE METER:

Q: How does the GLM 100 Distance Meter store and recall measurements?

A: The device features a memory function that automatically saves the last 20 measurements. Users can easily access and scroll through these past results via the keypad, making it convenient to reference earlier values without repeating measurements.

Q: What environments are suitable for using the GLM 100 Distance Meter?

A: With its IP54 dust and splash resistance and a humidity range up to 90% (non-condensing), this device is ideal for both indoor and outdoor professional use. It performs reliably in operating temperatures between -10C and +50C, suitable for various construction and surveying sites.

Q: What is the process for transferring measurement data from the device?

A: Measurement data can be transferred wirelessly via Bluetooth or through the USB interface. This supports seamless integration with digital record-keeping systems, enabling users to manage, analyze, and share results without manual data entry.

Q: How long can the GLM 100 operate on a single set of batteries?

A: The distance meter provides up to 25,000 measurements per set of two AAA batteries (1.5V LR03). The automatic shut-off feature conserves power, allowing extended operation before battery replacement is needed.

Q: What are the primary benefits of the timer and continuous measurement functions?

A: The timer function allows for delayed measurements, which can be beneficial when the user requires precise setup or remote operation. Continuous measurement mode updates distance values in real-time, making it easy to find minimum and maximum distances quickly for layout or leveling tasks.

Q: Who can benefit from using the GLM 100 Distance Meter?

A: This tool is invaluable for professionals such as builders, architects, interior designers, surveyors, and real estate agents. Dealers, distributors, manufacturers, and suppliers across India and similar markets will also find it beneficial for a wide range of measuring and estimation tasks.
