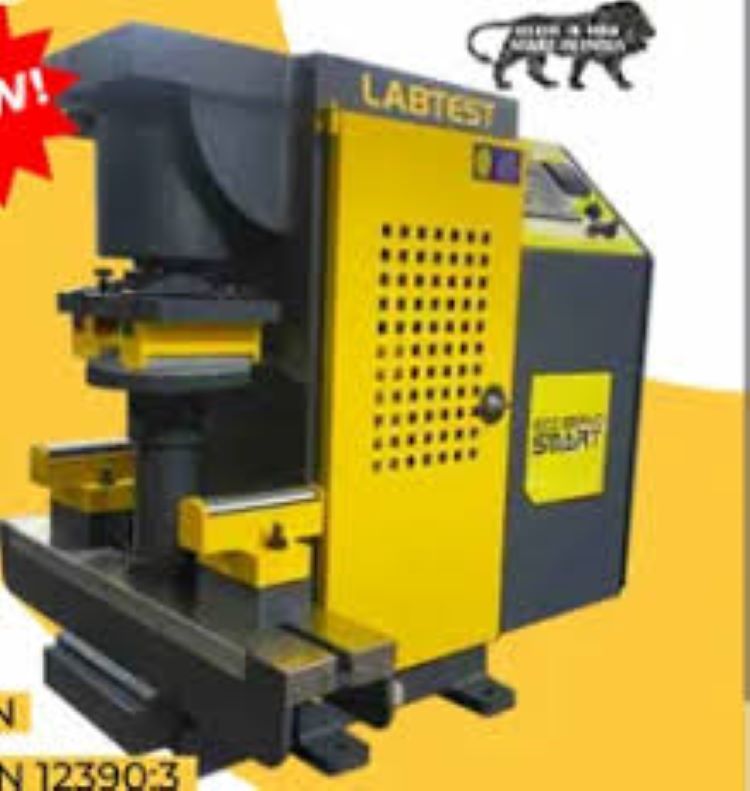

Eco Smart Compression Testing Machine

Name: Eco Smart Compression Testing Machine
Brand: SUBITEK
Price: 195000.0 INR
Availability: InStock

Price 195000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Eco Smart Compression Testing Machine Specification

Interface Type
USB/RS232

Features
Eco Smart digital operation, programmable parameters, automatic data logging, overload protection

Port Size
Standard (50 mm diameter platen)

Mounting Type
Floor-mounted

Resolution
0.1 kN

Display Type
Large Digital LCD Touch Screen

Automation Grade
Automatic

Operating Voltage
220V

Test Range
Up to 2000 kN

Max Height
350 mm (Specimen Height)

Humidity
Up to 95% RH (Non-condensing)

Response Time
<1 second

Measuring Range
02000 kN

Application
Concrete, cement, bricks compression testing

Power Supply
220V AC, 50 Hz

Specimen Size
150 mm x 150 mm x 150 mm / 100 mm x 100 mm x 100 mm

Accuracy
1% of indicated load

Equipment Type
Compression Testing Machine

Frequency
50 Hz

Number of Specimens
Single at a time

Temperature
10C to 35C (operating range)

Hardness
Steel hardened platens

Usage
Industrial/Testing Laboratory

Capacity
2000 kN (200 Ton)

Machine Weight
Approx. 350 kg

Test Speed
15 mm/min (adjustable)

Test Width
150 mm

Test Stroke
Up to 120 mm

Control Mode
Digital/Automatic with touch panel

Standards Compliance
IS 516, ASTM C39, BS EN 12390

Software
PC connectivity with reporting software

Data Storage
Internal memory for 1000 test results

Platen Size
Upper & Lower Platens 220 mm diameter

Color
Light Grey/Blue

Safety Features
Emergency Stop, Overload safety cut-off

Calibration
Factory calibrated with certificate

Eco Smart Compression Testing Machine Trade Information

Minimum Order Quantity
1 Piece

FOB Port
coimbatore

Payment Terms
Cash Advance (CA), Cash in Advance (CID)

Supply Ability
1 Piece Per Day

Delivery Time
1 Days

Sample Available
No

Packaging Details
cotton box

Main Export Market(s)
Asia, Africa

Main Domestic Market
All India, South India, Central India, West India, North India, East India, Gujarat, Karnataka, Kerala, Lakshadweep, Mizoram, Meghalaya, Manipur, Andhra Pradesh, Bihar, Chandigarh, Daman and Diu, Goa, Jharkhand, Odisha, Chhattisgarh, Haryana, Himachal Pradesh, Punjab, Jammu and Kashmir, Madhya Pradesh, Maharashtra, Nagaland, Rajasthan, Sikkim, Tamil Nadu, Telangana, Tripura, Pondicherry, Uttar Pradesh, Uttarakhand, West Bengal, Assam, Delhi, Dadra and Nagar Haveli, Andaman and Nicobar Islands, Arunachal Pradesh

About Eco Smart Compression Testing Machine

Specification:

Smart Series

Capacity: 1000kN / 2000kN / 3000kN

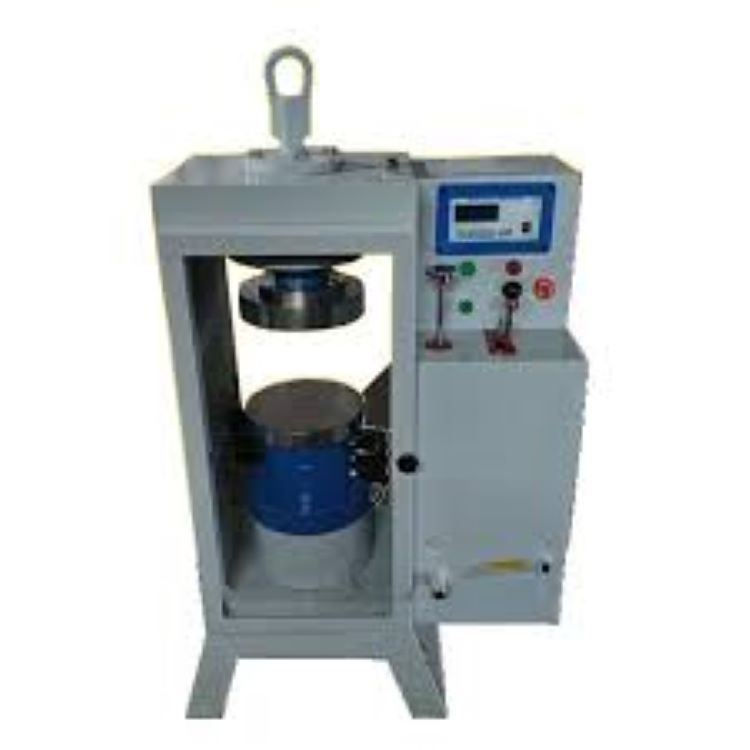

Eco Smart Compression Testing Machine is a sturdy welded plate type load frame complete with hydraulic power pack attached to it solid machined spacers are supplied to test different sizes of concrete specimen. The piston is duly hardened and chromed for fast lift and return.

Features:

7 LCD touch screen
10 point dynamic calibration facility
On board printing facility
Overload safety cut off facility
CNC finished distance pieces supplied to accommodate specimen of different shapes / sizes
Compact & sturdy design load frame to be base mount with pump clamped to frame
Matt finished PU paint in dark color
Emergency stop push button
Safety lockable door
Platen hardness 55 HRC grinded to the finish of 0.03 mm
Real-time graph for load vs time
Sample id, test id and lab id can be input onboard
Weight and age of specimen can be input onboard
230 V AC, single phase motor
SCADA software available (at additional cost)
Meets the key specification of IS -516 & IS 14858 and other ASTM, EN and BS standard depending on platens and accessories chosen.
Actual pace rate display in kN/sec
Automatic stress determination and display.
Self aligning platen with fast accessory change capability.
Data storage approx 10000 records on board with graph in .csv/.jpeg format
Peak stress calculation based on sample type and shape.
No external PC or software needed, so simple to learn and use
4 channel can be connected to connect flexural mode/prism test, split test (at additional cost)
5% overload protection to calibrate the machine to full load

Technical Specifications	Unit	ZI-2058-ES-1	ZI2058-ES-2	ZI2058-ES-3
Capacity	kN	1000	2000	3000
Electronic Display		EO-D	EO-D	EO-D
Ram Diameter	MM	165	234	234
Ram Travel	MM	50	50	50
Least Count	kN	0.001	0.001	0.001
Pace Rate	kN/Sec	1.0 to 15.0	1.0 to 15.0	1.0 to 15.0
Maximum Pressure	Kg/cm	480	480	720
Platen Diameter	MM	220	300	300
Horizontal Clearance	MM	260	320	350
Vertical Day Light	MM	310	310	310
Height of Load Frame	MM	770	890	990
Weight of Load Frame	Kg.	250	480	720
Lead Screw		No	No	No
Specimen Size (can be tested)
Cube	MM	50, 70.6, 100, 150	100, 150, 200	100, 150, 200
Cylinderical	MM	100 x 200	100 x 200, 150 x 300	100 x 200, 150 x 300
Electrical Version
Motor	H.P.	1.0 230V, 1Ph	1.0 230V, 1Ph	2.0 230V, 1Ph
R.P.M.		1440	1440	1440
Electronic Spped Drive		Yes	Yes	Yes
Contactor	V	220	220	220
Height of Pumping Unit	MM	810	810	810
Weight of Pumping Unit	Kg.	90	90	100

Advanced Digital Control and Data Management

Equipped with a modern touch panel interface, the Eco Smart Compression Testing Machine allows for easy operation and programmable test settings. Automatic data logging and internal storage for up to 1000 test results streamline record keeping, while PC connectivity and reporting software facilitate robust data analysis and report generation.

Precision Testing for Multiple Standards

This compression testing equipment meets stringent global standards such as IS 516, ASTM C39, and BS EN 12390, ensuring credible and reproducible results. Its steel-hardened platens and digital accuracy (1% load, 0.1 kN resolution) provide trustworthy measurements for concrete, cement, and brick specimens.

Safety and Operational Excellence

Designed with operator protection in mind, the machine features emergency stop controls and overload safety cut-offs. Factory calibration with certificate guarantees immediate readiness and confidence in test results, while its robust build and floor-mounting design enhance stability and ease of use in demanding industrial and laboratory environments.

FAQ's of Eco Smart Compression Testing Machine:

Q: How does the Eco Smart Compression Testing Machine ensure data accuracy and reliability?

A: The machine is factory calibrated and provides digital accuracy within 1% of indicated load, conforming to IS 516, ASTM C39, and BS EN 12390 standards. Regular calibration certificates and steel-hardened platens further maintain consistent and reliable testing results.

Q: What is the process for conducting a compression test using this machine?

A: Simply place a prepared specimen onto the lower platen, set or select test parameters via the touch panel, and initiate the test. The machine will automatically log data, and results can be stored internally or exported through PC connectivity for detailed analysis.

Q: Where can this compression testing machine be used effectively?

A: It is ideal for industrial quality control, R&D, and testing laboratories specializing in concrete, cement, and brick compression tests. The machine is suitable for use by dealers, distributors, manufacturers, suppliers, and research facilities across India.

Q: When is it beneficial to use programmable parameters and automatic data logging?

A: Programmable parameters and automatic data logging are essential when handling multiple batches or frequent specimen testing, as these features facilitate repeatable test set-ups, efficient data management, and comprehensive reporting without manual intervention.

Q: What safety features protect operators during machine operation?

A: Operator safety is ensured by the emergency stop button, which halts operation instantly, and the overload safety cut-off, protecting both machine and specimen from excessive force damage.

Q: How can results from the machine be accessed and shared?

A: Test results are stored in internal memory and can be downloaded or transferred via USB or RS232 interfaces. The included reporting software enables seamless connection to a PC for advanced analysis, printing, and sharing.

Q: What are the benefits of using the Eco Smart Compression Testing Machine over manual models?

A: Its automatic, programmable operation, fast response time (<1 second), digital touch control, and data storage features eliminate manual errors, facilitate rapid testing, enhance user convenience, and improve overall efficiency in laboratory and industrial environments.
