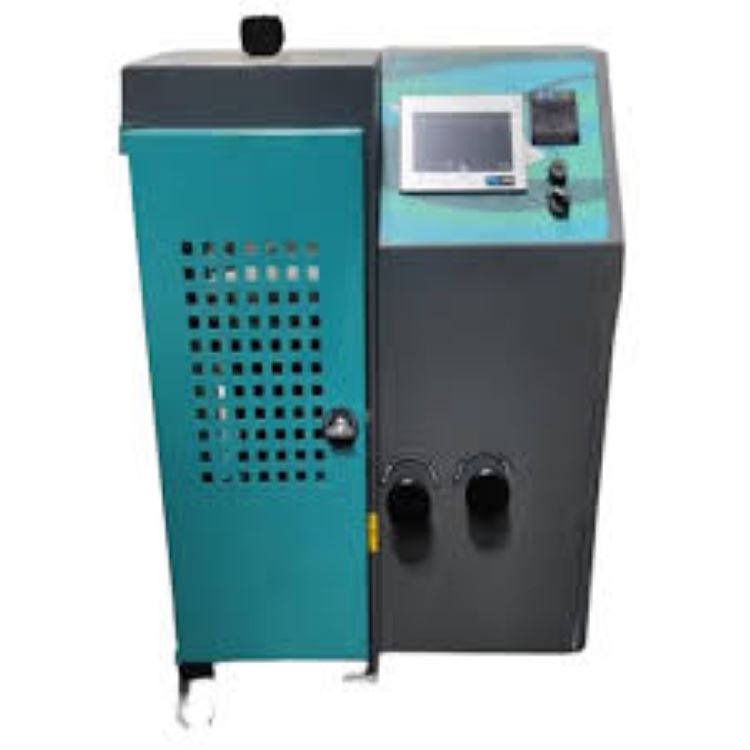

Eco Compression Testing Machine

Name: Eco Compression Testing Machine
Brand: SUBITEK
Price: 150000.0 INR
Availability: InStock

Price 150000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Eco Compression Testing Machine Specification

Test Range
Up to 2000 kN

Power Supply
230 V AC, 50 Hz

Response Time
Instant

Specimen Size
150 mm x 150 mm x 150 mm

Display Type
Analog Dial Gauge

Automation Grade
Manual

Humidity
Up to 85% RH non-condensing

Temperature
10C to 40C

Mounting Type
Floor Standing

Equipment Type
Compression Testing Machine

Interface Type
Manual Controls

Measuring Range
0 1000 kN

Application
Strength Testing of Concrete, Cement, Blocks & Bricks

Max Height
350 mm

Frequency
50 Hz

Accuracy
1% of indicated load

Port Size
Standard

Operating Voltage
230 V AC

Number of Specimens
Single Specimen

Features
Economical, Rugged, Easy to Use

Resolution
0.1 kN

Hardness
Robust Cast Iron Body

Usage
Laboratory, Construction Sites

Capacity
1000 kN (standard), available up to 2000 kN

Machine Weight
Approx. 120 kg

Test Speed
1 mm/min to 10 mm/min (adjustable)

Test Width
250 mm

Test Stroke
Up to 150 mm

Control Mode
Manual / Analog

Accessories Included
Platen Set, Spacer Blocks, Operating Manual

Oil Reservoir Capacity
5 Litres

Paint Finish
Powder Coated

Frame Construction
Heavy Duty Steel Frame

Calibration
Calibrated as per IS: 516

Cylinder Stroke
150 mm

Loading Rate
Controlled 14 N/mm²/min

Pressure Gauge Diameter
150 mm

Maintenance
Low Maintenance Design

Safety Features
Pressure Relieve Valve for Overload Protection

Pump Type
Hand Operated Hydraulic Pump

Eco Compression Testing Machine Trade Information

Minimum Order Quantity
1 Piece

FOB Port
coimbatore

Payment Terms
Cash in Advance (CID), Cash Advance (CA)

Supply Ability
1 Piece Per Day

Delivery Time
1 Days

Sample Available
No

Packaging Details
cotton box

Main Export Market(s)
Africa, Asia

Main Domestic Market
East India, Gujarat, Karnataka, Kerala, Lakshadweep, Mizoram, Meghalaya, Manipur, Andhra Pradesh, Bihar, Chandigarh, Daman and Diu, Odisha, Dadra and Nagar Haveli, All India, South India, Central India, West India, North India, Goa, Madhya Pradesh, Maharashtra, Sikkim, Tamil Nadu, Telangana, Uttarakhand, Jharkhand, Delhi, Andaman and Nicobar Islands, Arunachal Pradesh, Chhattisgarh, Haryana, Punjab, Assam, Nagaland, Pondicherry, Uttar Pradesh, Himachal Pradesh, Jammu and Kashmir, Rajasthan, Tripura, West Bengal

About Eco Compression Testing Machine

Specification:

Capacity: 1000, 2000 & 3000 kN

Eco Compression Testing Machine is a budged CTM manufactured to perform compression testing on concrete cube and cylinder specimens. It is a sturdy welded plate type load frame complete with hydraulic power pack attached to it solid machined spacers are supplied to test different sizes of concrete specimen. The piston is duly hardened and chromed for fast lift and return.

Features:

Overload Cut Off Facility
Piston Over Lift Cut Off Facility
Compact & Sturdy Design Load frame to be Base Mount with Pump Clamped to frame
Matt Finished PU Paint in Dark Color
Push Buttons with Inbuilt Light Indicators
Safety Lockable Door
Platen Hardness 55 HRC grinded to the finish of 0.03 mm

Note: At the time of ordering, please specify, motor - phase: (i) 440 V AC, Three Phase or (ii) 230V AC, Single Phase

Specifications:

Model No.		ZI 2058-1	ZI 2058-2	ZI 2058-3
Capacity	kN	1000	2000	3000
Electronic Display		(EO-D)	(EO-D)	(EO-D)
Ram Diameter	mm	165	234	234
Ram Travel	mm	50	50	50
Pressure Gauge Diameter	mm	Nil	Nil	Nil
Pressure Gauge	kN	Nil	Nil	Nil
Least Count	kN	0.1	0.1	0.1
Maximum Pressure	Kg./cm	480	480	720
Platen Diameter	mm	220	300	300
Horizontal Clearance	mm	260	320	350
Vertical Day Light	mm	310	310	310
Height of Load Frame	mm	770	890	990
Weight of Load Frame	Kg.	250	480	720
Lead Screw		No	No	No
Specimen Size (can be tested)
Cube	mm	50, 70.6, 100, 150	100, 150, 200	100, 150, 200
Cylinderical	mm	100 x 200	100 x 200 150 x 300	100 x 200 150 x 300
Electrical Version
Motor	H.P.	0.5 230 V. 1Ph 440 V. 3PH 50 HZ	1.0 230 V. 1Ph 440 V. 3Ph 50 HZ	2.0 440 V. 3Ph 50 HZ
R.P.M		1440	1440	1440
Contactor	V	220	220	220
Height Of Pumping Unit	mm	810	810	810
Weight Of Pumping Unit	Kg.	90	90	100

Precision and Durability

Built with a rugged cast iron body and a heavy-duty steel frame, the Eco Compression Testing Machine guarantees accurate compressive strength measurements. Its analog pressure gauge enables instant response and high measurement resolution, making it suitable for both laboratory and onsite testing environments.

Advanced Control and Safety

The hand-operated hydraulic pump allows for manual adjustment and controlled loading, while the pressure relieve valve offers overload protection. The adjustable speed and analog controls ensure precise management of the testing process, adding an extra layer of safety and reliability.

Comprehensive Package and Ease of Use

Supplied with platen sets, spacer blocks, and an operating manual, this machine is user-friendly and easy to operate. The floor-standing design and powder-coated finish contribute to practicality and long-lasting maintenance-free use, ensuring dependable results across multiple applications.

FAQ's of Eco Compression Testing Machine:

Q: How do you operate the Eco Compression Testing Machine?

A: The machine is operated manually using a hand hydraulic pump. The operator controls the loading rate and test speed through analog controls to ensure accurate compressive strength assessment of concrete, blocks, and bricks.

Q: What is the calibration standard for this compression testing machine?

A: The Eco Compression Testing Machine is calibrated as per IS: 516 standards, which ensures reliability and compliance in concrete strength testing procedures.

Q: When should the pressure relieve valve be used during testing?

A: The pressure relieve valve automatically activates if the machine is overloaded, preventing equipment damage and ensuring operator safety during compressive strength tests.

Q: Where can this machine be effectively used?

A: It is suitable for laboratories and construction sites, providing precise strength measurements for concrete, cement, blocks, and bricks in various professional environments.

Q: What maintenance is required for the Eco Compression Testing Machine?

A: Thanks to its low-maintenance design and powder-coated surface, routine checks such as oil level monitoring in the 5-litre reservoir and inspection of the hydraulic system are generally sufficient.

Q: How does the test speed range benefit users?

A: With adjustable test speed from 1 mm/min to 10 mm/min, users can select the optimal rate for different specimen types and testing standards, enhancing accuracy and flexibility.

Q: What accessories are included with the machine?

A: The package comes complete with a platen set, spacer blocks, and an operating manual for setup and guidance, simplifying operation and ensuring all essential components are available.
