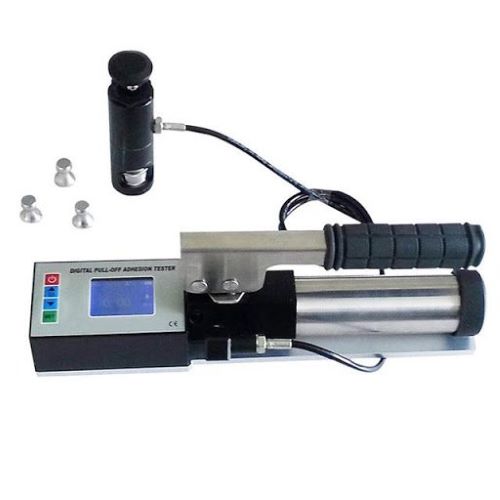

Digital Pull-Off Adhesion Tester

Name: Digital Pull-Off Adhesion Tester
Brand: SUBITEK
Price: 40000.0 INR
Availability: InStock

Price 40000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Digital Pull-Off Adhesion Tester Specification

Hardness
N/A (not applicable)

Equipment Type
Digital Pull-Off Adhesion Tester

Resolution
0.01 MPa

Number of Specimens
Single pull, adaptors available for multiple sizes

Port Size
Standard M20 connection

Operating Voltage
220V AC or battery

Display Type
Digital LCD

Measuring Range
0-200 kg/cm²

Temperature
10°C to 50°C operating

Features
Portable, lightweight, automatic peak hold, memory storage

Test Range
0 - 20 MPa (0 - 200 kg/cm²)

Mounting Type
Handheld or base mountable

Specimen Size
20 mm, 50 mm (optional adaptors available)

Automation Grade
Semi-Automatic

Application
Adhesion testing for coatings, paints, and other bonded materials on substrates

Gas Pressure
Not applicable (manual hydraulic operation)

Max Height
230 mm

Accuracy
±1% of full scale

Interface Type
USB (optional for downloading test reports)

Response Time
Instantaneous (real time)

Frequency
50 Hz

Power Supply
Internal rechargeable battery 7.2V or AC Adapter

Humidity
0-85% RH (non-condensing)

Usage
Testing adhesion strength of coatings

Capacity
20 kN

Machine Weight
5 kg

Test Speed
1 mm/min - 13 mm/min (adjustable)

Test Width
Standard 20 mm (optional adaptors available)

Test Stroke
0-50 mm

Control Mode
Digital, Automatic

Battery Life
Up to 10 hours continuous use

Maximum Pull Area
1963 mm² (with optional adaptors)

Memory Capacity
Stores up to 1000 test results

Minimum Pull Area
314 mm² (Standard)

Included Accessories
Carrying case, dollies, adhesive, charger

Dimensions
300 mm x 175 mm x 150 mm

Calibration
Factory calibrated with certificate

Color
Blue/White

Peel Strength Unit
N/mm², kg/cm², MPa selectable

Data Output Mode
Digital readout and USB export

Digital Pull-Off Adhesion Tester Trade Information

Minimum Order Quantity
1 Piece

FOB Port
coimbatore

Payment Terms
Cash Advance (CA), Cash in Advance (CID)

Supply Ability
1 Piece Per Day

Delivery Time
1 Days

Sample Available
No

Packaging Details
cotton box

Main Export Market(s)
Asia, Africa

Main Domestic Market
North India, East India, Kerala, Nagaland, Rajasthan, Sikkim, Tamil Nadu, Telangana, Tripura, Pondicherry, Uttar Pradesh, Uttarakhand, West Bengal, West India, All India, Central India, Mizoram, Meghalaya, Manipur, Andhra Pradesh, Bihar, Chandigarh, Daman and Diu, Goa, Jharkhand, Odisha, Punjab, Assam, Delhi, Dadra and Nagar Haveli, Himachal Pradesh, Jammu and Kashmir, Madhya Pradesh, Maharashtra, South India, Gujarat, Karnataka, Lakshadweep, Andaman and Nicobar Islands, Chhattisgarh, Haryana, Arunachal Pradesh

About Digital Pull-Off Adhesion Tester

Specification:

In order to perform satisfactorily, coatings must adhere to the substrates on which they are applied. In practice, three different test procedures are used to assess the
resistance of paints and coatings to separation from substrates

Convenient to Use:

Portable design, can be used anywhere.
Built-in rechargeable lithium battery, no need any external power source.
Selectable directly four different sizes dolly for different resolution and testing range
Get the testing results from lcd directly.
Includes all tools needed for testing

Precise:

Each one pressure system is calibrated to within 1% accuracy by NIST traceable load cells
High-precise professional sensor ensures 0.01mpa resolution
Self-aligning dollies ensure to get a reliable testing results for smooth or uneven surfaces.

Main Technical Parameters:

Dolly size: 20mm (standard); 10,14,50mm (optional)
Resolution: 0.01mpa (1psi)
Accuracy: 1% full scale
Max. Pull-off pressure: 10mm dolly 0-80 MPA; 14mm dolly0-40 MPA

20mm dolly 0-20 MPA; 50mm dolly0-3.5 MPA

Power: built-in rechargeable lithium battery, and standard configuration charging adapter.
Adhesion Tester Size: 36075115mm (LxWxH)
Adhesion Tester Weight: 3 kg

Advanced Adhesion Testing Anywhere

With its robust construction and lightweight design (5 kg), this tester is perfect for both field and laboratory use. The handheld or base mountable system ensures versatility, while the generous memory capacity and USB export facilitate thorough testing and report management.

Precision and Versatility

Equipped to test a wide variety of specimen sizes through optional adaptors, the device's accuracy of 1% of full scale and rapid response enable reliable results. The digital LCD interface offers instant readings, peak hold, and customized outputs to suit project requirements.

Comprehensive Accessories and Ease of Use

Each unit ships with essential accessories, including a carrying case, multiple dollies, adhesives, and charger. The tester operates on rechargeable batteries or AC power, ensuring continuous operation for up to 10 hours in environments ranging from 10C to 50C.

FAQ's of Digital Pull-Off Adhesion Tester:

Q: How do I operate the Digital Pull-Off Adhesion Tester?

A: Simply mount the specimen using the provided adhesives and dollies, select your required measurement unit on the digital interface, and initiate the pull-off test. The device automatically displays and stores results, offering instant digital readout and optional USB export.

Q: What types of coatings or materials can be tested using this equipment?

A: This device is suitable for testing the adhesion strength of coatings, paints, and other bonded materials on a variety of substrates including metal, concrete, and composites, making it versatile for industrial, laboratory, and field applications.

Q: Where is the Digital Pull-Off Adhesion Tester commonly used?

A: It is widely used in manufacturing plants, laboratories, fabrication sites, and by coating applicators for quality assurance and performance evaluations. Its portability also makes it ideal for on-site inspections and remote testing assignments.

Q: When should calibration be performed and what is the process?

A: The tester comes factory calibrated with a certificate, ensuring immediate accuracy upon delivery. For ongoing quality assurance, users can request periodic recalibration from authorized service centers according to company standards or regulatory requirements.

Q: What is the benefit of memory storage and USB export?

A: Memory storage allows users to save up to 1000 test results, facilitating data review and quality tracking over time. The USB export function streamlines data transfer for reporting, analysis, and archiving, supporting compliance with industry documentation practices.

Q: Can I test specimens of different sizes with this device?

A: Yes, the tester supports standard 20 mm specimen sizes and offers optional adaptors for 50 mm specimens. The minimum and maximum pull areas are adjustable, accommodating a range of testing needs with available accessories.

Q: What makes this adhesion tester suitable for industrial environments in India?

A: The tester is designed for robust operation in temperature ranges from 10C to 50C and humidity up to 85% RH (non-condensing), with a reliable battery life and sturdy construction to withstand challenging industrial conditions across India.
