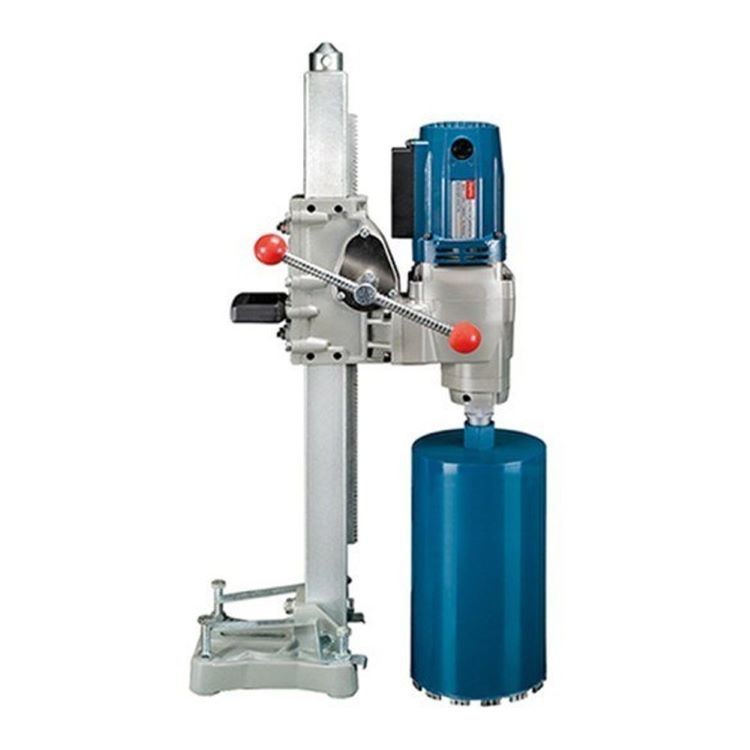

Core Cutting/Core Drilling Machine (Motorised)

Name: Core Cutting/Core Drilling Machine (Motorised)
Brand: SUBITEK
Price: 100000.0 INR
Availability: InStock

Price 100000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Core Cutting/Core Drilling Machine (Motorised) Specification

Accuracy
±1 mm

Max Height
Up to 1000 mm

Interface Type
Manual Controls

Equipment Type
Motorised Core Cutting/Core Drilling Machine

Application
Concrete/Rock core sampling for testing

Number of Specimens
Single specimen at a time

Temperature
5°C to 40°C

Specimen Size
Concrete core up to 150 mm diameter x 350 mm length

Frequency
50 Hz

Automation Grade
Motorised operation

Resolution
1 mm

Power Supply
230 V AC, Single Phase, 50 Hz

Test Range
Suitable for 25 mm to 150 mm diameter core

Measuring Range
25 mm to 150 mm core diameter

Display Type
Analog depth gauge

Operating Voltage
230 V AC, 50 Hz

Response Time
Instant

Humidity
Up to 90% RH (non-condensing)

Features
Sturdy base stand, adjustable clamp, water supply system, robust electric motor, travel arrangement, safety features

Mounting Type
Floor standing with adjustable mounting

Usage
Extraction of core from concrete, pavement, and structures

Capacity
Applies to core drilling in concrete, rocks, stones, and structure material

Machine Weight
Approx. 70-80 kg

Test Speed
Variable (up to 1000 RPM)

Test Stroke
Travel of up to 500 mm approx.

Control Mode
Motorised, Hand Lever Feed

Chuck Type
Compatible with standard core bits

Drive System
Direct drive with reduction gearbox

Frame Material
Powder-coated mild steel

Safety
Overload protection, water drainage facility

Water Supply
Integrated cooling system for wet drilling

Base Type
Sturdy/Heavy-duty steel base with wheels

Motor Type
Heavy-duty single phase electric motor

Movement
Vertical movement by lever and hand-wheel

Noise Level
Less than 75 dB(A)

Bit Mounting
Threaded spindle for core barrel mounting

Drill Travel (vertical)
Approx. 500 mm

Core Cutting/Core Drilling Machine (Motorised) Trade Information

Minimum Order Quantity
1 Piece

FOB Port
coimbatore

Payment Terms
Cash in Advance (CID), Cash Advance (CA)

Supply Ability
1 Piece Per Day

Delivery Time
1 Days

Sample Available
No

Packaging Details
cottonbox

Main Export Market(s)
Africa, Asia

Main Domestic Market
Tripura, Pondicherry, Uttarakhand, West Bengal, All India, South India, East India, Gujarat, Central India, Mizoram, Meghalaya, Andhra Pradesh, Bihar, Chandigarh, Daman and Diu, Goa, Jharkhand, Himachal Pradesh, Jammu and Kashmir, Madhya Pradesh, Maharashtra, Nagaland, Rajasthan, Sikkim, Tamil Nadu, Telangana, Uttar Pradesh, North India, Odisha, Punjab, Assam, Dadra and Nagar Haveli, Andaman and Nicobar Islands, Arunachal Pradesh, Chhattisgarh, Haryana, Delhi, West India, Karnataka, Kerala, Lakshadweep, Manipur

Core Cutting/Core Drilling Machine (Motorised) About

Specification:

Rated Voltage: 220 V / 50Hz
Power Input: 2800W
No-Load Speed: 840rpm
Max. bit diameter: 50mm/100mm/150mm
Shaft Male: 1 1/4"UNC

Features:

Compact size with light weight as well as safety in operation
The drills are equipped with a friction clutch as well as over load current protection for protecting motor
High-strength gear to keep the drill working long hours constantly
Excellent speed, smooth and stability during drilling
Out setting water swivel seal facilitate making replacement when the seal worn out
Bits capacity: 25mm Dia - 150mm Dia

Complete Combination:
The core drill includes drill motor, base, column, carriage, control panel, friction clutch, motor mount plate, rack, gear-box, out setting water swivel seal, hydraulic system. Optional parts include water pump, rod for ceiling jack, water container, adapters.
Application:
The Core Drill is the industry standard, designed for concrete, reinforced concrete, Asphalt and brick in construction

Heavy-Duty Electric Motor Efficiency

Powered by a robust single-phase electric motor, this core drilling machine delivers consistent and reliable performance for core extraction tasks. Its direct drive with reduction gearbox ensures smooth operation even in tough materials. The variable speed capability allows you to adapt to different concrete, stone, or rock types, optimizing cutting efficiency and precision.

Accurate and Safe Core Drilling

Safety and precision are integral to this machine's design. With overload protection, integrated water cooling, and a dynamic threaded spindle for secure bit mounting, risk is minimized. The analog display provides immediate depth feedback with high resolution and accuracy, while the sturdy steel base with wheels ensures both operational stability and mobility on site.

Versatile Core Sampling Capabilities

Designed for extracting cores from a wide range of materials, this motorised unit supports diameters from 25 mm to 150 mm and lengths up to 350 mm. Whether for construction testing, pavement analysis, or structural inspection, the adjustable mounting, variable feed mechanism, and adaptable clamp make this equipment ideal for single-specimen sampling in diverse environments.

FAQ's of Core Cutting/Core Drilling Machine (Motorised):

Q: How is the Motorised Core Cutting/Core Drilling Machine operated?

A: The machine is operated using manual controls with both motorised and hand lever feed. This allows for precise vertical movement of the drill, accommodating various material hardness and thickness.

Q: What materials can this core drilling machine extract samples from?

A: It is suitable for extracting cores from concrete, rocks, stones, and structural materials, making it versatile for construction and geotechnical testing applications.

Q: When should the integrated cooling system be used?

A: The integrated water cooling system should be used during all wet drilling operations to reduce heat buildup, preserve bit lifespan, and ensure clean, accurate core samples.

Q: Where can the machine be mounted or installed?

A: The core drilling machine features a floor-standing sturdy base with adjustable mounting, allowing it to be positioned securely at job sites, laboratories, or construction locations.

Q: What is the process of mounting and changing core bits?

A: Core bits are mounted using a threaded spindle, making attachment and removal straightforward. This design supports standard core bits, ensuring versatility and ease of operation.

Q: What are the benefits of overload protection and water drainage features?

A: Overload protection safeguards both the operator and the equipment by automatically disconnecting the motor in case of excessive load, while the water drainage facility effectively manages slurry and maintains a clean work area.

Q: How accurate is the depth measurement provided by the machine?

A: The analog depth gauge gives instant readings with a resolution of 1 mm and accuracy within 1 mm, ensuring that core samples meet specific testing requirements.
