V Funnel

Name: V Funnel
Brand: SUBITEK
Price: 4000.0 INR
Availability: InStock

Price 4000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

V Funnel Specification

Test Range
Concrete Viscosity / Flow Time

Hardness
High strength steel construction

Number of Specimens
Single Sample per Test

Equipment Type
Concrete Flow Test Apparatus

Port Size
Vessel Discharge Opening: 10 mm

Response Time
Immediate (Manual Timing)

Display Type
Manual/Stopwatch based

Measuring Range
0 to 30 seconds (typical flow time)

Automation Grade
Manual

Power Supply
Not Required (Manual)

Max Height
500 mm approximately

Resolution
1 second

Accuracy
±1 second

Temperature
10°C to 40°C

Application
Testing viscosity and flowability of self-compacting concrete (SCC)

Humidity
Up to 90% RH (Non-condensing)

Specimen Size
1.7 liters capacity

Features
Corrosion-resistant, Easy to clean, Portable design

Mounting Type
Table-mounted or Portable

Usage
Laboratory and Field Testing

Capacity
Approx. 1.7 liters

Machine Weight
Approximately 7 kg

Test Speed
Standard flow rate testing

Control Mode
Manual Operation

Assembly Requirements
Supplied fully assembled

Test Method Standardization
As per EN 445, ASTM C939, or equivalent SCC standards

Finish
Polished for easy cleaning

Sample Fill Level Indicator
Marked inside the vessel

Cleaning Method
Rinse with water after each use

Material of Construction
Stainless Steel

Accessories Included
Base plate and supporting stand

Discharge Time Measurement
Measured with external stopwatch (not supplied)

Shape
V-shaped cross section, with straight sides and flat bottom

V Funnel Trade Information

Minimum Order Quantity
1 Piece

FOB Port
coimbatore

Payment Terms
Cash Advance (CA), Cash in Advance (CID)

Supply Ability
1 Piece Per Day

Delivery Time
1 Days

Sample Available
No

Packaging Details
cotton box

Main Export Market(s)
Asia, Africa

Main Domestic Market
Kerala, All India, South India, Central India, West India, North India, East India, Gujarat, Karnataka, Lakshadweep, Uttar Pradesh, Mizoram, Meghalaya, Manipur, Andhra Pradesh, Bihar, Chandigarh, Daman and Diu, Goa, Jharkhand, Odisha, Punjab, Assam, Delhi, Dadra and Nagar Haveli, Andaman and Nicobar Islands, Arunachal Pradesh, Chhattisgarh, Haryana, Himachal Pradesh, Jammu and Kashmir, Madhya Pradesh, Maharashtra, Nagaland, Rajasthan, Sikkim, Tamil Nadu, Telangana, Tripura, Pondicherry, Uttarakhand, West Bengal

About V Funnel

Specification:

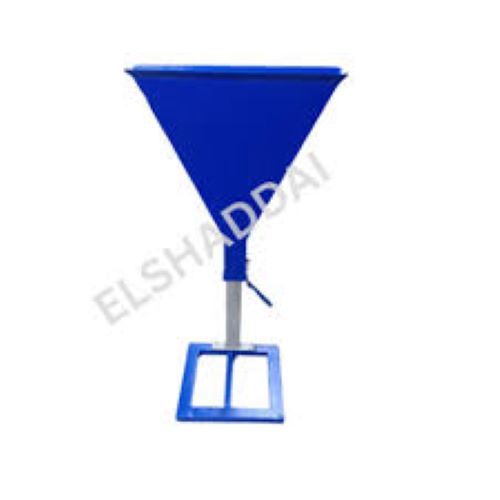

The V Funnel apparatus is used to evaluate the flow time of freshly mixed selfcompacting concrete. The test is not suitable when the maximum size of the aggregate exceeds 22.4 mm.

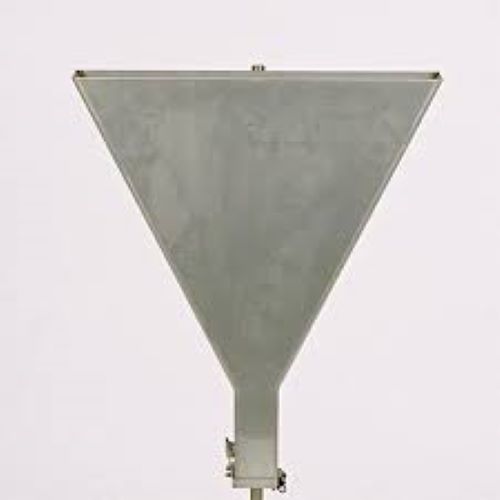

The test set consists of a stainless steel funnel placed vertically on a supporting stand. The discharge orifice is equipped with a lid, which can be momentarily opened.
The l shape box apparatus is supplied complete with:

Filling Hopper
Base

Reliable SCC Flow Testing

Our V Funnel delivers accurate and consistent flow time measurements for self-compacting concrete thanks to its manual control, clear internal indicators, and robust stainless steel construction. The 10 mm discharge port enables repeatable standard flow rate tests within a wide temperature and humidity range, making it a versatile choice for concrete professionals.

Effortless Maintenance and Durability

The polished stainless steel body ensures quick cleaning by simple rinsing with water after each test. Its corrosion-resistant design guarantees longevity and trouble-free use in both laboratory and onsite conditions, meeting all the demands of heavy-duty concrete testing applications.

FAQ's of V Funnel:

Q: How is the flow time measured with the V Funnel Concrete Flow Test Apparatus?

A: Flow time is measured manually using an external stopwatch (not supplied) as the concrete passes through the 10 mm vessel discharge opening. The process adheres to EN 445, ASTM C939, or similar SCC testing standards.

Q: What type of concrete can be tested using this apparatus?

A: The V Funnel is specifically designed for testing the viscosity and flowability of self-compacting concrete (SCC), with a measuring range suitable for flow times of 0 to 30 seconds.

Q: When should the V Funnel be cleaned after testing?

A: It should be rinsed thoroughly with water immediately after each use to remove residual concrete and maintain a polished finish for optimal repeatable results.

Q: Where can the V Funnel be used?

A: The apparatus is suitable for both laboratory and field environments. Its portable and table-mounted design allows flexible placement for various concrete testing scenarios.

Q: What is the process for preparing a sample for flow testing?

A: Fill the vessel up to the marked fill indicator inside (approx. 1.7 liters), then release the discharge manually to observe and record the flow time using an external stopwatch.

Q: How does the V Funnel benefit concrete producers and testers?

A: It provides immediate, accurate flow rate assessments that help in quality control of SCC, supports compliance with recognized standards, and speeds up the testing workflow with its easy-to-clean and portable configuration.
