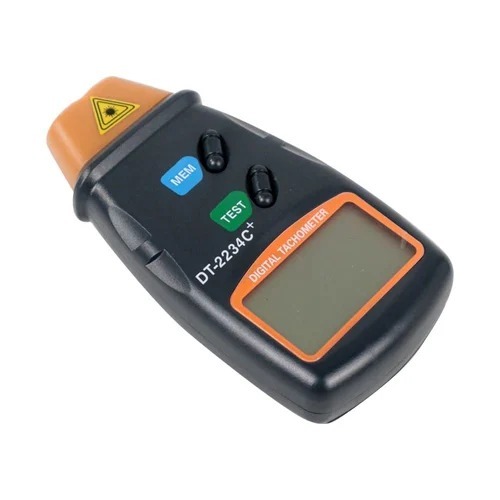

tacho meter

Name: tacho meter
Brand: SUBITEK
Price: 3000 INR
Availability: InStock

Price 3000 INR/ Number

Get a Price/Quote

MOQ : 1 Number

tacho meter Specification

Temperature Resistance
Operating temperature: 0C to 50C

Features
Memory function, Auto zero, Data hold, Low battery indication, Non-contact measurement

Accuracy
(0.05%+1 Digit)

Speed Range
2.5 - 99,999 RPM

Power Supply
Battery operated

Control Type
Button operated

Shape
Ergonomic handheld

Display Type
Large LCD digital display

Type
Digital Tachometer

Dimension (L*W*H)
Approx. 130 x 60 x 29 mm

Equipment Type
Non-contact Handheld Tachometer

Equipment Materials
ABS Plastic

Power
3 x 1.5V AA Batteries

Voltage
4.5V DC (from batteries)

Material
Plastic body with electronic components

Application
Measuring rotational speed (RPM) of motors and machines

Storage
Last value, max value, min value memory

Measurement Distance
50mm to 500mm

Auto Power Off
Yes

Display Size
5 digits display

Weight
Approx. 120g (without batteries)

Detection Method
Laser beam (photo sensor)

Sampling Time
0.8 seconds (over 60RPM)

Resolution
0.1 RPM (2.5 - 999.9 RPM), 1 RPM (over 1000 RPM)

tacho meter About

RPM range	2.5-99999 RPM
Measuring distance	10-100 cm
Resolution	0.1 RPM
Light source	LED
Usage/Application	Speed Measurement
Material	ABS
Display type	LCD
Accuracy	0.05
Power source	AA battery
Color	Black
Country of Origin	Made in India
Type Of Tachometer	Digital Tachometer
Brand	TNEI

Lcd display 5 digits 18mm 0 7Lcd with function annunciation
Test range 2 5 To 99 999 rpmrmin Memory max Value min Value and last value
Accuracy 0 05 1 Digit Sampling time 0 8 Sec Over60 rpm

Advanced Laser Technology for Precise Measurement

This tachometer uses a laser beam photo sensor for non-contact measurement, ensuring accurate RPM readings without any physical connection to the machine. The advanced sensor measures from a safe distance of 50mm to 500mm, making it ideal for moving or hard-to-reach equipment.

High Resolution and Wide Range

You can measure rotational speeds from as low as 2.5 RPM up to 99,999 RPM. The device provides detailed resolution down to 0.1 RPM for slower speeds and 1 RPM for higher speeds, making it versatile for a variety of industrial and mechanical applications.

User-Friendly Features and Ergonomic Design

With an auto-zero function, data hold, memory for min/max/last values, and an auto power-off feature, this handheld tachometer is engineered for convenience. Its lightweight, ergonomic ABS plastic body makes prolonged use comfortable, and the large LCD display ensures easy reading even in challenging environments.

FAQ's of tacho meter:

Q: How do I use the digital tachometer to measure RPM?

A: To use the tachometer, point the laser sensor at the rotating object from a distance between 50mm and 500mm. Press the power button, align the laser, and the device will display the RPM on its large LCD screen.

Q: What is the measurement range and resolution of this tachometer?

A: This tachometer measures rotational speeds from 2.5 RPM to 99,999 RPM. It has a resolution of 0.1 RPM for speeds up to 999.9 RPM, and 1 RPM for readings above 1,000 RPM, ensuring precise measurements across its full range.

Q: When should I use the memory function?

A: The memory function is useful when you need to recall the last measured value, as well as the minimum and maximum RPM recorded during a session, helping you monitor variations and trends over time.

Q: Where can this tachometer be used?

A: This device is suitable for use in workshops, factories, laboratories, and by professionals such as dealers, distributors, fabricators, and manufacturers involved in machine maintenance or testing across various industries in India.

Q: What is the process for replacing the batteries?

A: When the low battery indicator appears, simply slide open the battery compartment, replace the three 1.5V AA batteries with fresh ones, and securely close the lid to resume operation.

Q: What are the main benefits of using this non-contact handheld tachometer?

A: This tachometer offers safe, accurate, and fast RPM measurement without needing to make physical contact with moving parts. Its memory, data hold, and ergonomic design make it a reliable and user-friendly tool for professionals.
