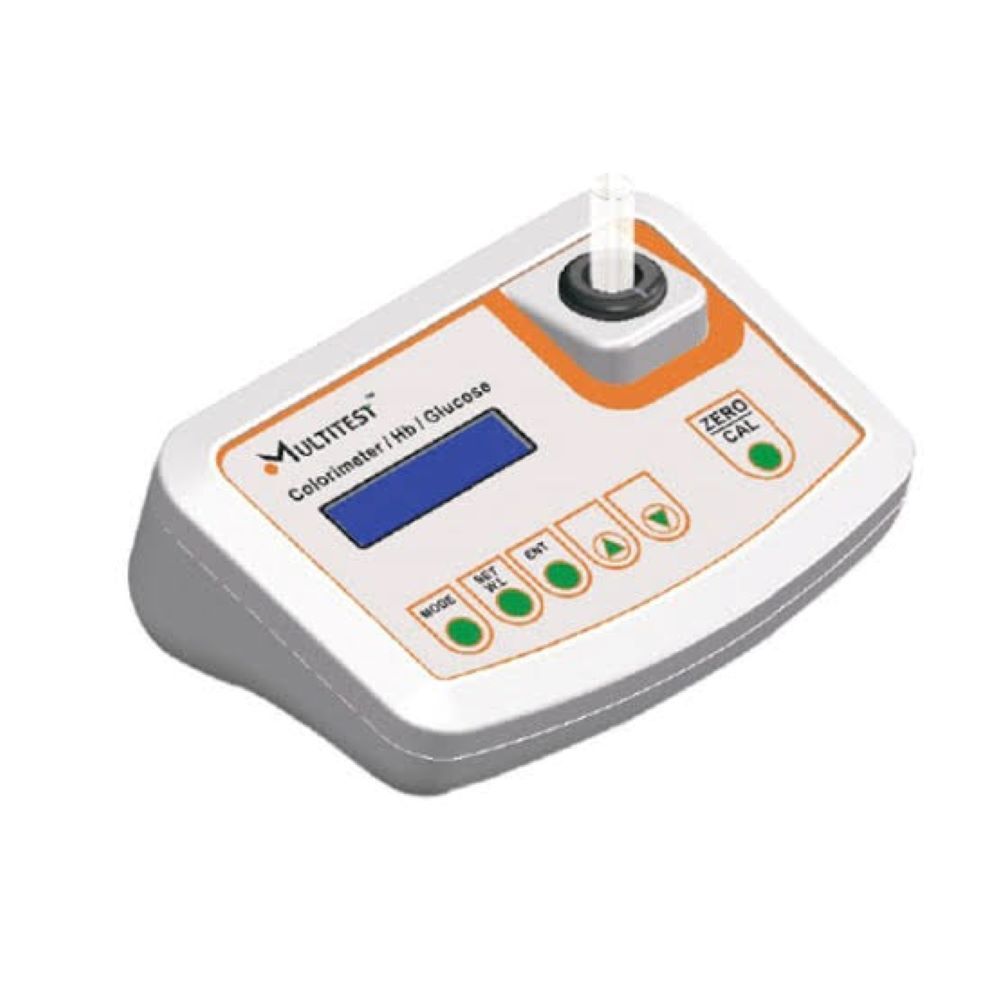

photo colori hemoglobin glucose meter

Name: photo colori hemoglobin glucose meter
Brand: SUBITEK
Price: 8000 INR
Availability: InStock

Price 8000 INR/ Number

Get a Price/Quote

MOQ : 1 Number

photo colori hemoglobin glucose meter Specification

Power Supply
9V DC (Battery/Adapter)

Features
Auto Zero, Direct Reading, Portable, User-friendly, Quick Result

Control Type
Membrane Keypad Control

Accuracy
0.02 OD

Display Type
Digital LCD Display

Shape
Rectangular

Glass Type
Compatible with Standard Test Tubes/Cuvettes

Type
Photo Colorimeter Hemoglobin Glucose Meter

Dimension (L*W*H)
220 mm x 170 mm x 95 mm (Approx)

Equipment Type
Diagnostic Laboratory Instrument

Equipment Materials
ABS Plastic Body

Power
9V DC / 220V AC Adapter

Voltage
220V AC

Material
Plastic & Electronic Components

Application
Used for estimation of hemoglobin and glucose in blood samples

Sample Volume
Minimum 1 ml

Interface
No PC/Printer connectivity (standard)

Memory
Stores up to 100 test results

Humidity Range
Up to 85% RH

Operating Temperature
10C to 40C

Display Resolution
0.01 OD

Calibration
Auto Calibration

Sample Holder
Test Tube / Cuvette support

Measuring Range
0-300 mg/dl (Glucose), 0-24 g/dl (Hemoglobin)

Wavelength Range
505 nm (for Hemoglobin)

Lamp Type
LED Source

photo colori hemoglobin glucose meter About

specification

wavelength range:430-700nm

filter:built -in 11 digital filter >20,000 hour life

filter wavelength:430,470,490,510,540,550,580,610,630,700nm

display parameter :hemoglobinand glucose is beta version for testing

Accurate and Fast Hemoglobin and Glucose Testing

This hemoglobin glucose meter uses an advanced photo colorimeter with LED light source at 505 nm for precise measurements. Designed to deliver results quickly and reliably, it supports a broad measuring range for both glucose and hemoglobin, making it suitable for diverse diagnostic requirements. The auto-calibration feature and high display resolution enhance the accuracy and usability of the instrument.

User-Friendly Design and Portability

Featuring a digital LCD display, membrane keypad control, and auto zero function, the device ensures simple operation for users at any skill level. Its compact rectangular form and lightweight ABS plastic construction make it highly portable, enabling convenient usage in various healthcare environments. The direct reading feature minimizes manual calculations and error susceptibility.

Versatile Support for Laboratories and Clinics

This diagnostic instrument is suitable for use by dealers, distributors, exporters, fabricators, manufacturers, producers, retailers, suppliers, and traders across India. Whether in a hospital lab or a diagnostic clinic, it provides reliable, direct measurement of hemoglobin and glucose without requiring external PC or printer connections. The device adapts to standard test tubes or cuvettes, facilitating integration into existing laboratory workflows.

FAQ's of photo colori hemoglobin glucose meter:

Q: How does the photo colorimeter measure hemoglobin and glucose levels?

A: The device employs an LED light source at 505 nm to analyze blood samples placed in a standard test tube or cuvette. It measures the color intensity, correlating it to the concentration of hemoglobin or glucose in the sample, and displays the results digitally.

Q: What is the process for using the hemoglobin glucose meter?

A: To operate the device, insert a prepared blood sample (minimum 1 ml) into the test tube or cuvette, place it in the sample holder, and use the membrane keypad to start the measurement. The device automatically calibrates, measures, and delivers the result on the digital LCD display.

Q: What testing ranges does this device support for hemoglobin and glucose?

A: The meter measures glucose within a range of 0-300 mg/dl and hemoglobin between 0-24 g/dl, allowing it to accommodate a variety of clinical sample concentrations.

Q: Where can this device be used most effectively?

A: It is ideal for diagnostic laboratories, hospitals, clinics, and other healthcare settings across India, especially where quick, reliable measurement of hemoglobin and glucose is essential.

Q: What are the key benefits of using this photo colorimeter?

A: Key advantages include fast and accurate results, user-friendly controls, portability, auto calibration, direct digital readings, and memory storage for up to 100 results, improving workflow efficiency in clinical settings.

Q: Is the machine compatible with standard test tubes and cuvettes?

A: Yes, the instrument is designed to support standard laboratory test tubes and cuvettes, ensuring compatibility with commonly available disposables.

Q: Does this device require a computer or printer for operation?

A: No PC or printer connectivity is needed for standard operation. The results are displayed directly on the integrated digital LCD screen, and up to 100 test results can be stored within device memory.
