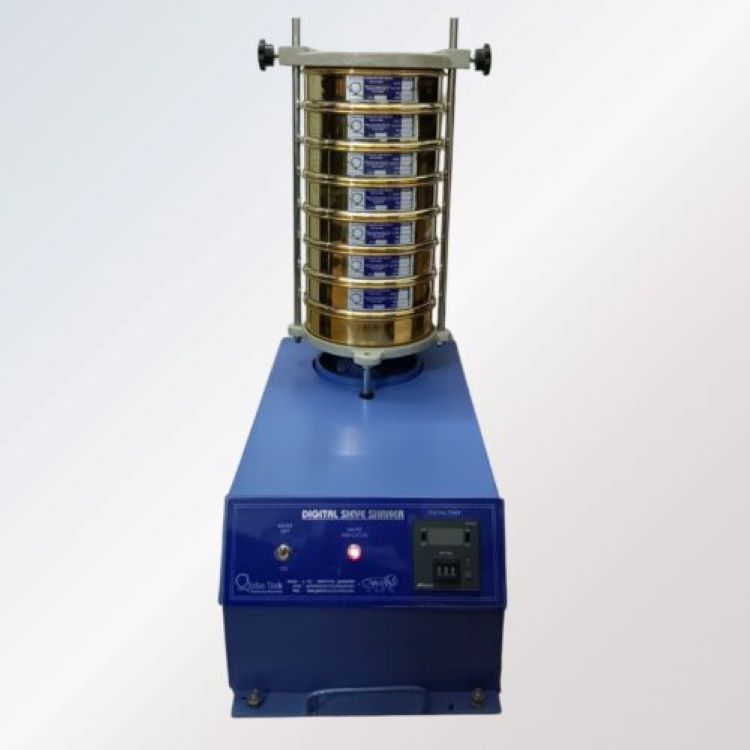

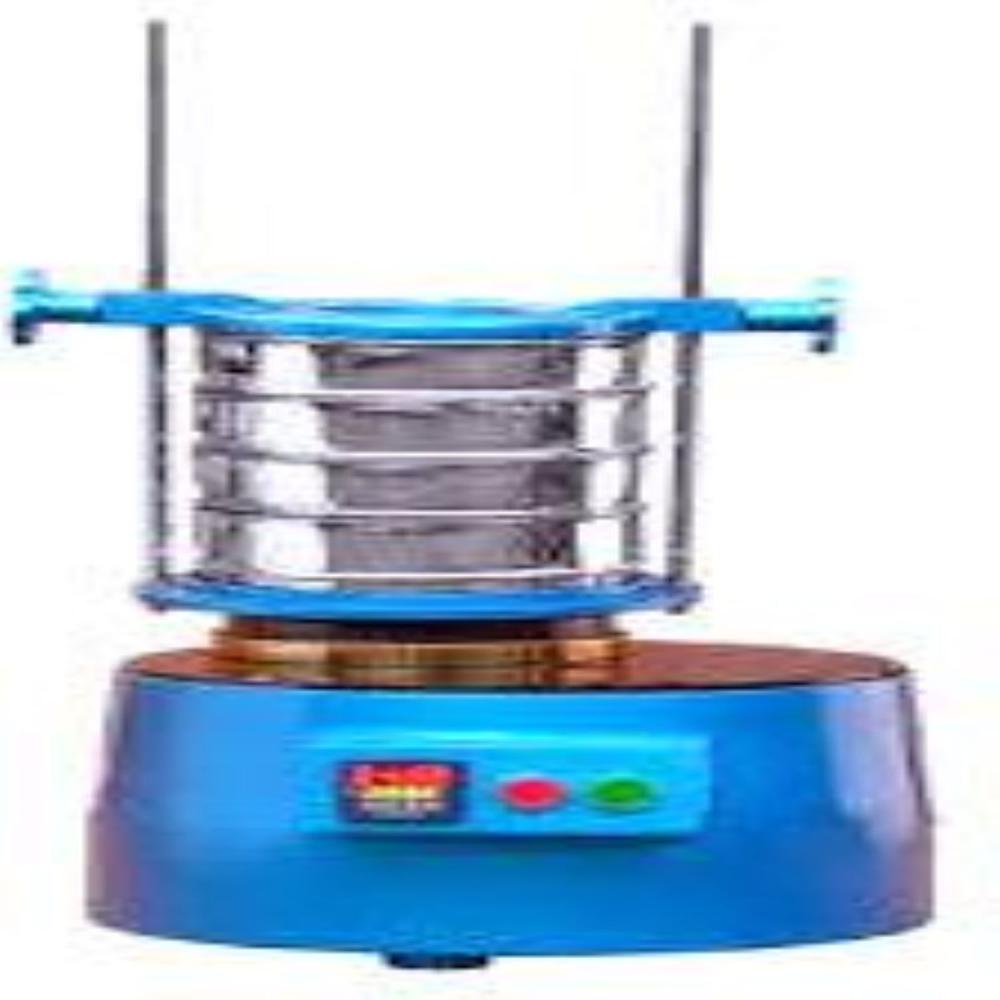

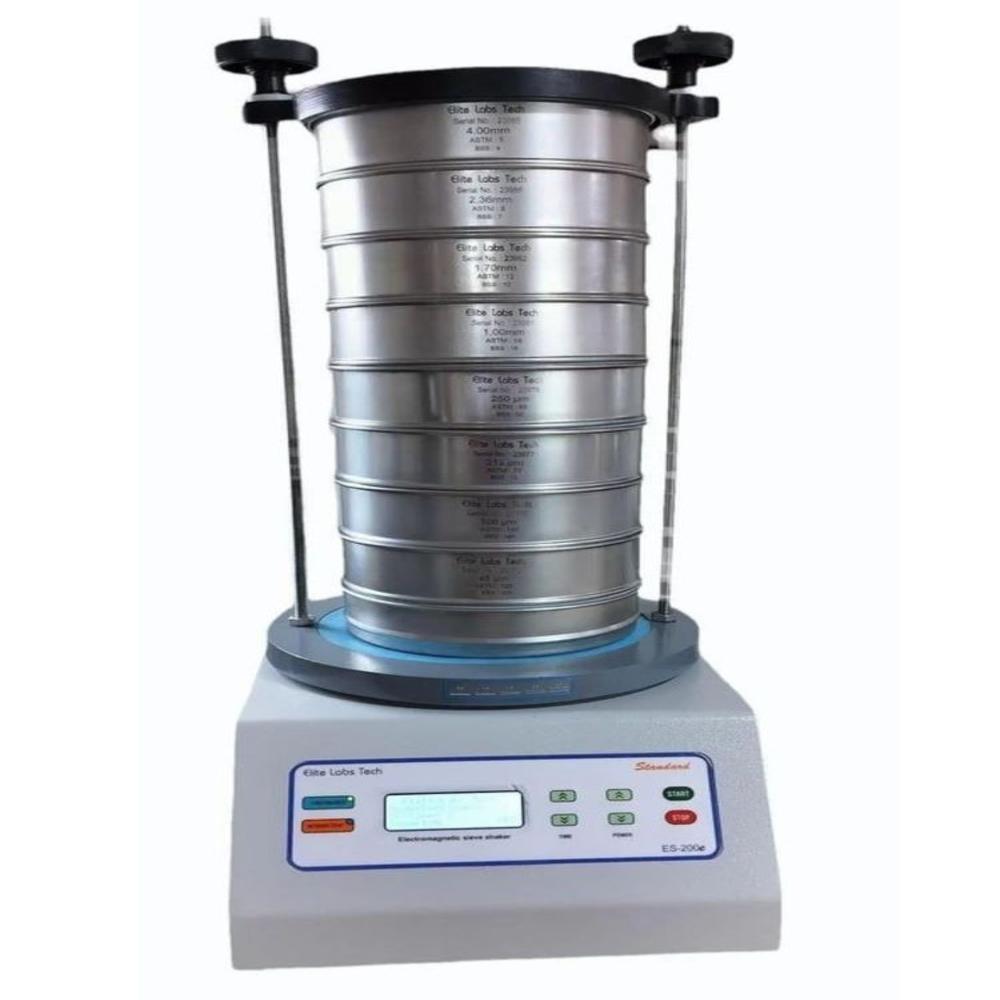

Sieve Shaker - Gyratory

Get a Price/Quote

MOQ : 1 Piece

Sieve Shaker - Gyratory Specification

Frequency
50 Hz

Test Range
Suitable for test sieves from 4 to 8 inch diameter

Features
Heavy base, adjustable sieving time, robust design

Response Time
Immediate mechanical operation

Mounting Type
Bench-top

Max Height
Approx. 48 cm (with sieve stack)

Resolution
Mesh dependent

Application
Particle size analysis / Laboratory testing

Specimen Size
Depends on sieve diameter

Number of Specimens
Holds up to 7 standard sieves plus pan and lid

Automation Grade
Semi-automatic

Temperature
Ambient

Operating Voltage
230 V AC

Interface Type
Manual

Accuracy
Conforms to IS 2386 (Part I)

Display Type
No digital display, mechanical timer

Measuring Range
Particle sizes based on sieve mesh

Equipment Type
Gyratory Sieve Shaker

Power Supply
230 V AC, 50 Hz

Usage
Laboratory and industrial material testing

Capacity
As per sieve stack

Machine Weight
Approximately 45 kg

Test Speed
260 RPM (fixed gyratory motion)

Test Stroke
25 mm (approx)

Control Mode
Manual On/Off Switch with Timer

Finish
Corrosion-resistant finish

Compliance
Meets relevant laboratory standards

Noise Level
Below 80 dB

Construction Material
Mild steel with powder coating

Drive Mechanism
Electric motor with eccentrically mounted weights

Sieve Compatibility
Works with both brass and stainless steel test sieves

Timer Range
0 to 60 minutes

Sieve Shaker - Gyratory Trade Information

Minimum Order Quantity
1 Piece

FOB Port
coimbatore

Payment Terms
Cash Advance (CA), Cash in Advance (CID)

Supply Ability
1 Piece Per Day

Delivery Time
1 Days

Sample Available
No

Packaging Details
cotton box

Main Export Market(s)
Asia, Africa

Main Domestic Market
West Bengal, South India, Central India, West India, North India, East India, Gujarat, Karnataka, Kerala, Lakshadweep, Mizoram, Meghalaya, Manipur, Andhra Pradesh, Bihar, Chandigarh, Jharkhand, Odisha, Punjab, Assam, Delhi, Dadra and Nagar Haveli, Andaman and Nicobar Islands, Uttarakhand, All India, Daman and Diu, Goa, Arunachal Pradesh, Chhattisgarh, Haryana, Himachal Pradesh, Jammu and Kashmir, Madhya Pradesh, Maharashtra, Nagaland, Rajasthan, Sikkim, Tamil Nadu, Telangana, Tripura, Pondicherry, Uttar Pradesh

About Sieve Shaker - Gyratory

Specification:

Carries upto 7 sieves of 150 or 200 mm diameter. The shaker is driven by a 1/4 H.P. Motor through a reduction gear immersed in oil. The sieve table does not rotate but is inclined from the vertical axis and the direction on inclination charges progressively in clockwise direction.
If the stop pin below the table is removed, the shaker can have a rotary motion. In addition to this gyratory motion of the table, there is an upward and downward movement ensuring that each square cm of the sieve is utilized. A pair of rods and a holder can be fixed on the
top of the upper most sieve, and thus the sieve set in firmly held. Suitable for operation from 230 V 50 Hz, Single phase A.C. supply.
a) Adopter for 300 mm dia. sieve available at extra cost
b) Adopter for 450 mm dia. sieve available at extra cost

Versatile Sieve Compatibility

This gyratory sieve shaker is engineered to work seamlessly with both brass and stainless steel test sieves, spanning sizes from 4 to 8 inches in diameter. Its adaptable design supports diverse laboratory requirements for particle size analysis, making it suitable for a wide array of sample types and mesh specifications.

Reliable Performance & Robust Design

Featuring a heavy base, mechanical timer (0-60 minutes), and rugged construction with powder-coated mild steel, the shaker promises durability and consistent performance. The fixed 260 RPM gyratory motion and 25 mm stroke ensure precise particle separation while maintaining a noise level below 80 dB for user comfort.

Compliance, Safety & Ease of Use

Meeting relevant laboratory standards, including IS 2386 (Part I), this sieve shaker combines safety with simplicity. It operates via a manual On/Off switch and timer, with immediate mechanical response and a corrosion-resistant finish, making routine laboratory or industrial analysis both safe and straightforward.

FAQ's of Sieve Shaker - Gyratory:

Q: How does the gyratory sieve shaker operate during particle size analysis?

A: This sieve shaker functions through an electric motor paired with eccentrically mounted weights, producing a fixed gyratory motion of 260 RPM. The timer allows adjustment from 0 to 60 minutes, and the machine holds up to seven test sieves (plus pan and lid) for efficient separation of particles based on mesh size.

Q: What types of test sieves are compatible with this equipment?

A: The shaker is designed to accommodate both brass and stainless steel test sieves, supporting sieve diameters ranging from 4 to 8 inches. This flexibility enables accurate particle size analysis across various materials and testing standards.

Q: When should I use the sieve shaker in laboratory or industrial settings?

A: Utilize the sieve shaker for particle size analysis whenever precise granularity assessment of powders, aggregates, or other construction materials is required. It is particularly effective for routine laboratory testing and quality control in industrial environments.

Q: Where is the gyratory sieve shaker mounted for operation?

A: The equipment features a bench-top mounting design, allowing secure and stable operation on laboratory tables or workbenches. Its compact footprint (maximum height: approximately 48 cm with sieve stack) makes it suitable for restricted spaces.

Q: What is the process for conducting a test using this gyratory sieve shaker?

A: Begin by stacking the required number of sieves and inserting them into the shaker, followed by the specimen material. Set the timer based on the desired sieving duration, switch the machine on, and allow the gyratory motion to separate the sample by particle size. Results are determined by the material retained on each sieve.

Q: How does the corrosion-resistant finish benefit long-term usage?

A: The powder-coated, corrosion-resistant finish on the mild steel body protects the shaker from environmental factors and chemical exposure, ensuring a long operational lifespan and minimal maintenance requirements.

Q: What are the main advantages of using this sieve shaker for testing?

A: Key benefits include accurate mesh-dependent analysis, conformity to IS 2386 (Part I) standards, semi-automatic operation, low noise (below 80 dB), and adjustable sieving duration. Its robust construction and reliability make it a preferred choice for laboratories and industrial testing facilities.
