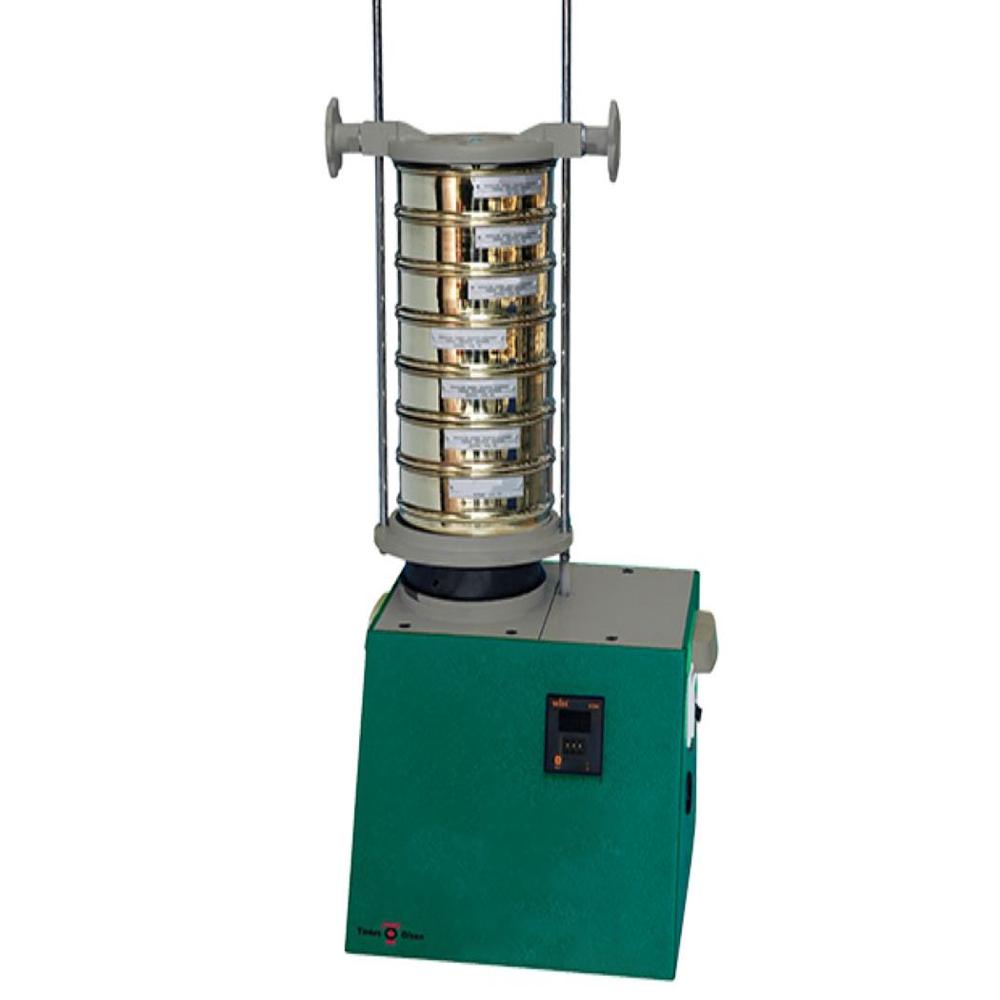

Rotatap Motorized Sieve Shakers

Get a Price/Quote

MOQ : 1 Piece

Rotatap Motorized Sieve Shakers Specification

Power Supply
220 V AC, 50 Hz single phase

Number of Specimens
Up to 7 sieves plus pan and lid

Hardness
Heavy-duty cast and mild steel body

Frequency
50 Hz

Accuracy
±2% sieving repeatability

Mounting Type
Bench top

Resolution
Dependent on sieve mesh size

Humidity
Up to 85% RH non-condensing

Port Size
Sieve diameter: 200/203 mm

Display Type
Analog timer display

Specimen Size
Suitable for 200 mm / 8 diameter sieve

Equipment Type
Motorized Sieve Shaker

Test Range
Particle size 4 mm to 38 microns

Interface Type
Manual controls

Temperature
Operating range 5°C to 40°C

Application
Fine particle and granular material sieving for laboratories

Max Height
Approx. 650 mm with sieves

Operating Voltage
220V AC

Features
Low noise, robust body, quick clamping system

Automation Grade
Semi-automatic

Measuring Range
38 micron to 4 mm

Response Time
Immediate on operation

Usage
Particle size distribution analysis

Capacity
1-2 kg sample load

Machine Weight
Approximately 40-50 kg

Test Speed
270-290 oscillations/minute

Test Width
203 mm (8 inch sieves)

Test Stroke
25 mm

Control Mode
Timer based manual and automatic operation

Maintenance
Minimal lubrication required

Material Compatibility
Powder, granules, sand, cement, chemicals

Compliance
IS, ASTM sieve standards

Finish
Powder coated body

Drive Mechanism
Electric motor and cam action

Timer Range
0-60 minutes

Clamping System
Spring loaded

Noise Level
Less than 70 dB(A)

Protection
Overload cut-off protection

Rotatap Motorized Sieve Shakers Trade Information

Minimum Order Quantity
1 Piece

FOB Port
coimbatore

Payment Terms
Cash Advance (CA), Cash in Advance (CID)

Supply Ability
1 Piece Per Day

Delivery Time
1 Days

Sample Available
No

Packaging Details
cotton box

Main Export Market(s)
Asia, Africa

Main Domestic Market
Gujarat, Karnataka, Kerala, Lakshadweep, Andhra Pradesh, Bihar, Chandigarh, Daman and Diu, Goa, Jharkhand, Odisha, Punjab, Assam, Delhi, Dadra and Nagar Haveli, Andaman and Nicobar Islands, Arunachal Pradesh, Chhattisgarh, Haryana, All India, South India, Central India, West India, North India, East India, Himachal Pradesh, Jammu and Kashmir, Madhya Pradesh, Maharashtra, Nagaland, Rajasthan, Sikkim, Tamil Nadu, Telangana, Tripura, Pondicherry, Uttar Pradesh, Uttarakhand, West Bengal, Mizoram, Meghalaya, Manipur

About Rotatap Motorized Sieve Shakers

Specification:

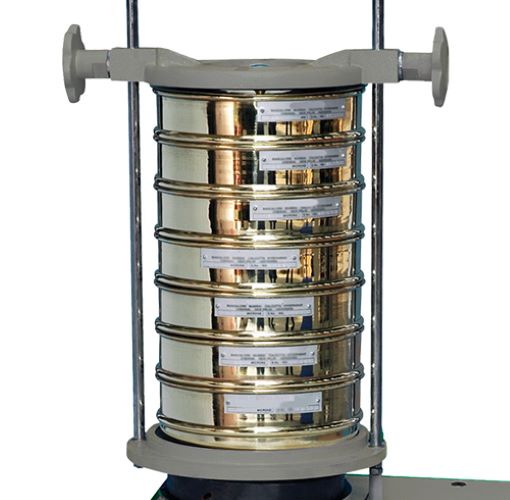

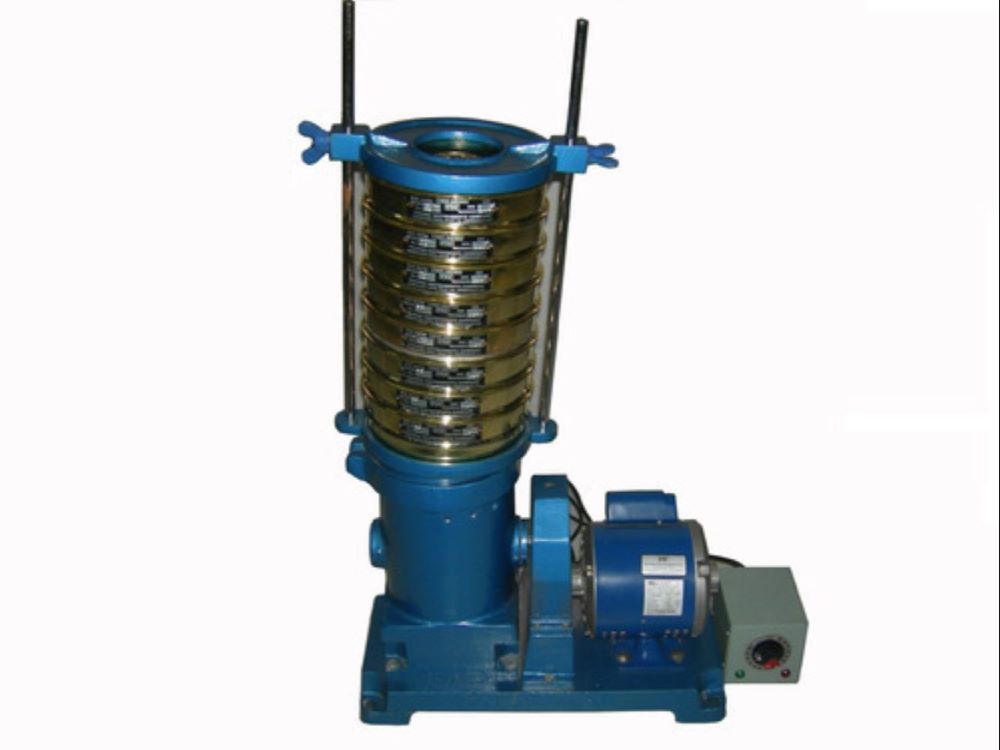

Rotatap Motorized Sieve Shaker, with Time Adjustment, for 200 mm (8) Dia. Frame Sieves

Rotatap Motorized Sieve Shaker is designed to be used for 8 diameter sieves. This shaker provides 278 oscillations with a horizontal circular motion and 150 taps per minute with vertical tapping motion to produce an effective sieving action.

Technical Specifications

Sieve Capacity	7 pieces of 200 mm (8) sieves + pan and cover
Timer	99 minute, digital
Dimensions	680x880x750 mm (Packed)
Weigth (approx.)	135 kg (Paxcked)
Power	1/4 HP

Efficient Particle Analysis

The Rotatap Motorized Sieve Shaker is optimized for particle size distribution testing in laboratory environments. Its precise oscillation speed and repeatable performance make it ideal for fine and granular material analysis. The machine accommodates up to seven sieves, facilitating multi-grade separation in a single cycle. Its robust construction and powder-coated body stand up to demanding operational conditions, while semi-automatic controls streamline workflow and ensure reliable results.

User-Friendly Design with Safety Features

Engineered for convenience, this sieve shaker features an intuitive manual interface with timer-based control. The spring-loaded clamping system promotes quick specimen changes and secure operation. Overload cut-off protection safeguards against operational mishaps, while low noise output fosters a comfortable lab environment. Maintenance requirements are minimal, restricted primarily to occasional lubrication, which reduces downtime and enhances productivity.

FAQ's of Rotatap Motorized Sieve Shakers:

Q: How does the Rotatap Motorized Sieve Shaker operate for particle size analysis?

A: The sieve shaker uses an electric motor with cam action to oscillate sieves at 270-290 cycles per minute. You can set the timer for up to 60 minutes, and the machine operates automatically or manually to separate particles across seven sieve layers plus pan and lid.

Q: What materials are compatible with this sieve shaker?

A: The equipment is suitable for analyzing powders, granules, sand, cement, and chemical samples. Its robust cast and mild steel body, paired with a powder-coated finish, ensures durability and resistance when handling various laboratory materials.

Q: When should I perform maintenance on the sieve shaker?

A: Routine maintenance involves minimal lubrication, typically scheduled according to laboratory usage frequency. The design minimizes downtime and keeps servicing straightforward.

Q: Where can the Rotatap Motorized Sieve Shaker be installed in a lab?

A: This machine is designed for bench-top mounting, making it compatible with most laboratory setups. Its compact footprint and low noise level suit both small and larger analytical facilities.

Q: What is the process for setting up and clamping sieves?

A: The spring-loaded clamping system allows users to quickly install or remove sieves. Simply place up to seven sieves (plus pan and lid) in the designated area, secure with the spring clamps, and select the test parameters on the manual interface.

Q: How does overload protection benefit laboratory operations?

A: Overload cut-off protection ensures the shaker automatically halts operation if excessive load is detected. This feature prolongs equipment lifespan and enhances safety by preventing mechanical failures during use.
