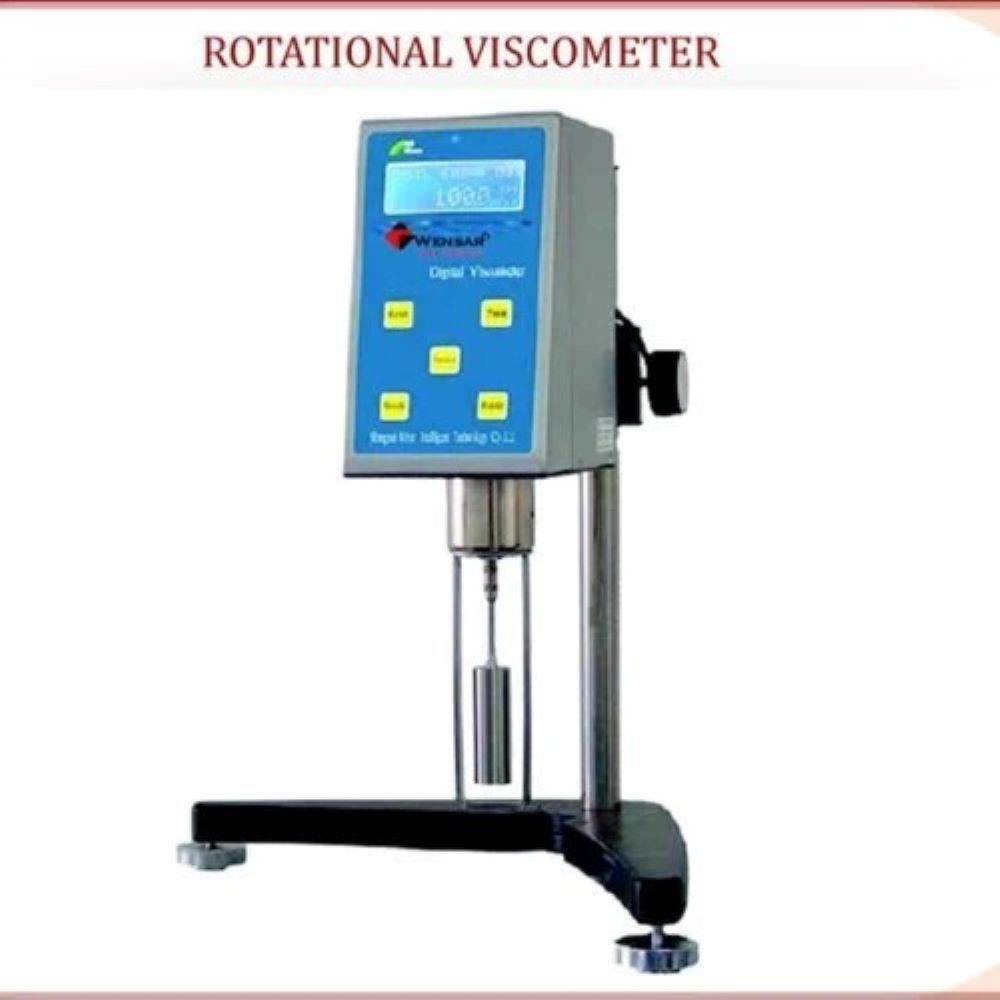

Digital Viscometer

Name: Digital Viscometer
Brand: SUBITEK
Price: 65000 INR
Availability: InStock

Price 65000 INR/ Number

Get a Price/Quote

MOQ : 1 Number

Digital Viscometer Specification

Control Type
Microprocessor Based Digital Controls

Shape
Rectangular (base), Cylindrical (measuring unit)

Speed Range
0.3 to 100 rpm

Temperature Resistance
Up to 100C

Accuracy
1.0 % of range

Power Supply
220V/110V AC, 50/60Hz

Display Type
Digital LCD Display

Features
Auto Stop, Rotor Protection, Multiple Measurement Modes

Type
Rotational Viscometer

Dimension (L*W*H)
420 x 400 x 300 mm (approx)

Equipment Type
Digital Viscometer

Equipment Materials
Stainless Steel, Plastic (for housing)

Power
220V AC, 50/60Hz

Voltage
220 V

Material
Stainless Steel and High-Grade Polymer

Application
Measurement of viscosity of liquids

Operating Temperature
5C to 35C

Ambient Humidity Range
<80% RH

Interface
RS232 Communication Port

Measuring Range (mPa.s)
10 ~ 2,000,000 mPa.s

Unit Weight
7-9 kg (approx)

Safety Features
Automatic Cut-Off in case of Error

Number of Rotors
4 (Standard)

Indication
Digital Readout for Viscosity, Speed, and Torque

Sample Volume Required
Minimum 20 ml

Calibration
Factory Calibrated (optional NABL)

Digital Viscometer About

Minimum Order Quantity	1 Piece
Viscosity Range	1100 cP
Speed Range	0.1 100 rpm
Material	Mild Steel
Usage/Application	Laboratory
Temperature Control	Without Bath
Measurement Mode	Steady Shear
Number Of Cups	1
Model Name/Number	95959
Brand	TNEI
Country of Origin	Made in India
Display Type	Digital

Rotational viscometers have become a standard in virtually all industries. They measure viscosity by sensing the torque required to rotate a spindle at constant speed while immersed in fluid. The torque is proportional to the viscous drag on the spindle; thus the sample viscosity.

Advanced Measurement and Control

Equipped with a microprocessor-based digital control system, this viscometer enables highly accurate and repeatable readings (1.0% of range). The device supports an impressive viscosity range, using four precisely engineered rotors. Its digital controls and auto stop function streamline operations whether for routine lab checks or industrial quality assurance.

Efficient and Safe Operation

The viscometer features an automatic error cut-off system that ensures user safety and protects the device during operation. Its robust design, constructed from stainless steel and high-grade polymer, not only enhances durability but also maintains sample integrity under variable temperature conditions (operating up to 100C).

Versatile Connectivity and Display

With an RS232 communication port, the viscometer seamlessly integrates into existing lab networks for convenient data transfer. The clear digital LCD display provides immediate visualization of viscosity, speed, and torque, simplifying data monitoring and logging for users during experimental runs.

FAQ's of Digital Viscometer:

Q: How is the Digital Viscometer operated and controlled?

A: The viscometer utilizes advanced microprocessor-based digital controls, allowing for precise speed adjustments (0.3 to 100 rpm) and measurement settings directly via the LCD interface. Operation is straightforward, accommodating both novice and experienced users.

Q: What sample volume is required, and what is the measuring process?

A: A minimum sample volume of 20 ml is needed. To measure, users place the sample in the test chamber, select the rotor, set parameters on the digital panel, and the viscometer automatically analyzes the viscosity, displaying results instantly.

Q: When is calibration required, and what options are available?

A: The viscometer comes factory calibrated for immediate use. For enhanced compliance, optional NABL-certified calibration can be requested to meet stringent laboratory standards.

Q: Where can this viscometer be used and by whom?

A: This equipment is suitable for research laboratories, industrial quality control, and production environments. It is supplied by a network of dealers, distributors, manufacturers, and suppliers across India, serving diverse sectors.

Q: What safety and protection features does the viscometer offer?

A: Safety is managed through features like automatic cut-off in case of operational errors, rotor protection, and auto stop to prevent overheating or mechanical issues, thereby ensuring operator and instrument safety.

Q: How does the digital interface benefit users?

A: The digital LCD display provides clear, simultaneous readings of viscosity, speed, and torque, while the RS232 port enables direct data transfer, making data management and analysis efficient and reducing the chance of manual errors.
