Vicksberg Pentrometer (Proving Ring Type)

Send Inquiry

Request To Call Back

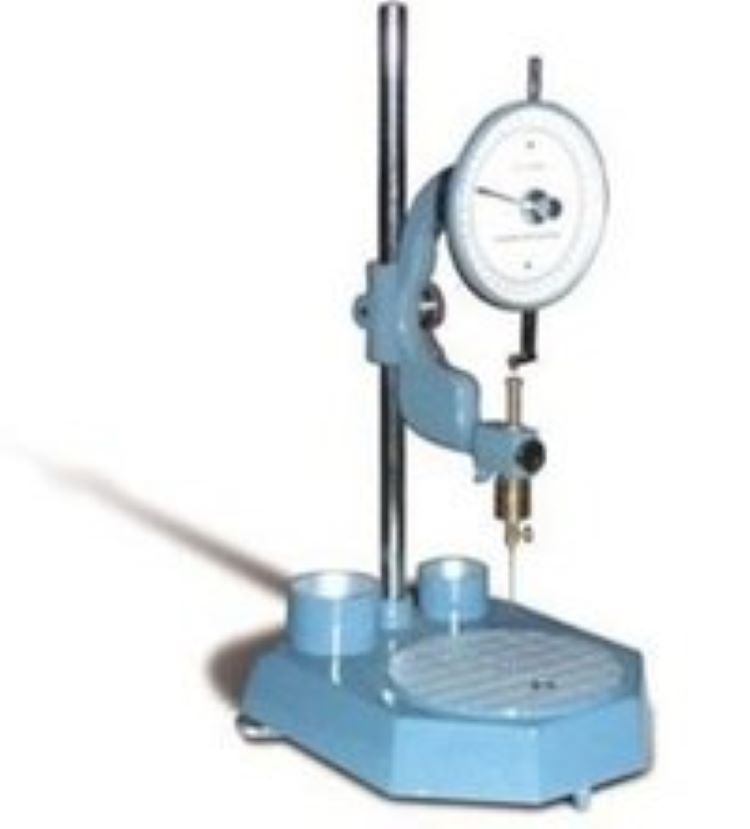

Vicksberg Pentrometer (Proving Ring Type)

Name: Vicksberg Pentrometer (Proving Ring Type)
Brand: SUBITEK
Price: 12000.0 INR
Availability: InStock

Price 12000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Vicksberg Pentrometer (Proving Ring Type) Specification

Features
Portable, Durable, Corrosion Resistant, IS Standard Compliant

Automation Grade
Manual

Test Range
0-30 kgf

Mounting Type
Bench Top

Port Size
Proving Ring Standard Mount

Response Time
Immediate, Manual Reading

Accuracy
0.5% of Reading

Display Type
Dial Gauge

Humidity
0-90% RH (Operating Environment)

Power Supply
Not Required (Manual)

Interface Type
Manual Dial

Equipment Type
Soil Testing (Pentrometer, Proving Ring Type)

Temperature
0-50C (Operating Environment)

Resolution
0.01 kgf

Measuring Range
0-30 kgf

Application
Determination of Penetration Resistance of Soil for CBR & Similar Tests

Number of Specimens
1 per Test

Specimen Size
Dia 38 mm x Height 76 mm

Max Height
Approx. 350 mm

Hardness
High Strength Metal Construction

Usage
Soil Penetration & Strength Evaluation

Capacity
30 kgf

Machine Weight
12 Kg

Test Speed
Uniform Manual Rate

Test Width
Standard Size for Soil Specimens

Test Stroke
0-50 mm

Control Mode
Manual Operation

Packaging Type
Polished Wooden Carry Case

Dial Gauge Range
0-10 mm

Proving Ring Type
Integrated with Calibration Certificate

Included Accessories
Penetration Plunger, Handle, Dial Indicator, Proving Ring

Service & Calibration
Optional Annual Service/Calibration Available

Compliance Standards
IS: 2720 (Part 16), ASTM D 1558

Material of Construction
Mild Steel & Stainless Steel Components

Finish
Powder Coated

Vicksberg Pentrometer (Proving Ring Type) Trade Information

Minimum Order Quantity
1 Piece

FOB Port
coimbatore

Payment Terms
Cash Advance (CA), Cash in Advance (CID)

Supply Ability
1 Piece Per Day

Delivery Time
1 Days

Sample Available
No

Packaging Details
cotton box

Main Export Market(s)
Asia, Africa

Main Domestic Market
Meghalaya, Manipur, Andhra Pradesh, Bihar, Chandigarh, Daman and Diu, Goa, Punjab, Assam, Madhya Pradesh, Maharashtra, Nagaland, Rajasthan, Sikkim, Tamil Nadu, Telangana, Tripura, Pondicherry, Uttar Pradesh, Uttarakhand, All India, South India, Central India, West India, North India, East India, Gujarat, Karnataka, Kerala, Lakshadweep, Mizoram, Jharkhand, Odisha, Delhi, Dadra and Nagar Haveli, Andaman and Nicobar Islands, Arunachal Pradesh, Chhattisgarh, Haryana, Himachal Pradesh, Jammu and Kashmir, West Bengal

About Vicksberg Pentrometer (Proving Ring Type)

Specification:

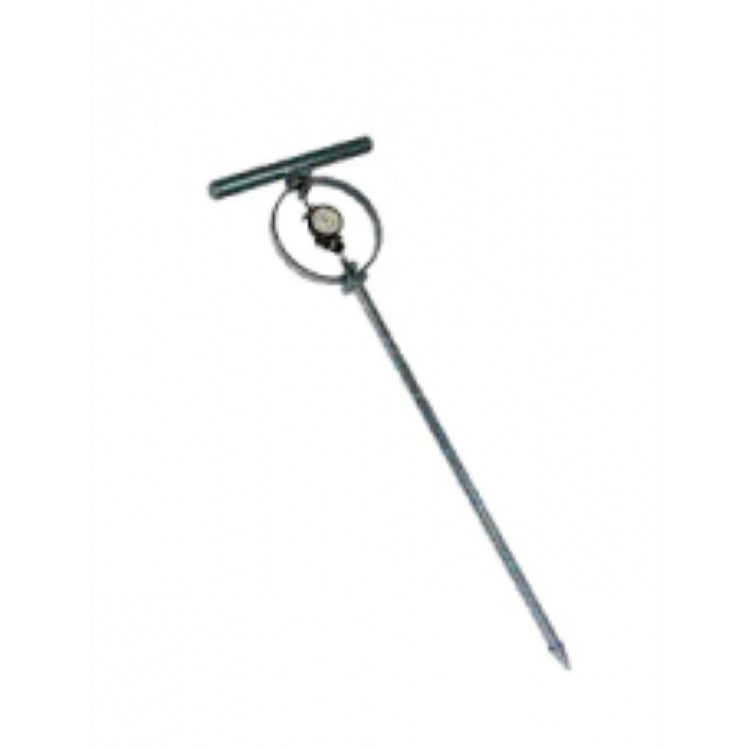

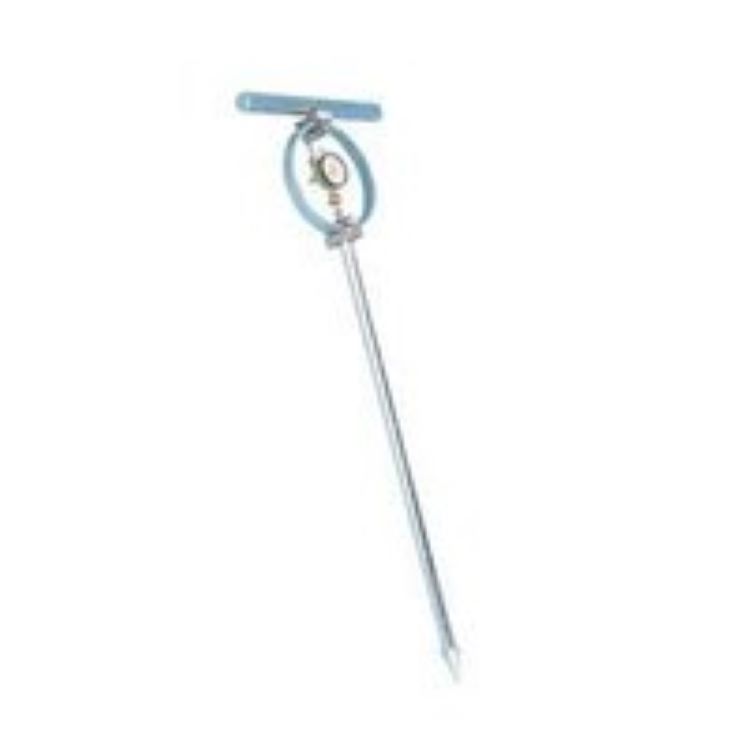

Consists of a study handle under. Which is fixed a sensitive proving ring. An extension piece is fixed to the bottom of the proving ring and carries a detachable penetration cone at its tip. Proving ring capacity 100 kg (1kn) and 0.002mm dialgauge provided indicates the penetration load applied. An optical viewer is provided to facilitate reading the dial gauge by the operator. Simplified for single person operation. A calibration chart is provided for the proving ring. Instrument is complete in a wooden carrying case.

A Vicksburg penetrometer (proving ring type) hasa proving ring with a 100 kg (1 KN) capacitythat measures the penetration load applied to adetachable cone,indicating soil resistance.Key specifications include a sensitive proving ring, an extension piece with the cone, adial gaugefor readings (often 0.002 mm resolution), a calibration chart for the ring, and a wooden carrying case for transport and storage.

Components and Operation

Sturdy Handle:Provides leverage for pushing the instrument into the soil.
Proving Ring:A sensitive, calibrated ring that deflects under load.
Extension Piece:Connects the proving ring to the penetration cone and indicates the load applied.
Detachable Cone:A standard 30-degree, right circular cone at the tip that penetrates the soil.
Dial Gauge:A sensitive gauge that indicates the penetration load in units of 0.002 mm.
Optical Viewer:Aids in reading the dial gauge accurately.
Wooden Carrying Case:For portability and storage.

Specifications

Proving Ring Capacity:Typically 100 kg or 1 KN.
Dial Gauge Resolution:0.002 mm.
Cone Details:30-degree right circular cone.
Operation:Designed for single-person operation and manual input.
Calibration:A calibration chart is provided to ensure accurate readings from the proving ring.

Purpose

The Vicksburg penetrometer measures the resistance of soil to penetration, providing a measure known as the "cone index".This helps assess soil strength and consistency.

Reliable Penetration Resistance Measurement

Engineered for accurate soil penetration resistance evaluation, the Vicksberg Pentrometer integrates a high-precision proving ring and dial gauge. The manual operation enables careful control of the test stroke and speed, ensuring consistent and repeatable soil strength data for lab and field environments.

Durable and Portable Construction

With its powder-coated mild steel and stainless steel parts, the pentrometer withstands rigorous use. The polished wooden carry case and compact design simplify transport between testing locations, making the equipment well-suited for soil labs, construction sites, and environmental studies.

Calibration and Compliance

Each unit comes with an integrated calibration certificate, confirming accuracy to 0.5% of reading. Compliance with IS: 2720 (Part 16) and ASTM D 1558 ensures reliability and acceptance for professional soil penetration and CBR tests across industry sectors.

FAQ's of Vicksberg Pentrometer (Proving Ring Type):

Q: How does the Vicksberg Pentrometer measure soil penetration resistance?

A: The pentrometer uses a manual penetration plunger and a high-accuracy proving ring, coupled with a dial gauge display. When pressed into a soil specimen, the dial gauge immediately indicates resistance force, allowing precise soil strength evaluation within a range of 0-30 kgf.

Q: What are the standard specimen size and capacity for this pentrometer?

A: The equipment accommodates a single soil specimen per test, measuring 38 mm in diameter and 76 mm in height. The instrument's maximum capacity is 30 kgf, suitable for CBR and similar soil penetration assessments.

Q: Where can the Vicksberg Pentrometer be used?

A: It is designed for use in laboratories, construction sites, and field investigations, thanks to its portable design and bench top mounting. It's a preferred instrument for soil testing professionals in India and internationally.

Q: When is calibration recommended for optimum accuracy?

A: Annual service and calibration are suggested to maintain the device's precision and compliance with IS and ASTM standards. Optional calibration services are available to ensure reliable results over the equipment's service life.

Q: What is the process for conducting a test using this instrument?

A: To perform a test, place the prepared soil specimen in the device, manually control the penetration rate using the handle, and observe the dial gauge for immediate readings. The instrument operates without electricity, relying on manual input and mechanical response.

Q: What benefits does using this pentrometer offer?

A: The pentrometer provides immediate, accurate soil strength readings, valuable for construction and geotechnical analysis. Its robust construction ensures longevity, and its compliance with recognized standards guarantees reliable results for professional applications.
