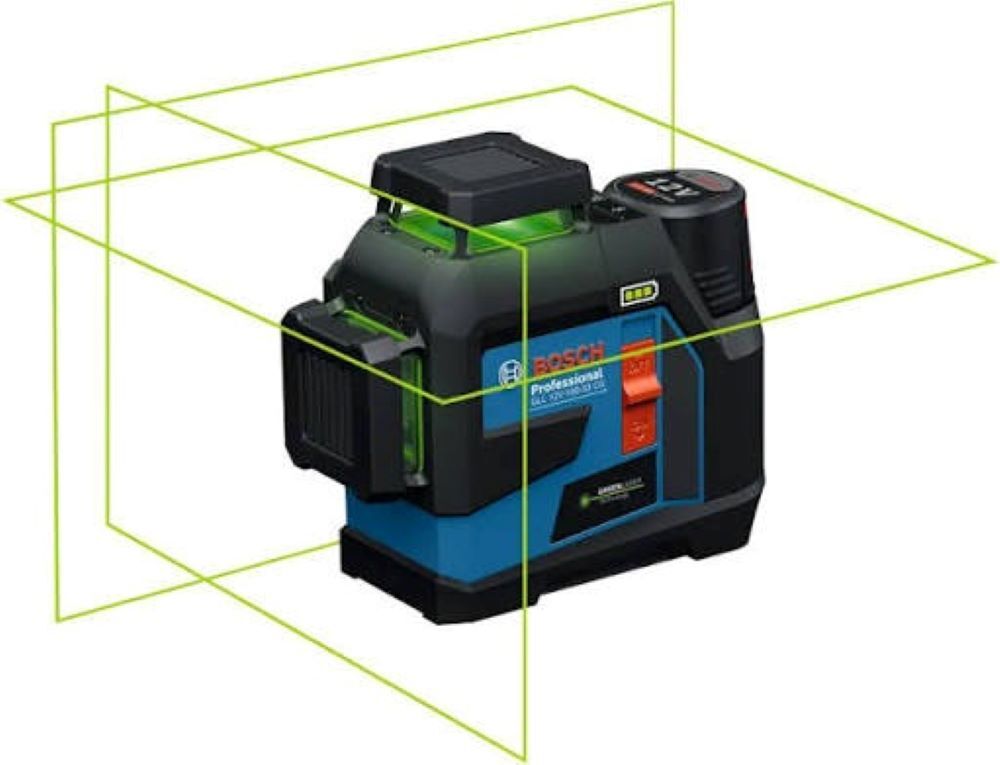

GLL 100-33 CG Professional Laser

Name: GLL 100-33 CG Professional Laser
Brand: SUBITEK
Price: 88000 INR
Availability: InStock

Price 88000 INR/ Number

Get a Price/Quote

MOQ : I Number

GLL 100-33 CG Professional Laser Specification

Accuracy
0.3 mm/m

Humidity
Up to 85% (non-condensing)

Application
Indoor and Outdoor Leveling, Tiling, Construction Layout

Measuring Range
Up to 30 m (without receiver), 120 m (with receiver)

Temperature
-10C to +40C (Operating)

Mounting Type
Tripod or Magnetic Base

Operating Voltage
DC 6V (4 x AA Batteries)

Display Type
No display; Visual Laser Lines

Equipment Type
Professional Laser Level

Interface Type
1/4 and 5/8 Tripod Thread

Test Range
Up to 30 m

Power Supply
4 x 1.5 V LR6 (AA)

Response Time
Immediate (laser projection)

Features
Green Laser Lines, 3 x 360 Lines, Self-leveling, Compact Design, Robust Housing

Automation Grade
Semi-automatic (Self-leveling)

Usage
Surveying, Alignment, Leveling

Machine Weight
0.82 kg

Control Mode
Manual

Dimensions
153 mm x 75 mm x 119 mm

Laser Diode
500-540 nm, < 10 mW, Class 2

Leveling Type
Self-leveling up to 4

Working Time
Up to 4 hours (all lines on)

Tripod Thread
Compatible with 1/4" and 5/8" tripod mounts

Laser Class
Class 2 (IEC 60825-1: 2014)

Protection Class
IP54 (dust and splash proof)

Line Projection
Three 360 Green Laser Lines (1 horizontal, 2 vertical)

Storage Temperature
-20C to +70C

GLL 100-33 CG Professional Laser About

Additional data

Tripod thread

14 58

Working range value

30 m

Battery voltage

120 V

Laser diode

500 540 nm 10 mW

Operating temperature

10 40 C

Storage temperature

20 70 C

Laser class

Working range with receiver

100 m radius

Accuracy

03 mmm

Selflevelling range

Levelling time

4 s

Dust and splash protection

IP65

Power supply

4 x 15 V LR6 AA 12 V LiIon battery

Operating time max

6 h LiIon and 4 h 4 x AA in 3line mode

Weight approx

096 kg

Colour of laser line

Green

Projection

3 x 360 line

Compatible laser receivers

Superior Visibility and Accuracy

Utilizing advanced green laser technology, the GLL 100-33 CG ensures outstanding line clarity with an accuracy of 0.3 mm per meter. Its three 360 laser lines (one horizontal, two vertical) provide full coverage, supporting demanding applications such as alignment, leveling, and surveying.

Built for Professional Demands

Engineered for robustness, this laser level features an IP54 protection class-resilient against dust and water splashes. Its compact, durable design allows for reliable operation across construction and renovation environments both indoors and outdoors.

Flexible and User-Friendly Operation

Self-leveling capability (up to 4) ensures quick, error-free setup, while compatibility with both 1/4" and 5/8" tripod mounts adds versatility. Powered by standard AA batteries, the tool guarantees portability and up to 4 hours of continuous use for uninterrupted work on site.

FAQ's of GLL 100-33 CG Professional Laser:

Q: How does the self-leveling mechanism of the GLL 100-33 CG Professional Laser work?

A: The self-leveling mechanism automatically adjusts the laser lines to horizontal or vertical within a 4 range. This ensures accurate lines without manual calibration, enabling fast and error-free setup, especially useful in complex or uneven environments.

Q: What environments can the GLL 100-33 CG Laser Level be used in?

A: Thanks to its IP54 protection class and wide operational temperature range (-10C to +40C), the laser level is suitable for both indoor and outdoor environments, including construction sites, tiling projects, and general alignment tasks.

Q: When should I change the batteries, and what type does the device require?

A: The device runs on four 1.5V LR6 (AA) batteries. You should replace them when the working time decreases or the laser lines become dim; typically, all lines can run for up to 4 hours on a fresh set of batteries.

Q: Where can I mount the GLL 100-33 CG for best performance?

A: The GLL 100-33 CG can be mounted on either a 1/4" or 5/8" tripod or magnetically on suitable surfaces. Using a stable tripod ensures optimal accuracy and projection range during surveying, alignment, and leveling applications.

Q: What is the process for using the GLL 100-33 CG in outdoor layout and surveying?

A: For outdoor use, position the laser on a tripod and activate all lines. If extended range is needed, use a compatible receiver to increase the measuring distance up to 120 meters. The green lines remain highly visible in various lighting conditions.

Q: How does the green laser benefit my workflow compared to red lasers?

A: Green lasers are up to four times more visible than red lasers under the same conditions, which leads to clearer lines over greater distances and better visibility in bright environments, enhancing productivity and reducing errors on the job.

Q: What applications is the GLL 100-33 CG suitable for in India?

A: This professional laser level is ideal for a range of applications, including construction layout, tiling, alignment, indoor leveling, and surveying, making it suitable for use by dealers, contractors, fabricators, and manufacturers across India.
