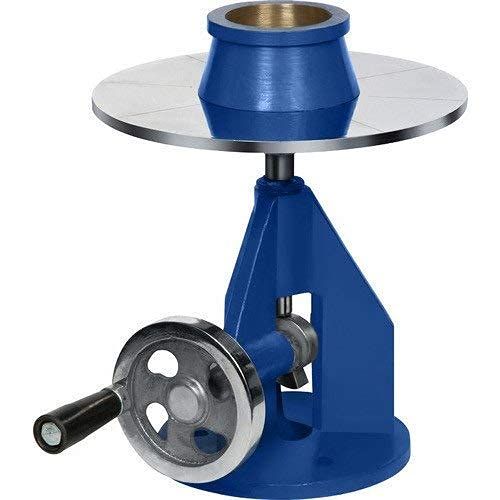

Concrete Flow Table Test Set

Name: Concrete Flow Table Test Set
Brand: SUBITEK
Price: 6500.0 INR
Availability: InStock

Price 6500.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Concrete Flow Table Test Set Specification

Hardness
Platform and cone made of mild steel, hardness compliant to IS standards

Interface Type
Manual (no electronic interface)

Number of Specimens
Single specimen per test

Max Height
Approx. 700 mm (instrument height)

Accuracy
2 mm

Test Range
Standard slump to flow range (as per IS 1199:1959)

Specimen Size
100 mm high, 70 mm top dia., 200 mm bottom dia. (mould size)

Response Time
Instantaneous (on drop)

Features
Rugged construction, corrosion-resistant finish, easy operation

Mounting Type
On level platform/tabletop use

Equipment Type
Concrete Flow Table Test Set

Frequency
Not applicable (manual operation)

Display Type
Graduated scale (manual reading)

Measuring Range
100 mm to 700 mm diameter (flow)

Temperature
10C to 40C operating environment

Humidity
Up to 90% RH (non-condensing)

Application
Determination of the flow of concrete for quality control in construction

Resolution
1 mm

Power Supply
Not required (Manual device)

Automation Grade
Manual

Usage
Laboratory and field test for concrete workability

Capacity
One sample per operation

Machine Weight
Approx. 50 kg

Test Speed
Manual (Operated by hand)

Test Width
700 mm (Flow Table diameter)

Test Stroke
40 mm drop, 15 drops per test

Control Mode
Hand Lever Operated

Packing
Secured in shock-resistant packing for transport

Platform Material
Cast iron or mild steel, machined and finished

Cone Material
Mild steel (IS: 7320/1974)

Operating Standard
IS 1199, BS 1881, ASTM C230/C230M

Accessories
Standard flow mould and tamping rod included

Top Surface Finish
Smooth, corrosion-resistant

Flow Table Top Diameter
700 mm

Leg Type
Fitted with sturdy legs and handle for ease of operation

Concrete Flow Table Test Set Trade Information

Minimum Order Quantity
1 Piece

FOB Port
coimbatore

Payment Terms
Cash Advance (CA), Cash in Advance (CID)

Supply Ability
1 Piece Per Day

Delivery Time
2 Days

Sample Available
No

Packaging Details
cotton box

Main Export Market(s)
Asia, Africa

Main Domestic Market
All India, South India, Central India, West India, Odisha, Punjab, Assam, Delhi, Dadra and Nagar Haveli, Andaman and Nicobar Islands, Arunachal Pradesh, Chhattisgarh, Haryana, North India, Chandigarh, Daman and Diu, Goa, Jharkhand, East India, Gujarat, Karnataka, Kerala, Lakshadweep, Mizoram, Meghalaya, Manipur, Andhra Pradesh, Bihar, Himachal Pradesh, Jammu and Kashmir, Madhya Pradesh, Maharashtra, Nagaland, Rajasthan, Sikkim, Tamil Nadu, Telangana, Tripura, Pondicherry, Uttar Pradesh, Uttarakhand, West Bengal

About Concrete Flow Table Test Set

Specification:

The test set is used for concrete mixes of high workability and determines flow index as an arithmetic mean of the diameter of the specimen after working on a flow table. The apparatus consists of a double steel table, an upper table measuring 700 x 700 mm and hinged at one side to the lower table. The top table is inscribed and all parts are protected against corrosion. The stainless steel cone has a 130 2 mm top diameter, 200 2 mm base diameter and 200 2 mm height and 1.5 mm thickness. Dimensions: 700 x 850 x 300 mm, Weight (approx.) 40 kg
ZI 2010 : Concrete flow table test set
ZI 2010-A : Flow cone for
ZI 2010-B : Wooden tamper 40 x 40 x 335 mm

Precision Measurement for Concrete Quality

This Flow Table Test Set offers standardized testing compliant with IS, BS, and ASTM regulations, ensuring precision and repeatability in the assessment of concrete flow. The smooth, corrosion-resistant platform minimizes errors, while its robust construction guarantees longevity in demanding environments.

Easy Operation and Reliable Output

With a manual hand-lever mechanism and accessories like the tamping rod, users can perform the concrete flow test quickly and accurately. The graduated scale provides direct measurement of flow diameter, allowing technicians to monitor workability without the need for calibration or electronic interfaces.

FAQ's of Concrete Flow Table Test Set:

Q: How do I perform a concrete flow test using this Flow Table Test Set?

A: Place the concrete specimen in the provided standard flow mould, located at the center of the smooth platform. After removing the mould, use the hand lever to drop the platform 15 times at a 40 mm stroke. Measure the flow diameter using the graduated scale.

Q: What standards does the Concrete Flow Table Test Set comply with?

A: This equipment is manufactured according to IS 1199, BS 1881, and ASTM C230/C230M standards, ensuring reliability and accuracy in concrete testing for both laboratory and field applications.

Q: When should I use the concrete flow table test?

A: Use the flow table test during concrete mix design, quality control, and in-situ concrete workability verification. It is particularly useful before pouring concrete to assess its consistency and spreadability.

Q: Where can this Flow Table Test Set be used?

A: The test set is suitable for use in construction site laboratories, research facilities, concrete production plants, and educational institutions, providing critical data for professional quality control.

Q: What is included with the Concrete Flow Table Test Set?

A: The set includes a machined platform, sturdy legs, handle for operation, standard flow mould, and tamping rod, all packed securely in shock-resistant packing for safe transport.

Q: How is the result of the concrete flow test measured and displayed?

A: Results are measured using the graduated scale on the table, reading the flow diameter from 100 mm up to 700 mm. The accuracy is within 2 mm, with a resolution of 1 mm.

Q: What are the primary benefits of this manually operated concrete flow test equipment?

A: Key advantages include rugged construction, corrosion resistance, fast instantaneous response, and no requirement for electrical power, making it highly reliable and efficient for frequent use by professionals.
