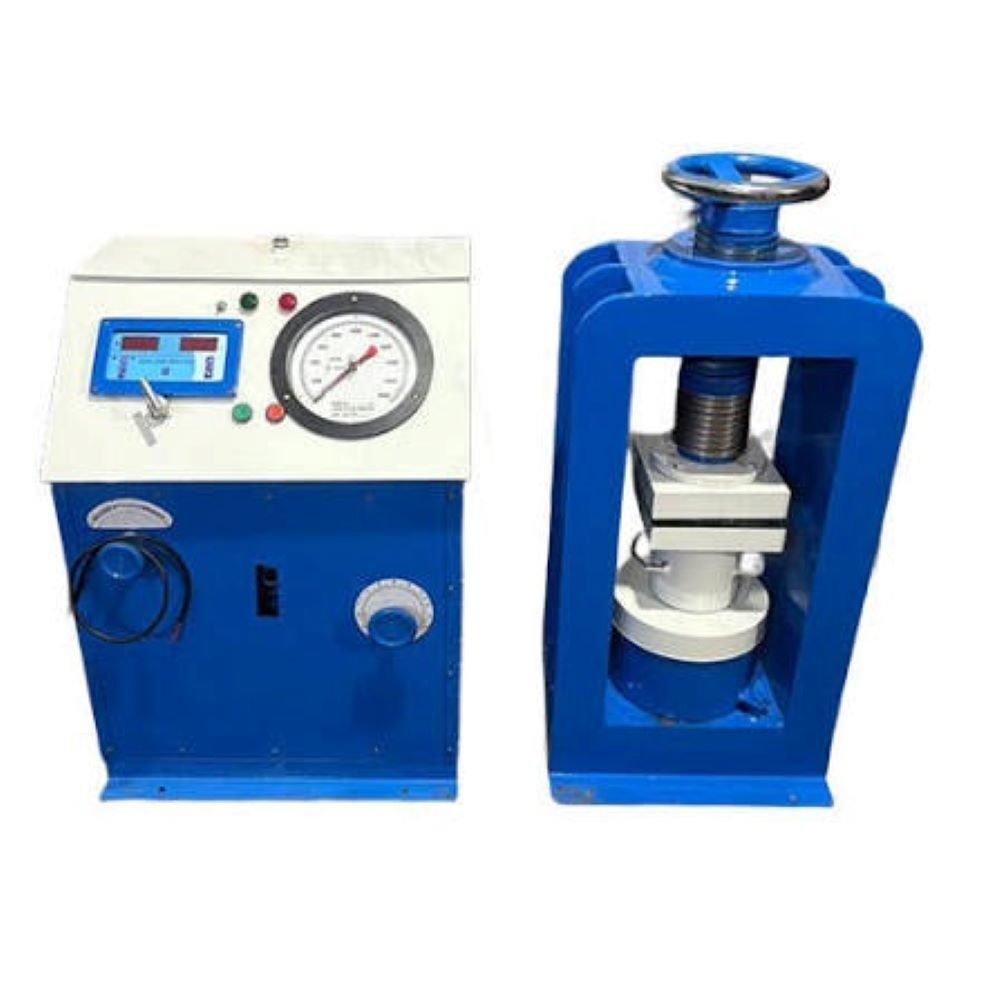

COMPRESSOR TESTING MACHINE 2000 KN DIGITAL

Send Inquiry

Request To Call Back

COMPRESSOR TESTING MACHINE 2000 KN DIGITAL

Name: COMPRESSOR TESTING MACHINE 2000 KN DIGITAL
Brand: SUBITEK
Price: 115000 INR
Availability: InStock

Price 115000 INR/ Number

Get a Price/Quote

MOQ : 1 Number

COMPRESSOR TESTING MACHINE 2000 KN DIGITAL Specification

Application
Testing compressive strength of construction materials

Max Flow Rate
---

Max Pressure
2000 kN

Motor Power
2 HP

Surface
Powder-coated

Rated Power
About 1.5 kW

MAX TIP SIZE
---

Lifting Speed
Variable (Hydraulic)

Lifting Height
Adjustable as per specimen size

Product Type
Compressor Testing Machine

General Use
Strength testing of concrete, bricks, cement

Material
Mild Steel (MS) Structure

Type
Digital Compression Testing Machine

Capacity
2000 kN / 2000,000 N / 200 Tonne

Weight (kg)
Approx. 250-300 kg

Computerized
No (Digital Display)

Automatic
Semi-Automatic

Control System
Microprocessor-based digital control

Cooling System
Air Cooled

Method
Hydraulic Loading

Voltage
220 V / 50 Hz

Dimension (L*W*H)
Approx. 800 x 600 x 1200 mm

Feature
Digital display, Overload protection, Safety valve

Color
Blue & White

Accuracy Class
Class 1 as per IS:516

Frame Construction
High Strength Steel

Safety Feature
Overload Protection

Specimen Size.
150 mm x 150 mm x 150 mm Cube / 150 mm diameter x 300 mm Cylinder

Pressure Resolution
1 KN

Display Type
Digital Readout with Peak Hold Facility

Calibration
Calibrated at 2000 KN Capacity

Pump Type
Hydraulic Automatic Pump

COMPRESSOR TESTING MACHINE 2000 KN DIGITAL About

Phase	Single phase
Loading Type	Motorized
Max Cube Size	150 mm
Accuracy Class	Class 1
Power Supply	230 V 50 Hz
Automation Grade	Manual
Frame Type	Channel type
Cylinders Dia	205mm
Gauges Dia	20cm
Body Material	Metal
Capacity	200 Tonne
Display Type	Digital

Semi-Automatic (Motorized) range of 2000 kN and 3000 kN capacity compression testing machines have been designed for reliable and consistent testing of a wide range of specimens. These compression testers are manufactured as a result of continuous research studies to upgrade the machines with the latest technologies to conform with the latest standards EN 12390-3, 12390-4, BS 1881 in terms of its technical properties taking into account the client requirements. These machines also meet the requirements of CE norms with respect to the health and safety of the operator. And their user-friendly design enable an inexperienced operator to perform the test.

Robust and Reliable Structure

Built from durable mild steel with a heavy-duty welded frame, this testing machine is ideal for repetitive laboratory or onsite use. The powder-coated blue and white surface provides resistance to wear and corrosion, ensuring longevity even in challenging environments.

Advanced Digital Control and Safety

The microprocessor-based system ensures precise control, while the digital load indicator displays real-time load in kN or tons. Features such as overload protection, safety interlocks, and a safety valve safeguard both the operator and the machine during the testing process.

Versatile Application and Adjustable Mechanics

Designed for compressive strength testing of concrete, cement, and bricks, the adjustable lifting height and variable hydraulic speed cater to varied specimen sizes and testing requirements. The manual valve operation with semi-automatic loading streamlines the workflow without compromising accuracy.

FAQ's of COMPRESSOR TESTING MACHINE 2000 KN DIGITAL:

Q: How do I operate the COMPRESSOR TESTING MACHINE 2000 KN DIGITAL for compressive strength testing?

A: To use the machine, place the specimen between the platens, set the adjustable lifting height, and operate the manual valve to initiate hydraulic loading. The digital load indicator provides real-time readings, and the peak hold function captures the maximum load value achieved during the test.

Q: What materials can be tested with this digital compression testing machine?

A: This machine is primarily designed for testing the compressive strength of construction materials such as concrete, bricks, and cement. It is suitable for both laboratory and field quality control applications.

Q: When is the digital load indicator's peak hold feature most beneficial?

A: The peak hold feature is especially valuable for capturing the exact maximum load applied to a specimen during a test, ensuring that results are not missed or misread during brief load fluctuations.

Q: Where is this machine commonly used in India?

A: It is widely used in construction material testing laboratories, quality control departments, construction sites, research institutions, and educational facilities across India by dealers, manufacturers, suppliers, and contractors.

Q: What is the process for adjusting the platen height to fit different specimen sizes?

A: The lifting height is adjustable to accommodate various specimen sizes. Adjust the hydraulic mechanism as per the size of your test material before commencing the test, ensuring secure placement and even load distribution.

Q: What benefits does the machine offer over fully manual models?

A: With digital display, peak hold, and semi-automatic loading, this model reduces manual errors and improves accuracy. Enhanced safety features like overload protection and interlocks further protect users and equipment during operation.
