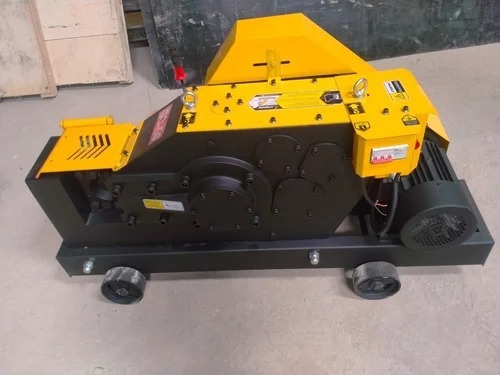

Send InquiryBar Cutting Machine 42mm
Price 115000 INR/ Unit
MOQ : 1 Unit
Bar Cutting Machine 42mm Specification
- Rated Power
- 5 - 7.5 HP
- Motor Power
- 5 - 7.5 HP (approx)
- Application
- Construction, building, infrastructure development
- Surface
- Painted
- Product Type
- Bar Cutting Machine
- General Use
- For cutting steel bars/rebars at construction sites
- Material
- Heavy-duty steel
- Type
- Mechanical Type
- Capacity
- Up to 42mm diameter bar cutting
- Weight (kg)
- 330 - 395 kg (approx)
- Computerized
- No
- Automatic
- Semi-Automatic
- Control System
- Manual lever
- Cooling System
- Air cooled
- Method
- Mechanical cutting
- Voltage
- 415V, 50Hz (Three Phase)
- Dimension (L*W*H)
- 1350 x 510 x 900 mm (approx)
- Feature
- High efficiency, portable, rugged design
- Color
- Yellow and Black
- Safety Feature
- Emergency Stop Switch
- Noise Level
- Low
- Blade Size
- 95 x 95 x 26 mm
- Gear Type
- Enclosed heavy-duty gears
- Cutting Speed
- 28-32 cuts per minute (for 16 mm bar)
- Motor RPM
- 2800 RPM
- No. of Wheels
- 4 (for easy mobility)
- Input Frequency
- 50 Hz
- Gear Oil Capacity
- 8-10 liters
- Thermal Protection
- Yes
- Mobility
- Portable with wheels
- Cutting Range
- 6 mm - 42 mm (TMT/round bars)
About Bar Cutting Machine 42mm
| Cutting Disc Size | 8 inch |
| Motor Power | 5-7.5 HP |
| Cutting Stroke | 30-36 cuts/min |
| Brand | Subitek |
| Operation Mode | Electric |
| Phase Type | Three Phase |
| Model Name/Number | ST |
| Capacity | 32 |
| Body Material | Mild Steel |
| Country Of Origin | Made in India |
| Max Bar Diameter | 42 mm |
| Bar Material | TMT Bar |
| Usage/Application | BAR CUTTING |
