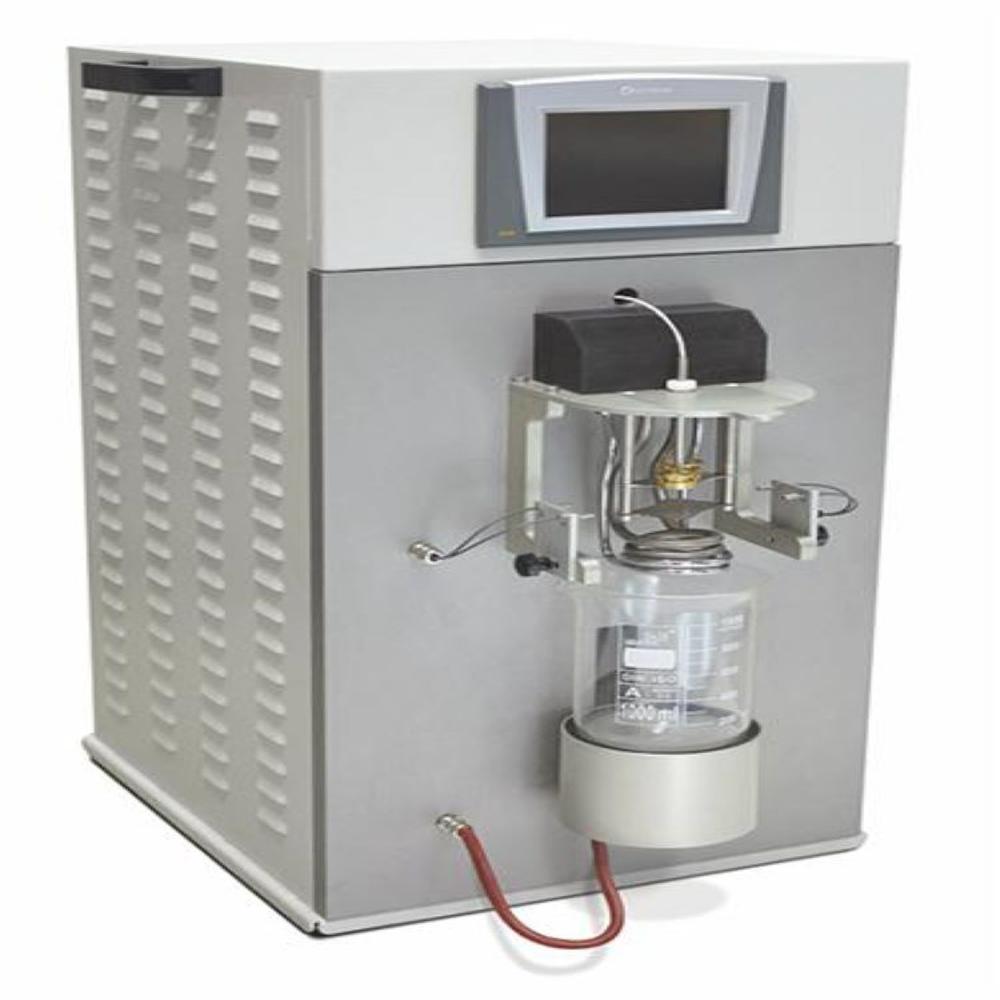

Automatic Ring and Ball Apparatus

Name: Automatic Ring and Ball Apparatus
Brand: SUBITEK
Price: 60000.0 INR
Availability: InStock

Price 60000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Automatic Ring and Ball Apparatus Specification

Accuracy
0.5C

Measuring Range
30C110C

Port Size
Standard outlet for heating liquid

Display Type
Digital LCD

Max Height
Approx. 300 mm

Test Range
Suitable for softening point 30C to 110C

Features
Automatic stirring, digital timer, programmable temperature ramp, safety protection

Automation Grade
Automatic

Humidity
Up to 95% RH, non-condensing

Application
Determination of softening point of bituminous materials

Specimen Size
Ring ID: 17 mm, Height: 6 mm (as per standard)

Temperature
5C to 110C (thermostatically controlled)

Interface Type
Touch keypad & display

Power Supply
230 V AC 10%, 50 Hz, single phase

Equipment Type
Automatic Ring and Ball Apparatus

Operating Voltage
230V AC

Resolution
0.1C

Gas Pressure
Ambient, not applicable

Number of Specimens
2 (simultaneous measurement)

Mounting Type
Bench Top

Frequency
50 Hz

Response Time
Immediate (real-time temperature feedback)

Usage
Laboratory Testing

Capacity
2 rings per test

Machine Weight
Approx. 8 kg

Test Speed
Programmable/Automatic

Test Width
Standard per ASTM D36/IS 1205

Test Stroke
Standard, as per bitumen test requirements

Control Mode
Microprocessor Based

Bath Material
Corrosion resistant stainless steel

Data Logging
USB Output/Optional PC Connectivity

Test Standards
ASTM D36, AASHTO T53, IS 1205, EN 1427

Sample Beaker Volume
600 ml

Protection
Over-temperature safety cut-off

Timer Range
09999 sec

Calibration
Factory calibrated, in-built calibration option

Compliance
CE Certified

Alarm
Buzzer on test completion

Stirring Type
Microprocessor-controlled Magnetic Stirrer

Ambient Temperature Range
10C50C

Heating Method
Electric Heating with PID Temperature Controller

Automatic Ring and Ball Apparatus Trade Information

Minimum Order Quantity
1 Piece

FOB Port
coimbatore

Payment Terms
Cash Advance (CA), Cash in Advance (CID)

Supply Ability
1 Piece Per Day

Delivery Time
1 Days

Sample Available
No

Packaging Details
cotton box

Main Export Market(s)
Asia, Africa

Main Domestic Market
All India, South India, Central India, West India, North India, East India, Gujarat, Odisha, Punjab, Assam, Delhi, Sikkim, Karnataka, Kerala, Lakshadweep, Mizoram, Meghalaya, Manipur, Andhra Pradesh, Bihar, Chandigarh, Daman and Diu, Goa, Jharkhand, Dadra and Nagar Haveli, Andaman and Nicobar Islands, Arunachal Pradesh, Chhattisgarh, Haryana, Himachal Pradesh, Jammu and Kashmir, Madhya Pradesh, Maharashtra, Nagaland, Rajasthan, Pondicherry, Uttar Pradesh, Uttarakhand, West Bengal, Tamil Nadu, Telangana, Tripura

About Automatic Ring and Ball Apparatus

Specification:

The Automatic Ring and Ball Apparatus is an innovative microprocessor controlled automatic tester which is used to determine the softening point of bituminous materials using water or glycerol as the heating fluid.
Th softening point determines a disk of the sample held within a horizontal ring is forced downward a distance of 25.4 mm under the mass of a steel ball as the sample is heated at a prescribed rate in a water or glycerine bath.
The softening point is taken by two suitably positioned light barriers and the temperature is measured by a PT100 sensor. A uniform temperature distribution in the vessel is maintained by a magnetic stirrer, equipped with an adjustable speed control system and the temperature gradient is strictly maintained during the test by the electronic system conforming to the relevant standards.
A software permits to select the test method and the test parameters, run the test automatically, store, retrieve and print data, diagnose and calibrate the instrument. Additional cooling system, permits to quickly cool down the sample allowing to handle the glassware and to perform number of tests during a day by reducing the dead times between consequent analysis.
The apparatus consists of a heater, cooling system, electric lifting system, and magnetic stirrer with speed control, temperature probe, glass beaker, ring and ball support, brass ring with steel ball and ball centering guides (2 pcs. each), light barrier system, microprocessor system and large graphic display with touch screen, RS 232 C port for PC or printer.

Dimensions: 530x300x280 mm
Weight (approx.): 16 kg
Power: 750 W

Advanced Accuracy and Control

Equipped with a highly sensitive PID temperature controller and a real-time digital LCD display, this apparatus achieves 0.5C accuracy with 0.1C resolution. Microprocessor-controlled stirring and programmable heating ramps guarantee uniform bath temperature during every test, aligning perfectly with standard test protocols.

User-Friendly Automation

Designed for efficiency, the apparatus features automatic operation with a digital timer (0-9999 sec), touch keypad controls, immediate response time, and in-built calibration options. Audible alarms and over-temperature safety cut-off further simplify operation while enhancing user safety.

Comprehensive Compliance and Connectivity

This apparatus meets global standards (ASTM D36, IS 1205, EN 1427, AASHTO T53) and is CE certified. Data logging options include USB output and optional PC connectivity, making documentation and analysis seamless for dealers, suppliers, labs, and manufacturers.

FAQ's of Automatic Ring and Ball Apparatus:

Q: How does the Automatic Ring and Ball Apparatus determine the softening point of bituminous materials?

A: The apparatus heats two ring samples immersed in a corrosion-resistant stainless steel bath. As temperature rises, a microprocessor-controlled magnetic stirrer ensures uniform heating. The softening point is identified when the sample deforms and drops at the specified distance, closely monitored by a PID controller for precise temperature management.

Q: What benefits does the PID temperature controller with digital LCD display offer to users?

A: The PID controller maintains stable and accurate bath temperatures, while the digital LCD shows real-time readings with 0.1C resolution. This setup ensures test accuracy, repeatability, and easy monitoring throughout the softening point determination process.

Q: When is calibration required, and how can it be performed on this apparatus?

A: Calibration is recommended periodically or after moving the equipment. It comes factory-calibrated and also features an in-built calibration option, enabling users to verify and adjust temperature accuracy on-site for consistently reliable test results.

Q: Where can this apparatus be used and what applications does it serve?

A: Ideal for laboratory testing, the apparatus is commonly used in construction, quality control, research labs, and bituminous material production facilities throughout India. It accurately determines the softening point of asphalts, bitumen, and road tar, vital for ensuring construction material quality.

Q: What is the process for data logging and connectivity?

A: Test results and parameters can be logged via the built-in USB port or through optional PC connectivity. This feature streamlines data storage, retrieval, and analysis, supporting efficient record-keeping and compliance with laboratory standards.

Q: How does the over-temperature protection and safety alarm work?

A: The apparatus is equipped with an over-temperature safety cut-off to protect samples and internal components. Additionally, an audible buzzer sounds when the test is complete, ensuring user awareness and safeguarding the test process.
