Vee Bee Consistometer Apparatus

Vee Bee Consistometer Apparatus About

Product Details:

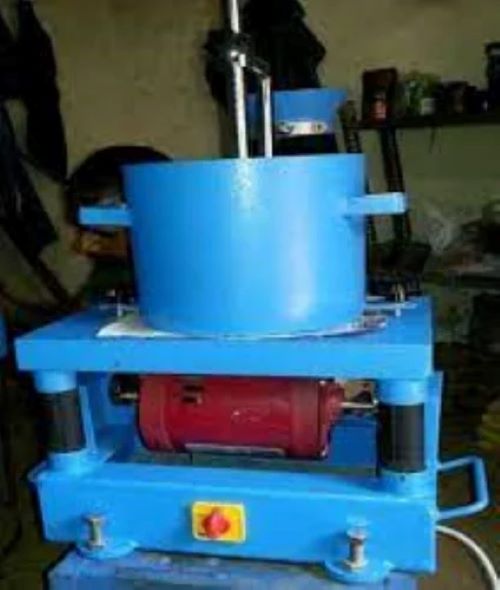

• Specifications : The equipment consists of : A Vibrating Table size 380mm long and 260mm wide, resting upon elastic support at a height of about 305mm above the floor, complete with start/stop switch, cord and plug. A holder is fixed to the base into which a swivel arm is telescoped with funnel and guide sleeve. The swivel arm is also detachable from the Vibrating Table. A graduated rod is fixed on a swivel arm and at its end a plastic disc is screwed. The division of scale on the rod record the slump of the concrete in millimeters, supplied complete with a sheet metal container with lifting handles which can easily be fixed to the Vibrating Table. A slump cone open at both ends with lifting handles and a Tamping rod of size 16mm dia and 600mm long, rounded at one end.
