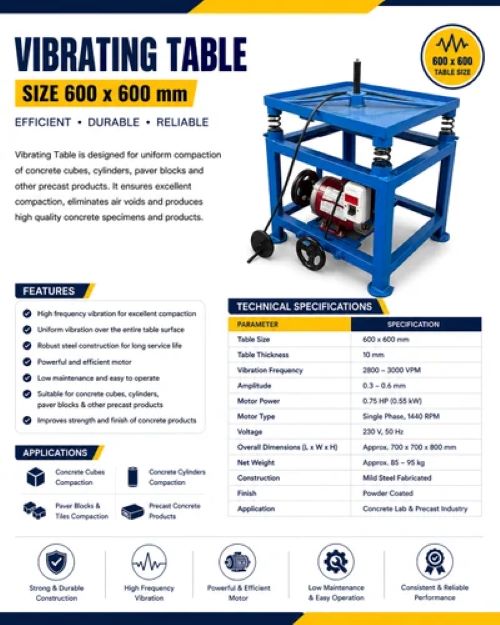

Concrete Testing Vibrating Table

Concrete Testing Vibrating Table About

Product Details:

• Specifications : It is designed to carry a load of 140 kg. The apparatus consists of a motor fitted with a variable pitch pulley housed in a cabinet. The vibrations are imparted by means of off-balance masses rotating on a shaft of a vibrator clamped to the underside of the table top. The table top is 50cm x 50cm. and has stops along its edges to prevent moulds from walking off the table during vibration. A cross arm adjustable on a vertical rod at the center of the table is provided to hold the moulds while operating the table. The variable pitch pulley arrangement permits the frequency to be varied steplessly between a maximum of 3600 vibrations down to 2600 vibrationsper minute. A speed regulation handle is provided for increasing or decreasing the frequency. A switch is provided for starting the motor, suitable for operation on 440 volts, 3 phase, 50 cycles, A.C.supply.

  Note:Vibrating Tables of table top size 75cm x 75cm as well as 100cm x 100cm are also available.
