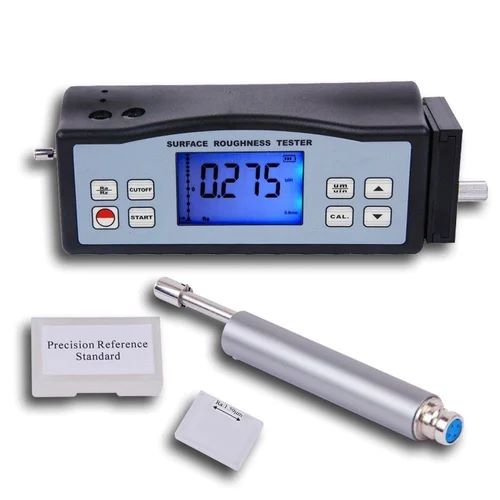

Surface Roughness Tester

Price 60000.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

Surface Roughness Tester About

Product Details:

Parameter range	Ra 0.05 10 um
Pickup type	Transverse
Material	Stainless Steel
Display type	LCD
Automation Grade	Semi-Automatic
Measuring Principle	RA, RZ
Brand	Metrix
Shelf Life	12 Months
Measuring units	um uin
Power Supply	Rechargeable
Mount type	Handheld
Color	Yellow
Voltage	230V

Surface Roughness Tester :

Technical Specification

Model	TIME3100
Roughness parameter	Ra, Rz
Tracing length	6mm
Tracing speed	1.0mm/sec
Cut-off lengths	0.25mm/0.8mm/2.5mm
Evaluation length	1.25mm/4.0mm/5.0mm
Measuring range	Ra: 0.05-10.0 Rz: 0.1-50
Accuracy	15%
Repeatability	<12%
Filter	RC analogue
Pick-up	Piezoelectric
Radius and angle of the stylus point	Diamond, Radius : 102.5 Angle: 90(+5or -10)
Operating temperature	0-40
Relative humidity	<80%
Storing temperature	-25 -60
Vertilation	Grade 3
Power supply	3.6V/2NiMh-batteries
Backlight	No
Charger	DC 9V, 8 - 12 hours (recharging time)
Dimensions (LWH)	1257326mm
Weight	200g

Tag: Surface Roughness Tester manufacture in Coimbatore,Salem, Erode, Dharmapuri Surface Roughness Tester Dealer in Coimbatore,Salem, Erode, Dharmapuri, Surface Roughness Tester Distributor in Coimbatore,Salem, Erode, Dharmapuri
