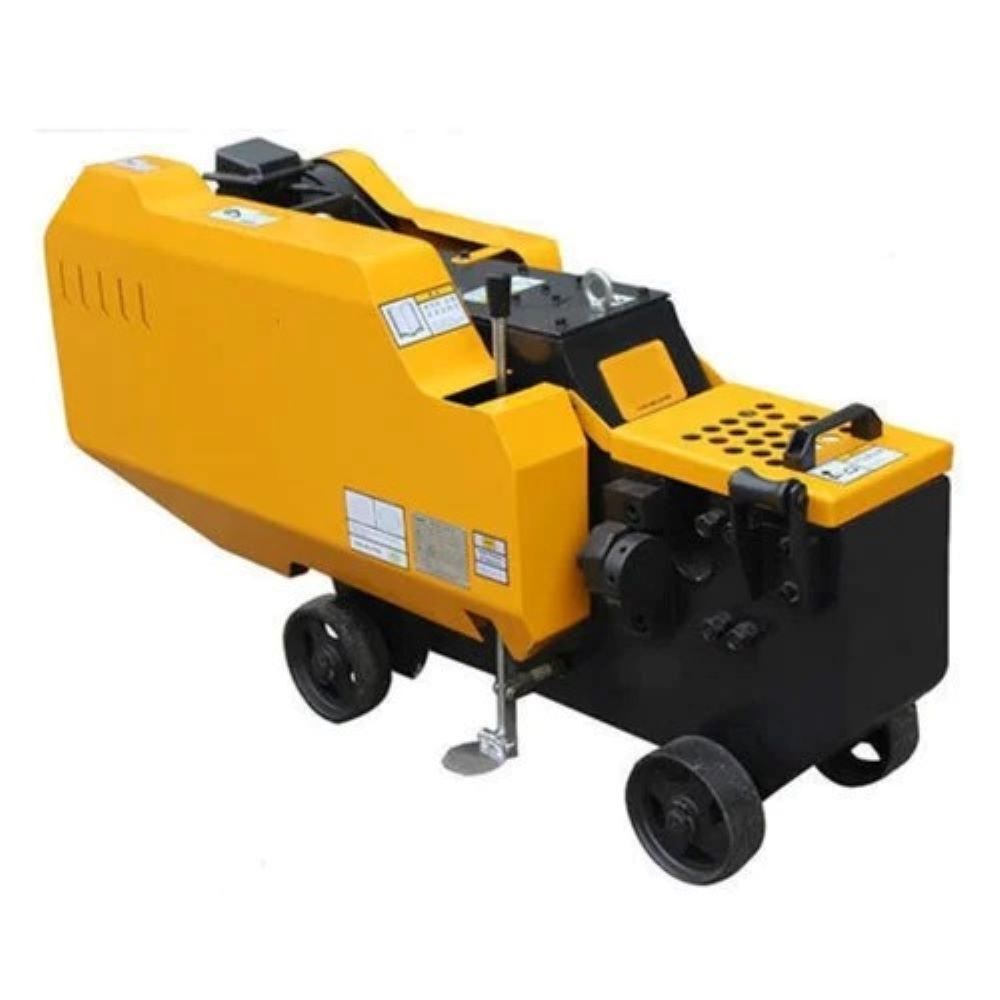

Steel Bar Cutting Machine 32mm

Name: Steel Bar Cutting Machine 32mm
Brand: SUBITEK
Price: 95000 INR
Availability: InStock

Price 95000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Steel Bar Cutting Machine 32mm Specification

Application
Bar Cutting for Construction, Building Sites

Motor Power
3 kW / 4 HP

Rated Power
3 kW

Surface
Powder Coated

Product Type
Steel Bar Cutting Machine

General Use
Cutting steel bars, construction work

Material
Mild Steel Body

Type
Portable Mechanical Bar Cutter

Capacity
32 mm (Max Bar Diameter)

Weight (kg)
380 kg

Computerized
No

Automatic
Semi-Automatic

Control System
Mechanical, Manual Operation

Cooling System
Air Cooled

Method
Mechanical Cutting

Voltage
415 V (3 Phase)

Dimension (L*W*H)
1300 mm x 450 mm x 670 mm

Feature
Heavy Duty, Easy Mobility, Low Maintenance

Color
Yellow & Black

Noise Level
Less than 75 dB

Power Source
Electric

Cutting Frequency
32 times/minute

No. of Wheels
4 (for easy transportation)

Input Phase
Three Phase

Cutting Accuracy
1 mm

Suitable Bar Type
TMT, Round Bars, Deformed Bars

Blade Thickness
26 mm

About Steel Bar Cutting Machine 32mm

Cutting Disc Size	4 inch
Max Bar Diameter	32 mm
Motor Power	5-7.5 HP
Cutting Stroke	30-36 cuts/min
Machine Type	Concrete
Capacity	32mm
Operation Mode	Electric
Phase Type	Three Phase
Bar Material	High Tensile
Bar Material	Mild Steel
Bar Material	Stainless Steel
Bar Material	TMT Bar
Usage/Application	Construction
Model Name/Number	87765
Weight	100 kg
Warranty	1 year
Body Material	Mild Steel
Power	Electric
Mobility	Portable
Country Of Origin	Made in India
Power Consumption	Electric

Minimum order quantity: 1 Piece

With the incorporation of contemporary machines and propelled devices in every one of our procedures, we can make and supply a recognized variety of Steel Bar Cutting Machine.

CUTTING CAPACITY (ROUND)	650 MM
CUTTING CAPACITY (SQUARE)	650 x 650 MM
MAIN DRIVE HP	12.5 HP
HYDRAULIC MOTOR HP	2 HP
COOLANT MOTOR HP	0.24 HP
CHIP BRUSH GEARED MOTOR HP	0.25 HP
BLADE CUTTING SPEED	15 - 65 MTR / MIN
BAND SAW BLADE SIZE	6900 x 67 x 1.6 MM
BLADE TENSION	HYDRAULIC
SAW FEED CONTROL	HYDRAULIC
HYDRAULIC TANK CAPACITY (APPROX.)	120 LITRE
COOLANT TANK CAPACITY (APPROX.)	80 LITRE
WEIGHT (APPROX.)	8600 KG
CUTTING TAPER ACCURACY FOR EN-8D	+/-0.3/100 MM
CUTTING LENGTH ACCURACY PER INDEX	+/-0.2 MM
SINGLE INDEXING STROKE	0 - 300 MM
MULTIPLE INDEXING STROKE	9 TIMES
FLOOR SPACE (APPROX.)	4300 x 2900 x 2900 MM

Product Description

Double Coulumn, Horizontal Fully Automatic Band Saw Machine LMG 650 A

Linear Motion (lM) Guide ways and LM block with material feeding system by PLC program, VFD (AC Drive) for blade speed control, Hydraulic clamping, Hydraulic band tension, Hydraulic down feed through Rexroth flow controlvalve and after cutting of material machine automatic stop and main frame go up. Complete Coolant, Hydraulic & Electrical System.

Precision and Power for Construction Needs

Designed for both professional and industrial environments, this bar cutting machine delivers high accuracy and cutting efficiency. With its 3 kW motor, it reliably handles a variety of steel bars up to 32 mm in diameter, providing consistent results for large-scale construction tasks. Manual controls ensure flexibility and precise operation.

Easy Mobility and Operator Comfort

Equipped with four sturdy wheels, this machine is easy to transport around job sites. The noise level is kept below 75 dB, making it suitable for use in busy environments without causing significant disruption. Its ergonomic features are engineered to support smooth and efficient manual operations.

Durable Design and Low Maintenance

Constructed from powder-coated mild steel, the machine resists corrosion and withstands tough site conditions. Air cooling and mechanical control systems ensure reliable, low-maintenance operation, reducing downtime and enhancing productivity for dealers, fabricators, and construction teams alike.

FAQ's of Steel Bar Cutting Machine 32mm:

Q: How do I operate the Steel Bar Cutting Machine 32mm?

A: Operation is straightforward: place the steel bar on the cutting bed, adjust for desired length, and manually control the cutting lever. The mechanical system delivers accurate cuts, powered by a 3 kW motor, with each cycle processing bars up to 32 mm in diameter.

Q: What types of steel bars can this machine cut?

A: This machine is suitable for TMT bars, round bars, and deformed bars, making it versatile for various construction applications. It supports bars up to a maximum diameter of 32 mm.

Q: When should I perform maintenance on the cutting machine?

A: Routine maintenance is minimal, thanks to its low-maintenance design. However, it is advisable to inspect the blade and mechanical parts for wear after prolonged use and to ensure the air cooling system and moving components remain clean and lubricated.

Q: Where is this bar cutter ideally used?

A: Primarily, it is used at construction and building sites for precise steel bar cutting. Due to its portability and easy mobility on wheels, it is also well-suited for warehouses, fabrication workshops, and other industrial settings.

Q: What is the cutting process and how accurate is it?

A: The cutting process is mechanical and semi-automatic. The operator positions the bar and actuates the mechanical lever, which drives the 26 mm thick blade through the bar. Each cut achieves an accuracy of up to 1 mm, suitable for demanding construction standards.

Q: How does the noise level benefit operators?

A: Operating at less than 75 dB, the machine is quieter than many industrial alternatives. This not only creates a safer and more comfortable environment for operators but also reduces noise-related disruptions at the jobsite.

Q: What are the main benefits of using this bar cutter for my business?

A: The key benefits include high cutting productivity (32 cuts/min), portability with sturdy wheels, durability from its powder-coated mild steel construction, and the ability to precisely cut multiple bar types, all while requiring low maintenance and offering easy manual control.
