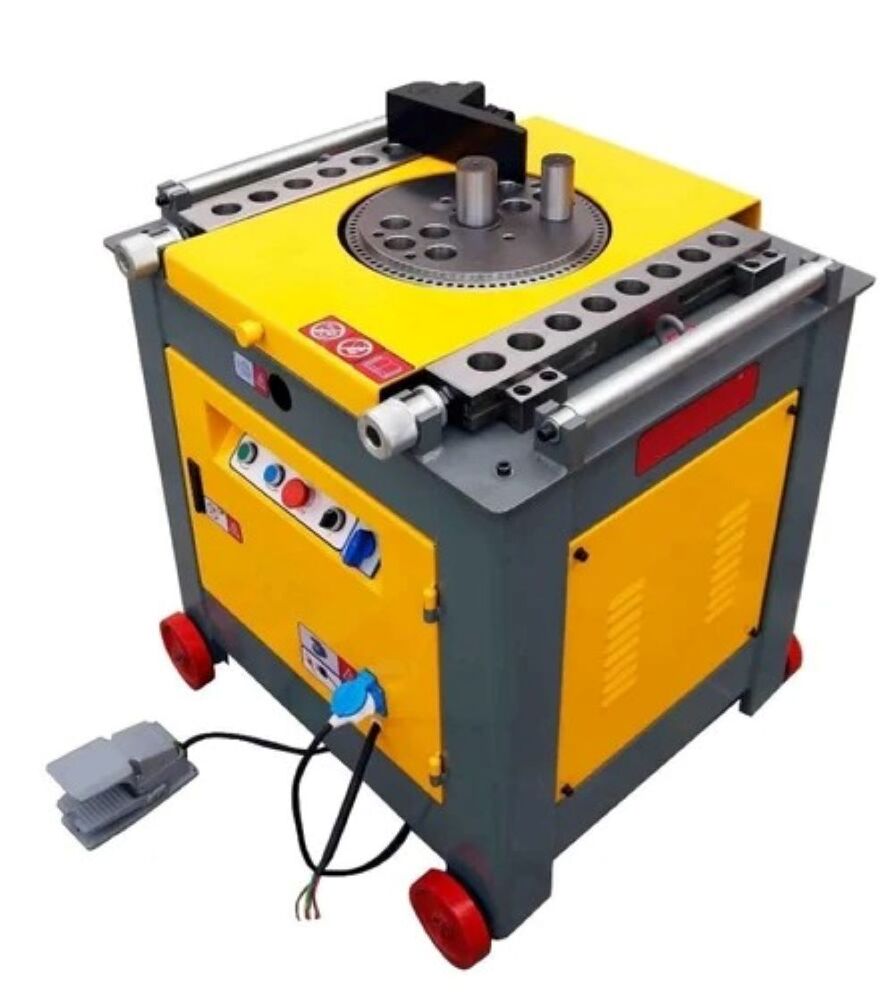

Steel Bar Bending Machine 32mm

Name: Steel Bar Bending Machine 32mm
Brand: SUBITEK
Price: 95000 INR
Availability: InStock

Price 95000 INR/ Number

Get a Price/Quote

MOQ : 1 Number

Steel Bar Bending Machine 32mm Specification

Lifting Height
N/A (not applicable for bar bending machine)

Application
Construction Sites, Building Structures

Motor Power
3 kW / 4 HP

Rated Power
3 kW

Surface
Paint Coated

Lifting Speed
N/A (not applicable for bar bending machine)

Product Type
Steel Bar Bending Machine

General Use
Bar Bending For Construction

Material
Steel, Heavy Duty Steel Frame

Type
Semi-Automatic / Automatic Bar Bender

Capacity
Bends Steel Bars up to 32 mm Diameter

Weight (kg)
360 kg (Approx)

Computerized
No

Automatic
Yes

Control System
Manual/Foot Pedal/Automatic

Cooling System
Air Cooled

Method
Rotary Bending

Voltage
380V/415V/Three Phase

Dimension (L*W*H)
900*800*860 mm (Approx)

Feature
Portable, High Efficiency, Durable Structure

Color
Yellow and Grey

Operation Mode
Manual & Foot Pedal

Protection Features
Emergency Stop, Overload protection

Noise Level
<75 dB

Bending Speed
5-10 seconds per bend

Mobility
Fitted with wheels for easy transportation

Bending Angle Range
0-180 degrees

Power Source
Three Phase Electric

Suitable Bar Types
TMT, Mild Steel, Deformed Bars

Gear System
Alloy steel gears for durability

No. of Bending Shafts
2

About Steel Bar Bending Machine 32mm

Application	Rebar
Max Work Size	Up To 25 mm
Operation Type	Electric
Power	Electric
Automation Grade	Automatic
Suitable Steel Grade	MS
Phase Type	Three Phase
Voltage	230v
Brand	Subitek
Body Material	Mild Steel
Control Interface	Push Button
Country of Origin	Made in India
Product Type	Steel Bar

Minimum order quantity: 1 Piece

Bar Bending Machine has set the standards in Durability and Cost-Effectiveness in the Bar Processing Equipment industry. Ideally used to bend reinforcement bars/rebars in various radius and diameter. This workhorse knows no stop as it can be effectively put to use constantly, round-the-clock. The push-button operation and automatic angle selection permit precise bend at a preset angle making it one step bending process for various forms of bends, which not only saves time and effort but also increases productivity. It is capable of bending bars from dia. 6mm to 40mm, powered with 100% copper wind TEFC Induction electric motor for a precise bend. Oil bathed gearboxes with hardened forged alloy gears provide maximum strength along with brake motor to quickly stop the machine once the bending process is complete.
